Accurate Gas Control Systems, Inc. products

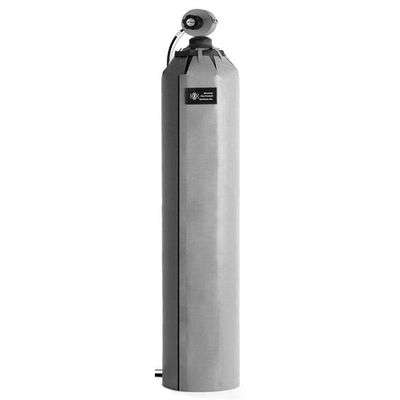

The UniFlow System by Accurate Gas Control Systems is an advanced temperature control system designed for vertical gas cylinders. Initially developed to meet the demands for higher pressure from cylinders containing Silane, the UniFlow System is now widely used across applications requiring high-pressure compressed gases. This system is tailored to deliver precise temperature management, ensuring safety and efficiency in gas pressure control. Its application extends beyond initial uses, serving diverse industries reliant on high-pressure gas solutions. The UniFlow System epitomizes Accurate Gas Control Systems' commitment to innovation in gas control technologies.

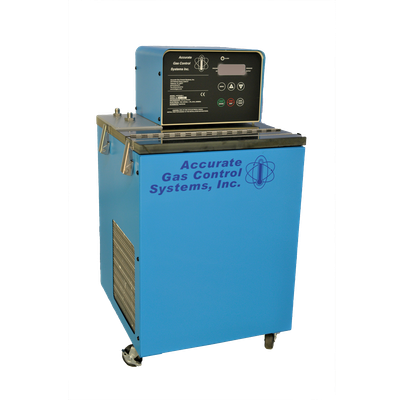

The AGT Recirculator is designed for precise temperature management in various industrial processes. It features a non-CFC refrigeration system combined with a high output heater and a positive displacement pump. This equipment ensures accurate temperature control, maintaining stability within 1°C by adjusting cooling power through a digitally controlled heater. It includes a large reservoir functioning as a thermal flywheel, facilitating ease of access for maintenance and fluid checks. The AGT-Series Recirculators are versatile, adept at removing or adding heat from a remote source across numerous temperature ranges, thereby improving efficiency and reducing water waste when connected to cylinder gas sources. Key applications include temperature regulation for Etch and CVD process gases, vacuum pumps, reactor flanges, mass flow controllers, power supplies, condensers, and turnkey gas delivery systems. Additionally, coupling with the AG-J Heat Exchange Jackets enhances control over gas temperatures in any cylinder type or size.

The AT-REG Regulator, offered by Accurate Gas Control Systems, provides an effective solution for mitigating the Joule Thompson Effect, commonly referred to as regulator 'icing'. This phenomenon can severely affect the performance of gas regulators such as the AP-1410, AP-1510, and Mass Flow Controllers. By integrating the AT-REG Regulator with the AT-NEA Controller, the system delivers a reliable heating solution, ensuring optimal performance of the regulators under various conditions. This system is essential for maintaining efficiency in applications where the Joule Thompson Effect is prevalent, offering a robust method to prevent freezing, which can compromise safety and functionality.

The AccuTrace Heat Trace System is designed to effectively tackle gas condensation issues by providing sophisticated temperature regulation. This system can function independently or be integrated with AG Systems or other hosts to address various challenges such as gas condensation and exhaust line bake-out. At its core, the system includes a heat output cable linked to a control system, a temperature sensor for monitoring gas line temperatures, and a controller that modulates power to the heating cable to sustain desired temperature levels. The system employs self-regulating heat trace cables such as the AT-BTXG and AT-UTXG Series. These cables feature a tinned copper braid and thermoplastic elastomer jacket, adhering to NEC code 427-22 and 427-23 standards for grounded metal coverings. The AccuTrace offers different power options, with AT-BTXG having outputs of 3, 5, and 10 watts per foot and AT-UTXG accommodating 5, 10, and 15 watts per foot, demonstrating versatility for various industrial applications.
