Aceinna, Inc. products

The ACEINNA OpenIMU330B is a triple-redundant 6 Degree-of-Freedom surface mount Inertial Measurement Unit (IMU) designed for use in automotive Level 3 ADAS and other high-volume applications.  The triple-redundant architecture combined with the small, low-cost packaging is intended to meet the challenging performance, reliability and cost requirements of the automotive market.

The ACEINNA OpenIMU300ZA is an easy-to-use high-performance 9 DOF open source inertial platform. The OpenIMU300 features a precision 3-Axis Accelerometer, low-drift 3-Axis Rate Gyro, and 3-Axis Magnetometer. The low-power platform is powered by a 168MHz ARM M4 CPU with a Floating Point Unit. The OpenIMU300 runs the OpenIMU open-source stack that includes an optimized full-state Kalman Filter for Attitude and GPS-Aided Position-Velocity-Time (PVT) measurement. A free tool-chain based on VS Code supports PC, MAC, Ubuntu.

The INS1000 is a state-of-the-art, high performance integrated navigation system with built-in GNSS and inertial sensors. It offers dual frequency RTK and tight coupling between GNSS and inertial sensors, to provide cm-level accuracy, enhanced reliability, and superior performance. The Automotive Dead Reckoning (ADR) solution delivers strong performance in GNSS challenged urban environments.

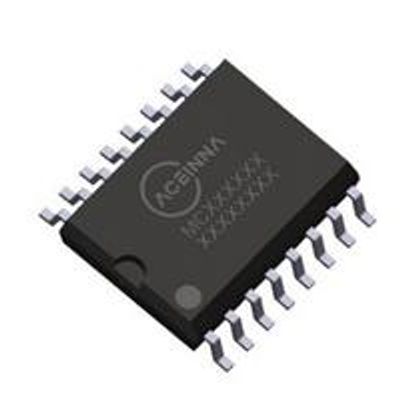

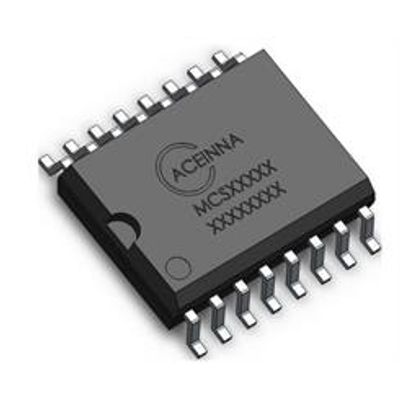

The MCA1101-50-5 is part of Aceinna’s new generation of fully integrated, isolated, current sensor ICs that provide industry benchmark performance for accuracy, bandwidth, and step response time.  With total error as low as 1.5% (typ), 3dB bandwidth of 1.5MHz with low phase delay, and

The MCR1101-50-5 is part of Aceinna’s new generation of fully integrated, isolated, current sensor ICs that provide industry benchmark performance for accuracy, bandwidth, and step response time.  With total error as low as 1.5% (typ), 3dB bandwidth of 1.5MHz with low phase delay, and

The MCA1101-50-3 is part of Aceinna’s new generation of fully integrated, isolated, current sensor ICs that provide industry benchmark performance for accuracy, bandwidth, and step response time.  With total error as low as 0.7% (typ), 3dB bandwidth of 1.5MHz with low phase delay, and

The MCR1101-50-3 is part of Aceinna’s new generation of fully integrated, isolated, current sensor ICs that provide industry benchmark performance for accuracy, bandwidth, and step response time.  With total error as low as 0.7% (typ), 3dB bandwidth of 1.5MHz with low phase delay, and

The sensing element is monolithically integrated with CMOS signal processing circuitry and embedded software capable of converting gas flow rates to a digital or analog output with very high repeatability.  The module has very low operating power consumption for optimal power management in portable applications. This version is externally powered, up to 5.5V (3.3V typ.). I2C digital output is standard.

MDP200 series offers a wide dynamic range, superb long-term stability, and outstanding repeatability and hysteresis. The MDP200 is also available as a low cost flow detector with an analog output and it can easily be configured to suit a variety of applications from burner control, HVAC, medical flow to industrial processing control.
