Acoustiblok products

Acoustiblok is the name of both our company and our “Flagship” product. This product is used as a sound isolation material. It is typically installed before walls, ceilings and floors have been completed, thereby enhancing the Transmission Loss (TL) of these standard assemblies.

Performance: QuietFiber material is specifically engineered to tackle the frequencies of sound that are critical for noise reduction. QuietFiber’s Noise Reduction Coefficient (NRC), ranges from 1.0- 1.25 depending on the version (Q2, Q4 or Q6). An NRC rating of 1.0 or higher means there are no reflections off of the material. Any material with an NRC that is greater than 0.50 is considered to be sound absorbing. If the NRC is less than 0.20, the material is considered to be sound reflecting. If the material has an NRC rating of say 0.60, it would have about 40% reflections off of the material. As a result, NRC materials are typically used for reflection control in spaces with high Reflection or Reverb Times (RT’s).

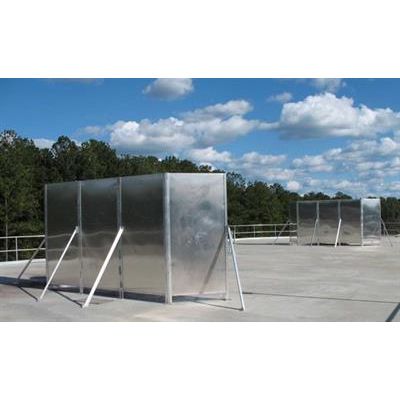

Our patented All Weather Sound Panels give you high sound transmission loss coupled with high sound absorption, all in a weather resistant package. We engineered these incredibly durable and easily maintained panels specifically to resist the most rigorous industrial uses and outdoor environments. The panels present an amazing profile of just 2”. We produce them in four standard rectangular sizes, but can custom make them in any size, provided the shape is square or rectangular.

QuietFiber material is specifically engineered to tackle the frequencies of sound that are critical for noise reduction. QuietFiber’s Noise Reduction Coefficient (NRC), ranges from 1.0- 1.25 depending on the version (Q2, Q4 or Q6). An NRC rating of 1.0 or higher means there are no reflections off of the material. Any material with an NRC that is greater than 0.50 is considered to be sound absorbing. If the NRC is less than 0.20, the material is considered to be sound reflecting. If the material has an NRC rating of say 0.60, it would have about 40% reflections off of the material. As a result, NRC materials are typically used for reflection control in spaces with high Reflection or Reverb Times (RT’s).

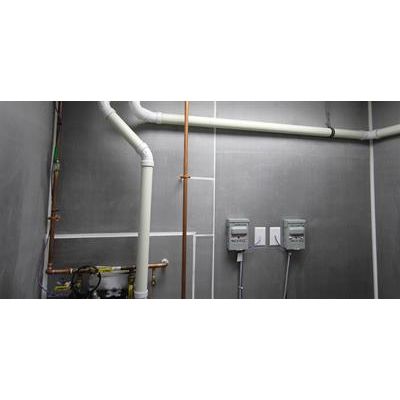

AWC is a very unique surface mounted version of Acoustiblok material that reduces sound transmissions through walls. AWC is approximately ¼” (6.35mm) thick and comes in a sheet that’s 4’ x 8’in size. The exposed surface is a woven silver fabric that can be finished like drywall in a number of textured, painted, or wallpapered finishes.

QC-2 is the model for our “Quiet-Cloud”. We have created a high performance, sustainable and versatile solution for reflection build-up and reflection control. A sound panel that can withstand harsh environments while absorbing more sound/noise than most commercial and residential sound panels.

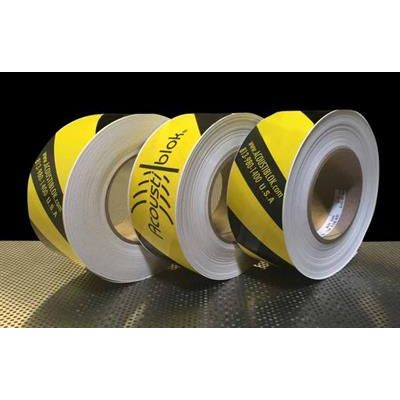

AGT-60 is the model for a portion of our bonding system. This is a 2” wide tape with a proprietary adhesive that is formulated to maintain adhesion to our Blok 16 and Blok 32 isolation material. This is used in conjunction with our AC-10 and AC-28 Acousticaulk sealant. AGT-60 & Acousticaulk are required for an Acoustiblok sound reduction system installation.

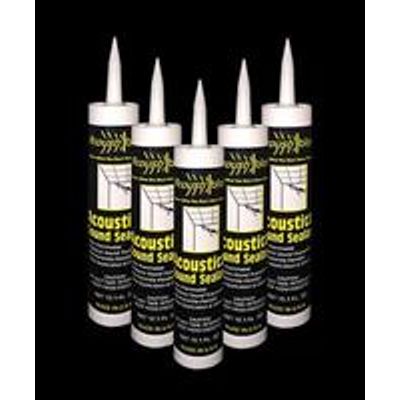

Acousticaulk is a portion of our bonding system. Available as AC-10, (a 10 oz. residential tube) and AC-28, (a 28 oz. commercial tube), our sealant is formulated to create a sustainable, flexible bond between two layers of Blok 16 & Blok 32 isolation material.This prevents air leaks and air gaps in our sound barrier. Acousticaulk may also be used to create a seal between Acoustiblok and metal, plastic, glass and other types of construction materials. Acousticaulk remains soft, malleable and generally resilient. This aids in reducing flanking transmissions from vibrational energy present in ridged materials.

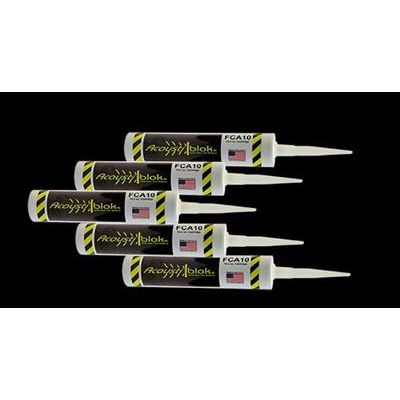

FCA-10 is a very unique, specific formulation used to permanently adhere or laminate Acoustiblok to wood, metal and several other types of materials. FCA-10 is not a contact cement. It is waterproof and tacks very quickly. Drying time is dependent on exposure to oxygen. Edges of treatment areas will set up quicker then the inside. 100% cure time is about 24 hrs as long as air is exposed to the entire treatment area.

PPD-7 is the model for our putty pads. They are essential in sealing off wall, ceiling and floor assemblies that have electrical penetrations. These moldable 7” x 7” pads are easily wrapped around the back of any electrical box before your assemblies gets closed up. They seal off any small air gapes as well as increasing the STC of the penetration.
