ActuatorZone Inc. products

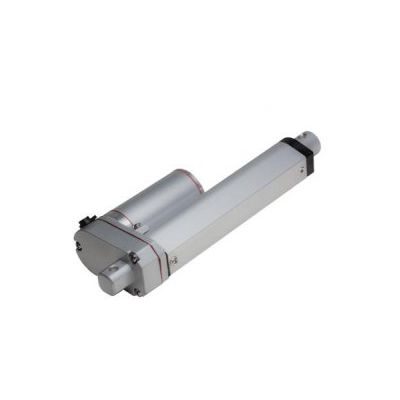

The PA-03 Linear Electric Actuator packs a powerful punch in a small package. Perfect for medium to high force applications, this model is used for a wide variety of projects and applications. This DC, 12V powered unit can take battery power or AC power when combined with a control box or power converter. With stroke sizes ranging from 2”-24”, forces of 200lbs and 600lbs, and speeds of 0.39”/sec and 1.60”/sec, this actuator is versatile, powerful and reliable. Every electric linear actuator we carry in the drop down menu above is in-stock, available and ready to be shipped out when you place your order.

The PA-14 mini actuator brings all of the utility of a full-size actuator, but in a smaller, more efficient package. They’re ideal for any project where space or weight is at a premium.  These reliable, compact actuators come in forces of 35lbs, 50lbs and 150lbs, stroke sizes ranging from 1`-40` and speeds of 0.59`/sec, 1.18`/sec and 2.00`/sec.  All the miniature actuators you see in the drop down menu are available and ready to be shipped out when you place an order.

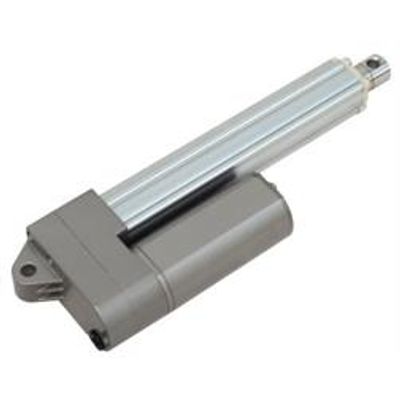

The PA-09 Mini industrial linear electric actuators are a new and improved design of our PA-16 models and are used among a wide array of industries for a variety of functions. Our mini industrial linear actuator gives you a solid 330 lbs of force along with 2-40 inch stroke sizes and a speed of 0.27”/sec. Everything that you find in the drop down menu is available, and ready to be shipped out when you order.

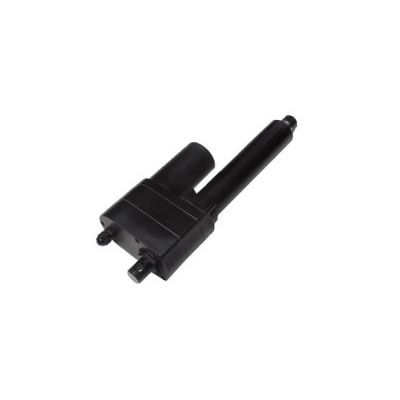

Our PA-17 industrial linear actuators are there when you need power and force, all packaged in the convenient actuator form. These heavy pushers are perfect for industrial and engineering applications, and can lift thousands of pounds without effort.  The units got 850lbs or 2,000lbs of force available, with stroke sizes ranging from 1`-24` and speeds of 0.33`/sec and 0.66`/sec, making it a durable, reliable automation solution.  Everything that you see on our drop down menu is in-stock and ready to ship right the way.

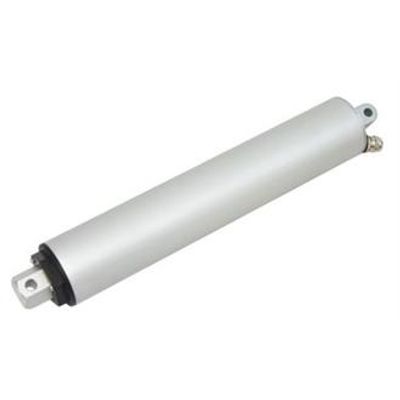

High speed linear actuators are tubular shaped, and painstakingly engineered for high speed applications with a diameter of just 2.13”. These speedy actuators are ideal for anywhere a fast push is needed. This actuator also runs quiet, and includes a two wire harness that allows you to control direction by reversing polarity.

The PA-30 is a compact control box that allows control of multiple linear actuators at the same time. It has 2-channels and comes with two FCC approved wireless hand remotes that offer up and down control. It can be found in the fields of robotics, hobby design as well as automotive automation and its small size makes the installation process simple. It is compatible with all our linear actuator models. Please note that parallel control does not mean synchronized control.

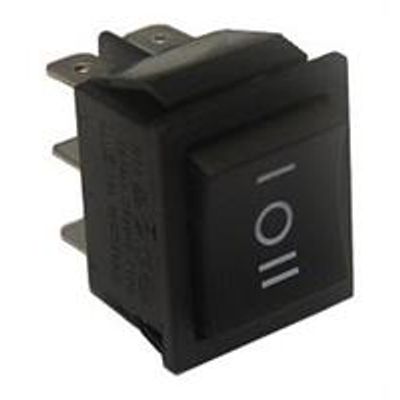

The RC-01 is an affordable solution for easy linear actuator control. This rocker switch is a non-momentary switch with three positions: up, down and pause. The RC-01 Rocker Switch is safe for use outdoors and comes with an 18-month warranty, like all our products. Use our wiring diagram to wire a rocker switch to the actuator(s).
