AEMC Instruments products

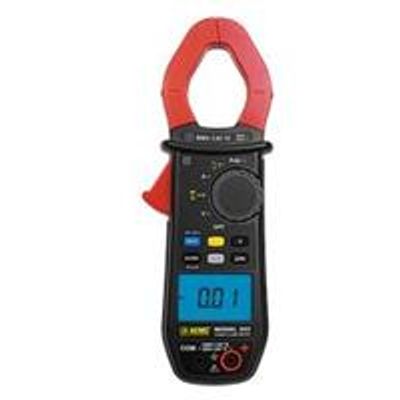

The True RMS Clamp-On Meter Model 203 is safety rated at 600V CAT IV. It measures AC+DC volts and amps, frequency, continuity, resistance, and temperature (with the supplied K thermocouple probe). The Model 203 can also perform diode checks. Its Adapter mode displays external sensor inputs. The Delta relative function compares new measurements to a reference value, and the MIN/MAX function tracks high and low values. This compact and rugged meter can operate in the most demanding work environments, and its IP54 rating allows it to withstand both dust and water spray.

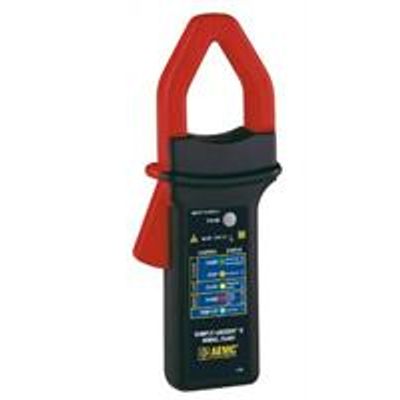

The Simple Logger II Model CL601 is a one channel recording device with an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. It records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals. This logger can perform a variety of recording tasks with easy and intuitive setup from a computer using the free DataView^® software included with the unit.

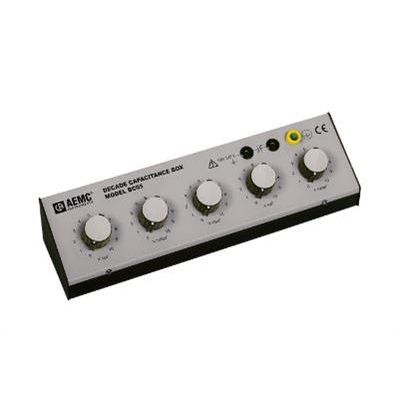

The Capacitance Decade Box Model BC05 is built into a metal bench top box. It is used for testing and calibration of test equipment. The main function of the Model BC05 is to create a capacitance with a specific value by using a combination of the rotary decade switches. The Model BC05 has five decade ranges. The Model BC05 is equipped with Ø 4mm safety terminals for connections. It is designed to EN 61010-1 safety standards. Includes ground jumper lead.

The Model 5231 is a rugged, economical TRMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV. The Multimeter Model 5231 provides a Volt, Ohm, Continuity, Diode function, as well as an AC voltmeter function with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit.  It performs AC/DC direct reading current measurements up to 600A with a current clamp accessory plugged in.

The Lightmeter Model 1110 is a portable, easy-to-use instrument which features optical sensors that are designed to match the response of the human eye, making them ideal instruments for workspace analysis and planning. The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using supplied DataView^® software. The ergonomically designed case, large display and intuitive function selection make this instrument the right choice for any application. The Lightmeter Model 1110 is designed for simple one-hand operation. It provides selectable lux or footcandle units for display and features a blue luminescent backlit display, MIN/MAX/AVG and HOLD functions.
