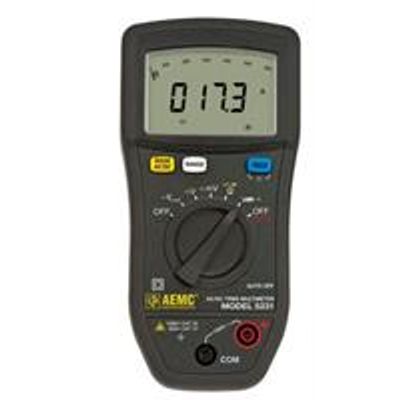

AEMC - Model 5231 -Digital Multimeter
The Model 5231 is a rugged, economical TRMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV. The Multimeter Model 5231 provides a Volt, Ohm, Continuity, Diode function, as well as an AC voltmeter function with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It performs AC/DC direct reading current measurements up to 600A with a current clamp accessory plugged in.
The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.
The Model 5231 is ideal for electrical installers, electricians and heating or air-conditioning specialists.
- Counts 6000
- Voltage AC/DC 1000VAC/600VDC
- Current AC/DC 600AAC/DC (with 1mV/A clamp)
- Bandwidth AC 1kHz
- Resistance 60MΩ
- Continuity <20Ω+3Ω
- Non-Contact Voltage >90V
- Diode Test Yes
- VLowZ Yes
- Display Digital with 61-segment analog bargraph and backlighting
- Dimensions (HxWxD) 6.1 x 2.95 x 2.17" (155 x 75 x 55mm)
- Weight 11oz (320g)
- Power Source 9V alkaline battery
- Battery Life >100 hours
- Operating Temperature -4° to 158°F (-20° to 70°C)
- Storage Temperature -32° to 122°F (-35° to 50°C)
- Pollution Degree 2
- Ingress Protection (IP) IP54
- EMC EN 61326/A2:2001
- Safety Compliance IEC/EN 61010-1,1000V CAT III, 600V CAT IV
