Designed to be installed on the wall or on a rolling shutter casing, the EHT humidity sensitive air inlet is an ideal alternative to window-mounted air inlets. It thus solves the problem of lack of space on windows. With accessories, it provides a high level of acoustic protection, up to 52 dB attenuation. A closing device and an airflow controller can be used to protect from cold weather and strong winds.

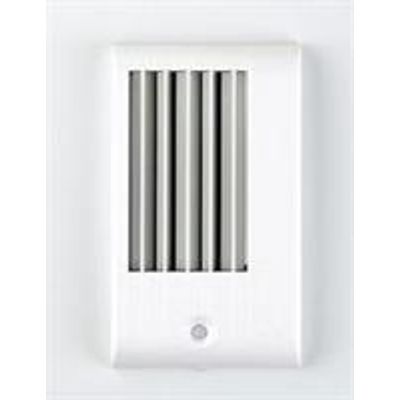

The stylish design of the EHA² air inlet enables perfect integration on most windows or rolling shutter casings. With the inclusion of high efficiency acoustic foam the product reaches an acoustic attenuation of up to 42 dB when mounted with the special base and canopy. An optional device allows on demand manually closing or opening of the air inlet, complementing the humidity sensitive function available on the EHA².

The BXC incorporates all of the functions one could want in an air exhaust unit: various activation modes, such as humidity sensitive, presence detection, switch, and even CO2 are available to adapt the ventilation to occupants` needs. The exhaust airflow is automatically modulated, in silent operation. The range of variable airflows can be set at installation to meet special needs, or to compensate for a lack of pressure; commissioning is also facilitated by the presence of a pressure plug, which allows measurement and easy calculation of the airflow.

The G2H is the first exhaust unit precisely optimised for natural (passive stack) and hybrid ventilation, in both new buildings and renovations. By providing both automatic control of the airflow according to needs and auxiliary airflows (manual or automatic), the G2H exhaust unit advantageously combines energy efficiency and indoor air quality. It offers a very large air cross-section to ensure the airflow even at a very low pressure, from 2 Pa. It is particularly easy to install, since it fits perfectly on collective or individual ducts designed for natural or hybrid ventilation.

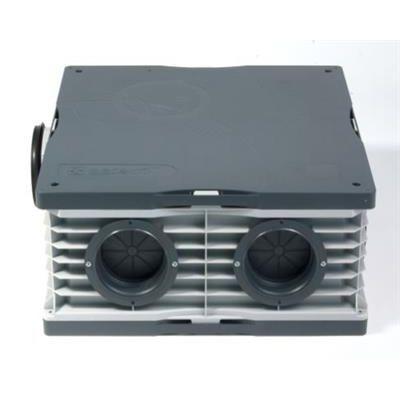

The V5S fan can ventilate a complete dwelling: the 6 available side inlets can be connected to several exhaust units in the wet rooms. With its constant pressure, the fan is well suited to demand controlled exhaust units. The V5S completes the existing line of Aereco fans for individual treatment (the V2A, V4A Premium, and VAM), with comparable features such as a flat design (for installation in a cupboard or in a false ceiling), robust construction, and ease of maintenance thanks to a removable cover. In addition, its large box optimises its aeraulic performance and the energy consumption of the motor. It can be installed in the wet rooms, or in an insulated attic, on the floor, on the ceiling, or on the wall. The V5S exists in two versions: with an EC motor (V5S “Premium”) or an asynchronous motor (V5S “Reference”).

If the units used for exhaust are the same as those used in Aereco’s mechanical exhaust ventilation system, the airflow supply in the DX System "Excellence" is controlled by a specific device: the DX Hub distribution box. Using up to 5 or 6 demand controlled dampers connected to supply units, it allocates the airflow in each room according to the data received by CO2 or presence sensors located in bedrooms and in the living room. An additional valve* is integrated to ensure the balance between total exhaust and supply air. Both Hub 5 and Hub 6 are compatible with the Excellence version of DXA and DXR heat recovery units.

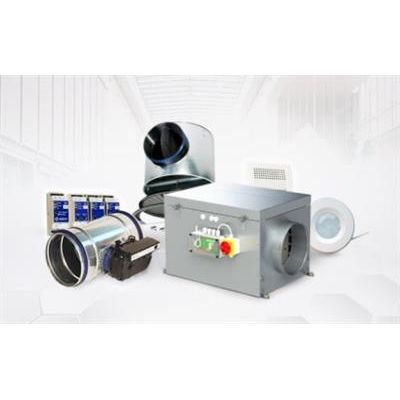

The VMX is a unique intelligent ventilation system for non-residential sector (restaurants, schools, offices, meeting rooms…). This system is easy to install both in the new built and the refurbishment buildings. The VMX automatically modulates the ventilation on the basis of information received from the detectors that measure CO₂ concentration, movements or detect presence. Thus, the air supply and exhaust flow rates are then matched to the true needs of the rooms functioned of the occupancy, reducing thermal losses and optimising electrical fan consumption. The VMX system is an affordable solution conciliating energy performance, indoor air quality and acoustic comfort that enhances rooms’ occupant comfort.

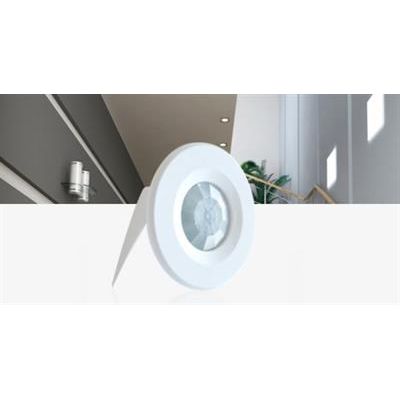

One of the biggest challenges, that we are encountering today is the balance between comfort, security and the efficiency of energy. When it comes to occupants’ comfort in an indoor area, both residential as well as non-residential markets, the building constructors are providing a best in class experience for the occupants with well-equipped building automation solutions. Indeed, the occupancy sensors helps to control different types of appliances such as ventilation, air conditioning, alarms etc... according to the presence of the occupants inside the building. This provides many benefits such as low energy consumption, less carbon dioxide emissions, life-span extension of devices and decrease in electricity cost.

External air inlet canopies protect the elements of the frame (windows, casings) hosting the air passage holes against bad weather and water infiltration. Their role is also aesthetic: they blend in perfectly with the frontage and windows. They can also perform such functions as soundproofing, insect protection, etc.
