Aereco - Model EHA² - Acoustic Humidity Sensitive Air Inlet for Windows
From Air Inlets

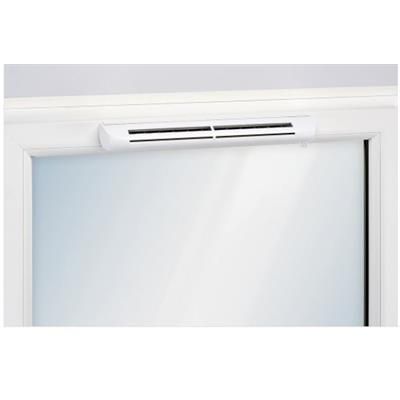

The stylish design of the EHA² air inlet enables perfect integration on most windows or rolling shutter casings. With the inclusion of high efficiency acoustic foam the product reaches an acoustic attenuation of up to 42 dB when mounted with the special base and canopy. An optional device allows on demand manually closing or opening of the air inlet, complementing the humidity sensitive function available on the EHA².
- Humidity sensitive system: modulates the airflow according to the local relative humidity rate.
- Acoustic attenuation up to 42 dB with accessories.
- Optional closing and opening device.
- Slim profile for easy adaptation on windows.
- Easy to maintain: no adjustment, simple yearly dusting.
The oblique air jet of the EHA² skims the ceiling ensuring progressive heating of fresh air for the improved comfort of the occupants.
This device is available on versions 5-35 (humidity sensitive) and 35 (without humidity control); it enables the occupant to choose between three modes: minimum, automatic (humidity sensitive) or maximum airflow. The device can be added after the product is installed.
When installed on its acoustic base and with acoustic external canopy (A-EHA), the EHA² air inlet offers great acoustic attenuation, up to 42 dB at maximum opening, which makes it one of the best products available on the market with an air cross section this size (3600 mm²).
