Aeron Systems Private Limited products

Aeron’s Octantis 2 AHRS is a tactical class Attitude and Heading Reference System for airborne applications. The model OCT2 AN5300S AHRS has been designed as per the DO-254 standards and qualified as per MIL-STD-461E and MIL-STD-810G standards. The AHRS software has been tested through a rigorous IV&V process and certified as per DO-178B level B standards. The AHRS system has been accorded the CEMILAC (Indian Airworthiness) certification. The unit meets the performance requirements as per the RTCA-DO-334 standard.

The Octantis 2, OCT2-NS6300S is a rugged Inertial Navigation System, equipped with a high-end tactical class IMU and qualified to MIL-STD-810G & MIL-STD-461E standards incorporating vibration and EMI rejecting features in design. The Octantis 2 INS features Aeron’s KF based parameter estimation engine which delivers superior GPS independent position performance. The NS6300S includes an integrated multi-constellation (GPS/GLONASS/ GALILEO) GNSS receiver with SBAS (GAGAN/QZSS) augmentation.

The Octantis 2, OCT2-NS6500T is a rugged Inertial Navigation System, equipped with a high-end tactical class IMU and qualified to MIL-STD-810G & MIL-STD-461E standards incorporating vibration and EMI rejecting features in design. The Octantis 2 INS features Aeron’s KF based parameter estimation engine which delivers superior GPS independent position performance. The NS6300S includes an integrated multi-constellation (GPS/GLONASS/ GALILEO) GNSS receiver with SBAS (GAGAN/QNSS) augmentation.

Aeron’s Micro-miniature Pollux 2 INS is a family of compact Inertial Navigation Systems. The system runs Aeron’s proprietary Kalman filter based parameter estimation engine offering near tactical performance providing superior estimates of navigation parameters including position, velocities, attitude and heading. Pollux 2 features tri-axial MEMS solid state accelerometers, tri-axial gyroscopes, barometer for altitude measurement and magnetometer for heading measurement and an integrated multi-constellation GNSS.

Aeron’s Micro-miniature Pollux 2 INS is a family of compact Inertial Navigation Systems. The system runs Aeron’s proprietary Kalman filter based parameter estimation engine offering near tactical performance providing superior estimates of navigation parameters including position, velocities, attitude and heading. Pollux 2 features tri-axial MEMS solid state accelerometers, tri-axial gyroscopes, barometer for altitude measurement and magnetometer for heading measurement and an integrated multi-constellation GNSS.

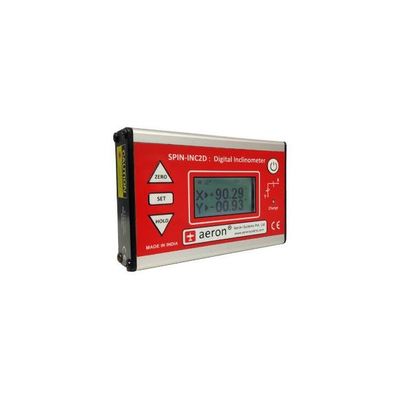

The INC2D is a light weight, ergonomically designed digital inclinometer with graphical LCD display and laser alignment. It can measure inclination angles both (X and Y) axes with ±90 ° measurement in X axis and ±60 ° in Y axis. INC2D determines inclination by measurement of gravity vector using triaxial MEMS accelerometer. These in conjunction with the filtering techniques give accuracy of ±0.3 ° (1σ) with a resolution of 0.01 °.

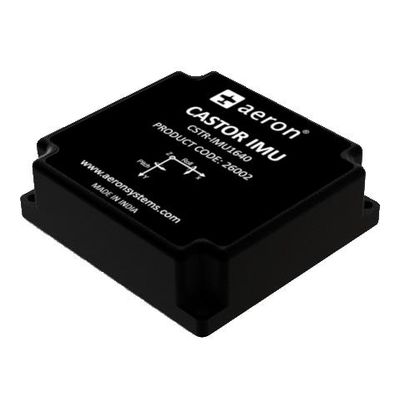

The Castor series IMU1640 is a high-end tactical class inertial measurement unit consisting of high-performance triaxial MEMS Accelerometer, triaxial Gyroscope and triaxial Magnetometer sensors based on latest MEMS technology. The IMU is equipped with a high-speed processor that runs superior signal processing algorithms delivering control grade inertial measurement data. The IMU output is available over a digital SPI interface. Its rugged and modular design makes it suitable for integration with control computers and other application hardware.

GALILEO DMC300 is a versatile, low powered and compact digital magnetic compass. The device measures magnetic heading with high accuracy, and is suitable for land and marine applications. DMC300 comprises triaxial solid state MEMS accelerometer and magnetometer sensors. Accelerometer is used to measure the roll and pitch in near-static conditions and magnetometer is used for estimation of heading. The roll and pitch measurements are used for tilt compensation of heading angle. The DMC300 runs a proprietary digital filter for noise reduction and computation of heading information even under dynamic conditions. DMC300 is a plug-and-play device with configurable update rates and RS232 and RS485 interfaces. DMC300 is most suited for compassing, surveying, antenna orientation and other direction sensing applications.

XTREME  is a family of powerful smart dataloggers which can acquire measurements from multiple sensors over various analog and digital interfaces. Communicating data securely to the cloud (via Ethernet/ Wi-Fi / LTE) for real-time data monitoring. XTREME  is capable of sensor sampling at the rate of 200Hz with industry’s leading ADC which has a resolution of 24 bit (>20ENOB) ensuring precision data acquisition. The device comes with external storage of 32GB which can store 1000 parameters for 3 months (with a logging interval of 1 min), thus mitigating the possibility of any data loss. XTREME  family dataloggers run a high-speed processor with the capability of edge computing of AI-based IIoT applications. It enables easy access to logged data through web page accessible in local and remote networks and quick data downloading to a pen drive.

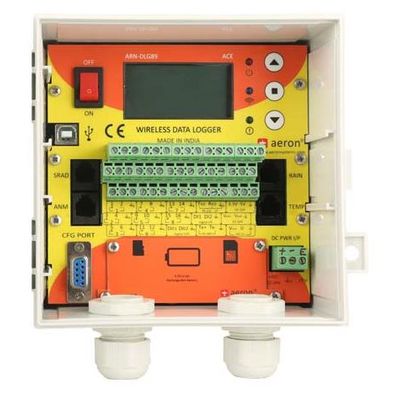

DLG89 is a versatile precision wireless data logger from the ACE family of loggers for outdoor applications. The DLG89 logger offers 24-bit Analog to Digital conversion for analog signals. Ultra-high resolution ADC ensures precise data capturing from micro-volt output sensors. DLG89 data logger takes periodic measurements from a diverse set of sensors connected with it. The acquired data is processed and sent to the cloud, along with that, the data is stored in the SD card memory. The secure transmission of data to a cloud server is done using an integrated GSM modem. The logger also has a USB interface which can be connected with a laptop for data retrieval.
