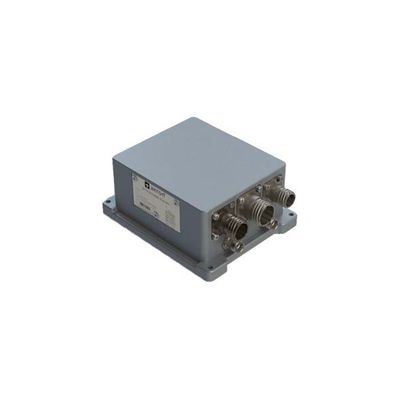

Octantis - Model NS6500T -2 Inertial Navigation System
The Octantis 2, OCT2-NS6500T is a rugged Inertial Navigation System, equipped with a high-end tactical class IMU and qualified to MIL-STD-810G & MIL-STD-461E standards incorporating vibration and EMI rejecting features in design. The Octantis 2 INS features Aeron’s KF based parameter estimation engine which delivers superior GPS independent position performance. The NS6300S includes an integrated multi-constellation (GPS/GLONASS/ GALILEO) GNSS receiver with SBAS (GAGAN/QNSS) augmentation.
The Octantis 2, OCT2-NS6500T is a next generation GNSS-aided MEMS based Inertial Navigation System which offers high-end tactical class performance. The OCT2-NS6500T has a dual antenna/dual GNSS configuration that enables GNSS compassing. The built-in low noise magnetometer is a redundant heading estimation source in GNSS denied/poor visibility conditions. In addition to being accurate in high dynamics, the OCT2-NS6500T gives accurate GPS heading even in static or low dynamic conditions for antenna orientation, pointing and, land and marine navigation applications.
Dual Antenna GNSS Compassing
Provides GNSS heading in static and dynamic conditions
Tactical class IMU
0.8 deg/hr bias helps to provide accurate position data in GPS denied conditions
Static and Transfer Alignment
Static and Transfer Alignment
High Shock Resistance
Shock Resistance up-to 40 g
Rugged Design
MIL-STD-810F/G, MIL-STD-461E/F and JSS 55555 Compliant
Accepts External Aiding Input
External odometer aiding to arrest the position drift in GPS denied conditions
Precise attitude & Heading
To enable its use in vehicle navigation
Configurable Platform settings
Configurable Platform setting for Aerial/Land/Sea
Isolated Interfaces and Power Supply
Isolated Interfaces and Power Supply
