AGC Instruments Ltd. products

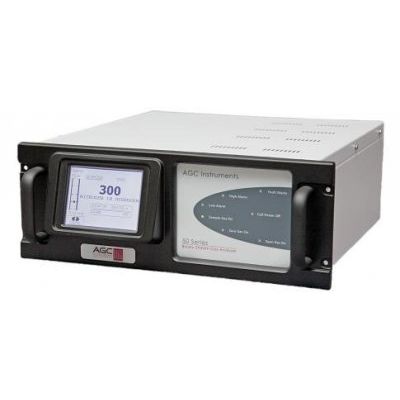

Using the AGC High Sensitivity Thermal Conductivity Detector (TCD), the 50 Series Continuous Gas Analyser is customised to meet your exact requirements. This range of Binary Stream Gas Analysers contains a temperature controlled Thermal Conductivity Detector (TCD) which enables it to be used in continuous monitoring applications with minimum zero drift, excellent stability and excellent results.

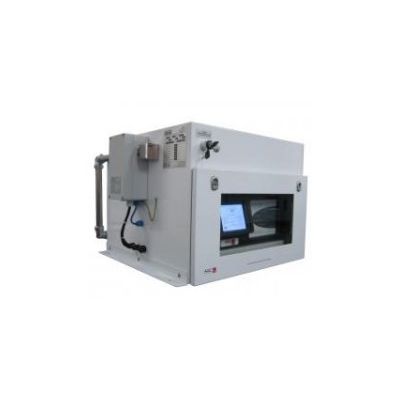

The Series 5X00-PZ analyser is for use in hazardous Zone 1 and Zone 2 areas. Housed in a purged enclosure under the control of Gönnheimer Purge Controllers, the ATEX units have ‘Ex-Protection Bypass’ controls. The enclosures contain a custom-designed tray which slides out for easy access to the AGC Series 50 Analyser inside.

For % measurement of two gases, the 20 Series Binary Stream Gas Analyser is the workhorse unit which is easily adapted for the many applications that they need to be used. If you want an instrument for non-continuous analysis of a binary mixture in an Industrial Gas process, or a gas mixing application to identifying the contents of a gas cylinder, then the 20 Series Gas Analyser using the latest Thermal Conductivity Detector (TCD) is most suitable. For more information on our 20 Series Binary Stream Gas Analyser please contact us directly.
