Aircon Corporation products

Not only does Aircon make ductwork, it makes a lot of ductwork. In addition to regular welded or lockseam pipe, Aircon makes clean-out doors, elbows, transitions, and reducers. We also custom fabricate fan exhaust stacks to customer specifications.

From diameters of 3` and up, Aircon angle rings are the most reliable and versa- tile way of connecting ductwork and related fittings. They are essential on both very small jobs as well as on massive links between equipment filtering air in the hundreds of thousands of CFM.

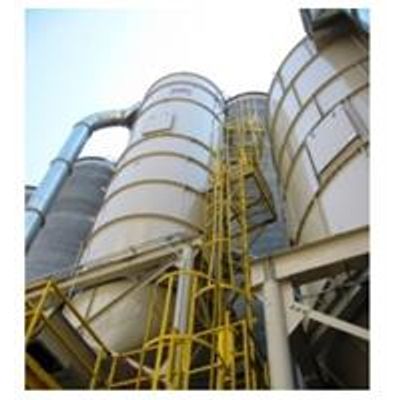

Between the footpads of any dust collection device and the ground is a very ,important assembly of columns, beams, plates, and crossbraces. Aircon can ,design, fabricate, and install the support and structural steel tailored to the ,size restraints of your facility.

For the abrasive dusts often encountered in wood products plants or grain elevators, Aircon often uses long-radius, flat-back elbows with a special liner material. This liner Material can be replaced without disassembling the elbow from the line. For more in Formation regarding other specialty products for the grain industry, such as zipper duct, Belt conveyors, and elevator leg filters, please contact our engineering department.

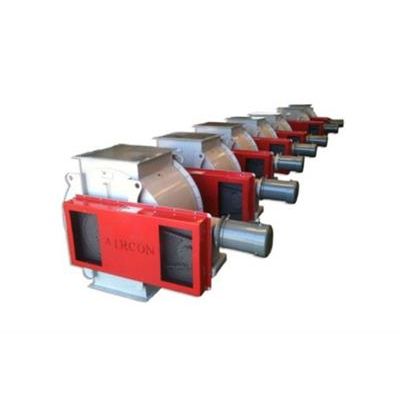

The Aircon `Flex Air` valve was designed for use as airlocks, pneumatic feeders on conveying systems, or as product metering devices.  Available in eight sizes, the valves can maintain an air seal at pressures or vacuums up to 17` WG (water gage).  A precision fabricated valve, the `Flex Air` features a one piece, full pocket, double wiper design. This design makes it possible to create the best air seal with flexible edge rotors. Aircon `Flex Air` Valves are ideal for use in industries such as woodworking, metalworking, grain, paper and many more.

Below Roof Separators are highly suited for the plant that wants conditioned air to remain indoors as well as eliminate any outdoor maintanence concerns. Moving indoors can save valuable resources and extra expense.

Standard Features; 12 gauge mild steel bolted construction to operate up to +/- 17` [wg]. Lifting lugs on clean air plenum. 4` or 6` SCH 40 pipe header for compressed air reservoir. Internal compressed air hard piping. 3/4` or 1` diaphragm valves. Blower outlet and header orientation per job. NEMA 4 sequence timer enclosure. 3/4` NPT thermocouple coupling in plenum. Magnehelic¨ differential pressure gauge. Unit painted Aircon gray with rust-inhibitive primer on both interior and exterior surfaces. Fabricated grating in bottom of unit to facilitate bag removal. 16 oz. singled polyester, copper wire grounded, bottom-removal. bags with quick-release, stainless steel clamp bands. Bottom-removal galvanized bag cages with aluminum venturies. Hinged access door on side wall.

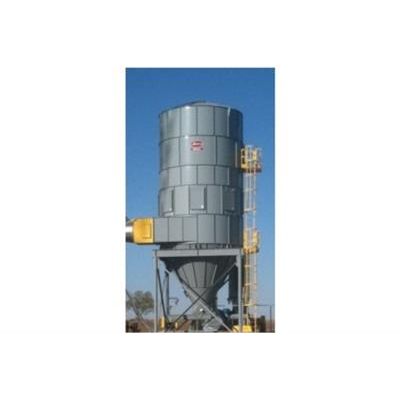

Standard Features; 10 or 12 gauge steel bolted construction. Lifting lugs on clean air plenum. Handrail surrounding plenum. 4” or 6” SCH 40 pipe header for compressed air reservoir. Removable internal compressed air hard piping. 3/4”, 1” or 1 1/2” diaphragm valves. NEMA 4 sequence timer enclosure. Sprinkler coupling in plenum. 3/4” NPT thermocouple coupling in plenum. Magnehelic® differential pressure gauge mounted on plenum. Unit painted Aircon gray with rust-inhibitive primer on both interior and exterior surfaces. 16 oz. singled polyester top-removal, snap-in bags with copper ground wire. Top-removal galvanized bag cages. Top-removal plenum access doors. 60° cone hopper flanged to housing. Clean-out door and 1 1/4” level indicator coupling in hopper. Installation & maintenance manuals.

There are a variety of benefits with an ELF (Elevator Leg Filter) Unit. Some of which include: allowing dust filtration to occur at the source and the elimination of hundreds of feet of ducting, scores of elbows, and a large fan required to overcome static pressure losses.

A baghouse is a dust collection devices that filter air by passing it through a cloth or synthetic fiber media (or bag).  A bag is a long cylinder-shaped envelope that collects dust on its exposed surface.  Baghouses differ not by the method by which dust is removed from the airstream but   rather by the method by which dust is removed from the bag.
