Airmar Technology Corporation products

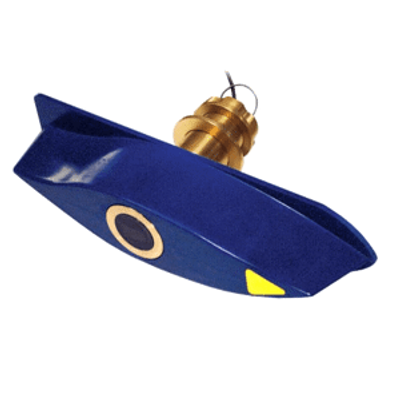

The B122 has an extra-long housing designed for use in thick-hulled, wooden boats or vessels with a steep deadrise. The included High-performance Fairing vertically orients the beam for strong return echoes, resulting in optimal performance even at higher speeds. And being a retractable design, the insert can be removed for servicing or storage.

The B17-HP, high-precision temperature sensor responds quickly and accurately to temperature changes. The 25 mm (1") bronze button on the sensor’s face along with the specialized fast-response thermistor provide a five-second time constant and ±0.3ºC (±0.17ºF) accuracy. This Smart ™ Sensor can output precision-temperature data to a fishfinder, chart plotter, digital display, or computer. The top-of-the-line B17-HP is ideal for commercial and sport-fishing applications, helping skippers detect thermal boundaries and eddies which attract bait concentrations and game fish.

This version of Airmar’s M563 offers excellent sensitivity and Broadband Performance throughout low and high-frequency bands. This performance allows crisp waveforms at discrete frequencies or allows Broadband Chirp or coded waveforms.

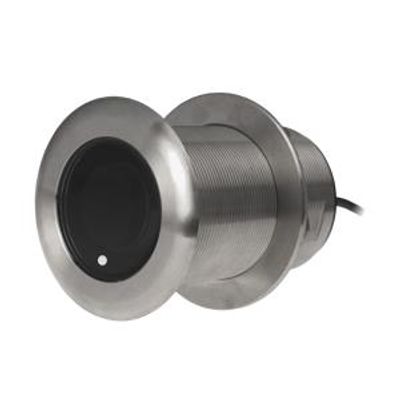

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is a deep-water performer for excellent coverage and tracking. The SS75L, transmitting between 40 to 75 kHz, delivers up to 35 kHz of total bandwidth in just one installation.

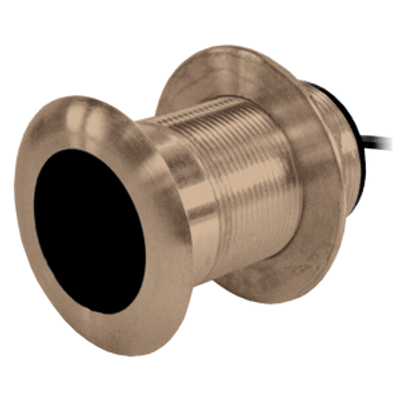

Airmar’s B150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600`) with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depth.

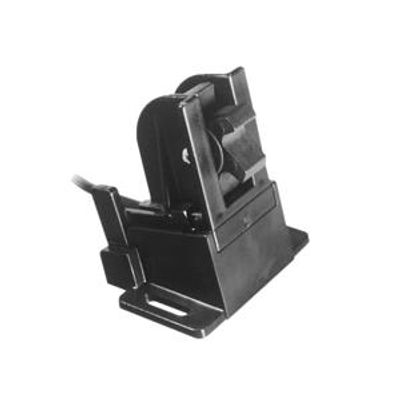

The ST61 consists of a paddlewheel speed carrier that snaps into a small transom housing containing sensing electronics. This standalone unit gives accurate speed readings over a wide speed range.

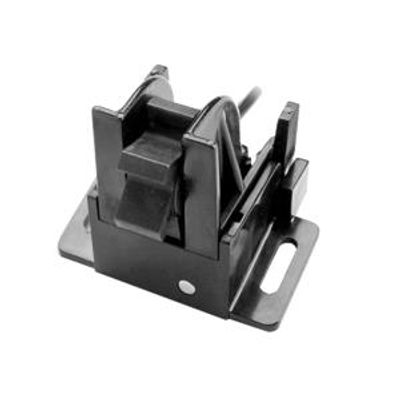

The ST63 easily adds speed and temperature to any analog display. It is used with instruments that allow separate depth, speed, and temperature inputs. Both the paddlewheel and electronics are contained in the paddlewheel carrier. A mounting bracket is available for standalone transom installations.

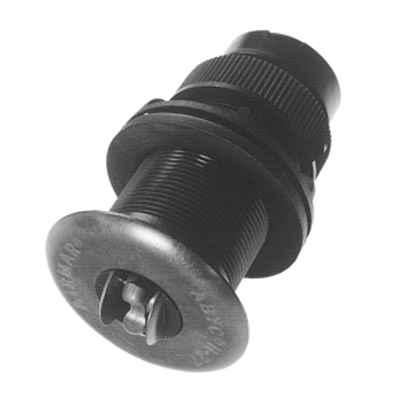

The ST800 is an analog, retractable speed and temperature sensor. The sensor fits inside a low profile plastic or bronze thru hull housing that is nearly flush to the hull, with only 5 mm (3/16”) extending outside of the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.

The ST850/800 is an analog, retractable speed and temperature sensor. The sensor fits inside a low profile, stainless steel thru hull housing that is nearly flush to the hull, with only 5 mm (3/16”) extending outside of the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.
