AKAL Engineering & Machinery Inc products

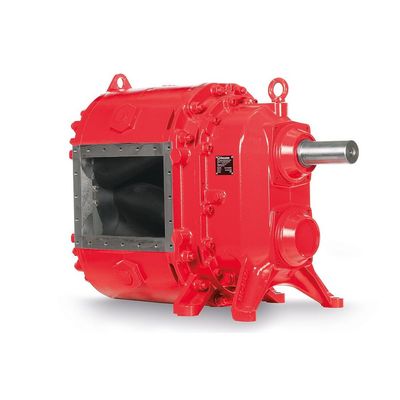

High capacity in minimum space. This is the key feature of the VX230. It offers capacities up to 1,234 m³/hour against pressures up to 12 bar. The model series also includes key features of the VX series, such as the QuickService principle. This makes maintenance work significantly faster and easier and minimizes downtime.

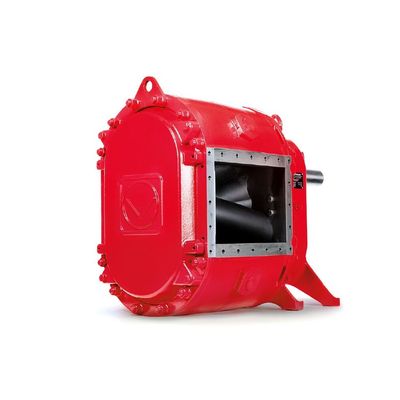

The VX215 series in the VX series has powerful capacities of up to 24,000 l/min or 1,417 m³/h and pressures of up to 8 bar. It is also very compact and has a low net weight. Another positive feature is its strong resistance to foreign substances thanks to its 90 mm wide free passage. This series can also be equipped with the InjectionSystem as an optional extra. This increases the pumps` insensitivity to foreign substances. To ensure rapid maintenance, the series is designed according to the QuickService principle. This means that all wet parts can be replaced in the installation position without disassembling the pump. This makes the VX215 series particularly well-suited for power-demanding pumping tasks, such as membrane filtration, tankers or self-propelled vehicles.

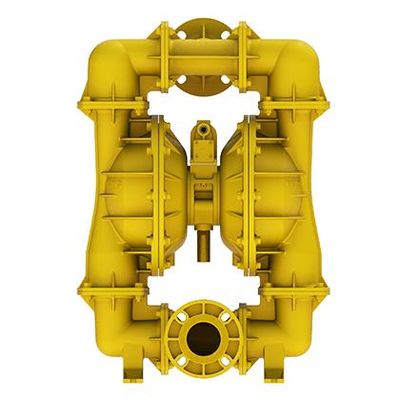

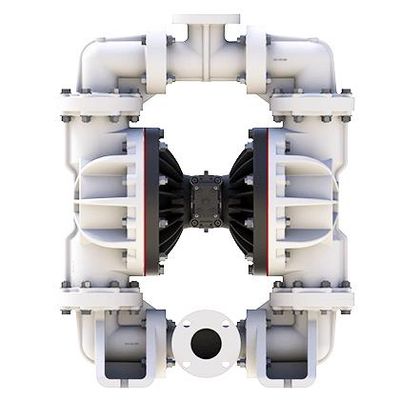

The pump, which has a Versamatic 3″ (76 mm) ATEX mechanism, has a simple mechanism for control and performance. It can handle a wide range of usage. Additionally, the 3″ ATEX-certified AOD pump can be used with chemicals, including those containing gasoline and gas. ATEX Diaphragm Pump Safety Advantages

When developing the wet cutter RotaCut MXL, special attention was paid to taking into account the requirements of the vehicle design.

The RCX series cutters represent a logical further development of the wet cutter RotaCut. For flow rates of up to 1200 m³/h, they epitomize cost-effective cutting for demanding applications in tight spaces. RCX types feature extremely robust motors as well as a robust and robust design that allows use on the discharge side up to 6 bar. A completely new concept has been developed for good service and maintenance accessibility despite larger dimensions and weight: The swivel service flap provides easy access to the cutter, and thanks to the horizontal arrangement, the cutting blade and grill can be replaced with just a few parts. movements. All RCX types feature a cartridge mechanical seal that requires less time to replace, improving reliability and improving overall maintainability.

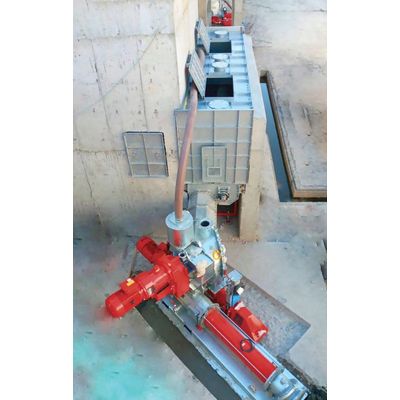

CPF Solid Feed Unit is designed to feed solid materials to fermenters in biogas plants. Material; It carries crushers, shredders or separator machines by integrating them into raw material preparation and dosing units.

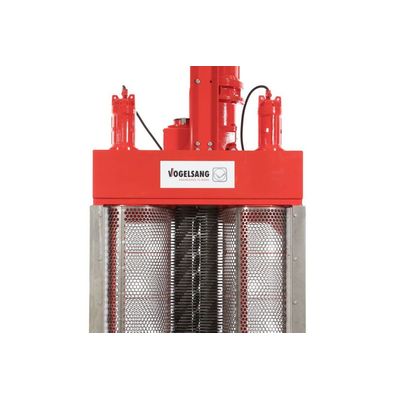

High flow rates, such as those occurring in large sewers and at the inlets of sewage treatment plants, can only be controlled with suitably large but efficient grinders. The double spindle grinding machine XRipper XRG has been specially developed for these applications. High Capacity Units have screens positioned laterally within the enclosure, trapping and holding back contaminants and waste while allowing large amounts of (waste) water to pass unimpeded. This is continuously fed into the Ripper rotors, which shrink them down to a manageable size. To remove the functional unit, simply unscrew a few screws on the body.
