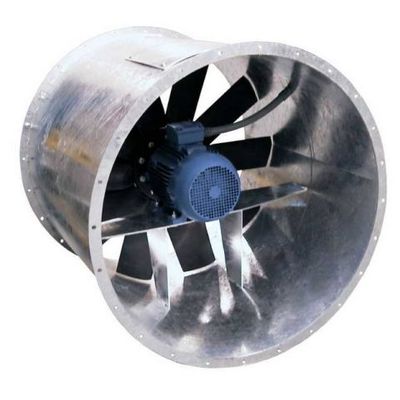

Construction: Short casing with motor partially outside the duct. Standard diameters from 315 until 1250mm. Steel welded casing with two identical flanges. Standard hot dip galvanized after construction. Direct driven. Cast aluminum or cast iron motor IEC B3 3x400V 50Hz. Impeller with cast aluminum center boss and plastics blades. Airflow selectable, motor <> impeller. Impeller balanced following the norm ISO 1940-1 quality G6.3.

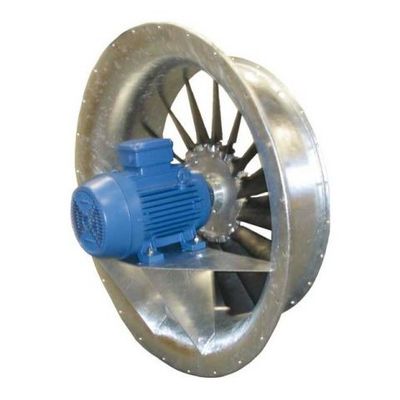

Application: Mostly used for common applications. The inlet bell makes it possible to decrease the dynamical pressure.

Application: Mostly used for common applications but a very interesting fan for in-duct mounting apllications because of its inspection door and cable duct.

Special configurations: In addition to an extensive range of standard products, you can also contact us for custom-made solutions: Explosion-proof design (ATEX). Fans with cooling element for temperatures up to 550 °C. Smoke extract fans F400 and F600.

Typical applications: Supply of combustion air to gas or oil injectors. Aeration of liquids. Airknives. Pneumatic transport.

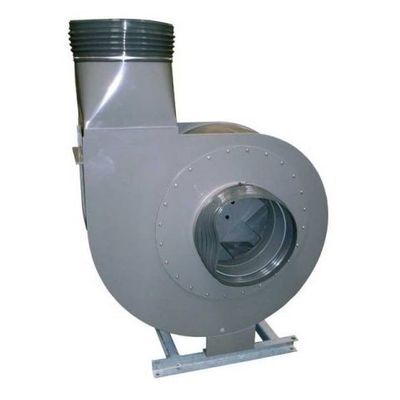

Single inlet plastic (PVC or PP) centrifugal fan. All components in contact with the medium are made of plastic. Pedestal made of coated, galvanized or stainless plate steel. Exists in V-belt drive and flexible joint drive. Standard IEC motors.

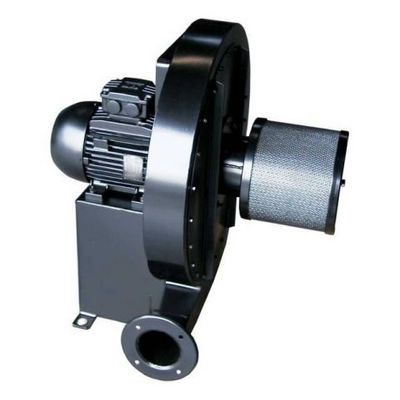

Almeco distributes FPZ blowers in the entire Benelux. The standard side channel blower design is direct-driven with a dynamically balanced impeller wheel mounted directly on the engine. Both the pump casing and the impeller wheel are made of aluminum alloy.

Powerful and robust, the EP10A compact blowers incorporate a backward curved turbine bladed impeller. They are available with motors from 5.5 through to 18.5kW in standard metric or NEMA frames and can be easily retrofitted in place of other belt driven alternatives. Due to this relatively small footprint, the EP10A is ideal for integrating into customer’s equipment.

The TSQZ range includes direct drive two and three stage centrifugal fans.

An adiabatic cooler is a fluid cooler. During the greatest part of the year, it is possible to dissipate heat just by making use of the ambient air. Once the temperature of the ambient air is too high, the unit will automatically switch to wet mode and make additional use of the cooling effect of evaporating water.
