Alpha Pompe S.P.A. products

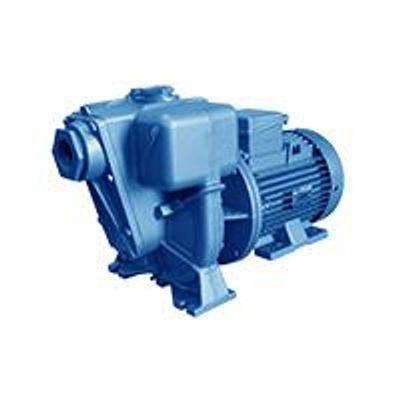

Self priming electric pumps from 0,44 Kw to 18,5 Kw from 80 Lt/1` to 4800 Lt/1`. Open/Closed impeller.

Closed coupled centrifugal electric pumps from 0,55 Kw to 7,5 Kw , from 250 Lt/1` to 550 Lt/1`. Closed impeller.

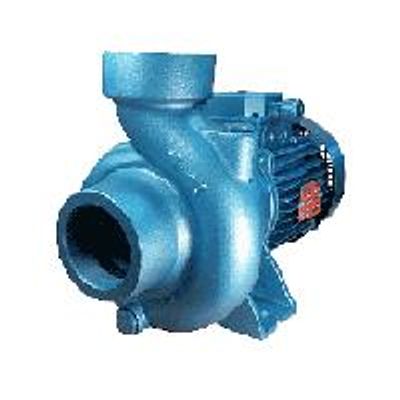

Centrifugal electric pumps from 0,44 Kw to 5,5 Kw . From 30 Lt/1` to 1200 Lt/1`

Centrifugal electric pumps for flowing installation from 1,1 Kw to 3,0 Kw. From 350 Lt/1` to 110 Lt/1`

Centrifugal electric pumps single/two impeller from 0,44 Kw to 5,5 Kw , from 10 Lt/1` to 310 Lt/1`

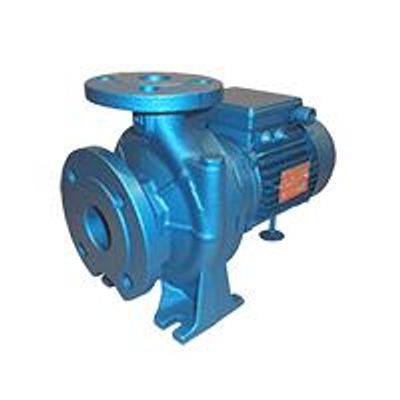

Centrifugal electric pumps single impeller from 4 Kw to 7,5 Kw, from 100 Lt/1` to 400 Lt/1`. Flanged holes.

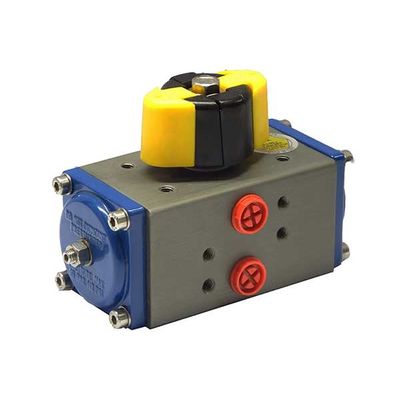

Alphair aluminium pneumatic actuators “AP Series”, with internal adjustment, is composed of 17 different models with 90° movement, going from 7 to 10.000 Nm for the double acting version (DA) and from 4 to 4000 Nm for the single acting version (SR); 11 models with 120° and 180° movement, going from 7 to 700 Nm for the double acting version (DA) and from 4 to 120 Nm for the single acting version (SR).

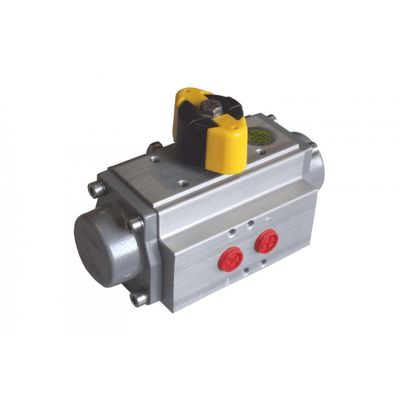

Alphair aluminium pneumatic actuators “RE Series”, with external adjustment, is composed of 15 models with 90° movement, going from 20 to 10.000 Nm for the double acting version (DA) and from 4 to 4000 Nm for the single acting version (SR).

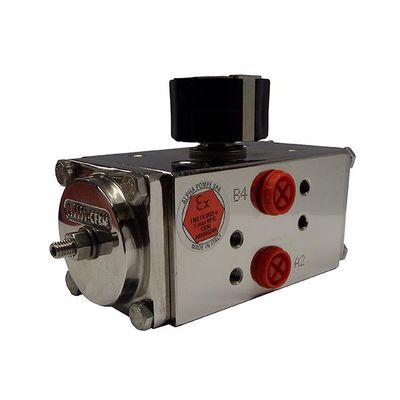

Alphair AISI 316 stainless steel pneumatic actuators “AP-A Series”, with internal adjustment, is composed of 10 models with 90° movement, going from 13 to 520 Nm for the double acting version (DA) and from 4 to 200 Nm for the single acting version (SR); 8 models with 120° and 180° movement, going from 13 to 360 Nm for the double acting version (DA). The internal adjustment system, acting on pistons and covers, avoids side-loads on pistons, shaft and body. It assures compactness, sturdiness, reliability and long-lasting to the product. The above mentioned series can be coupled with every ISO 5211 compliant valve. Moreover it can also be coupled with valves not in compliance with the a.m. certification.

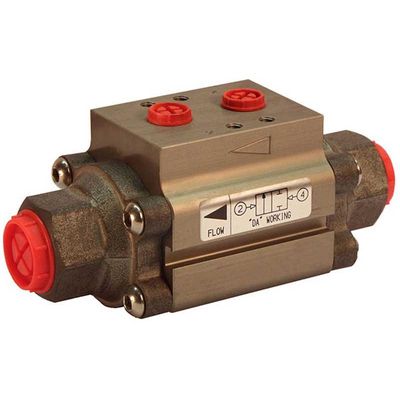

Alpha pompe S.p.A. manufactures Coaxial Pneumatic Valves, and it sells them with “FASTAIR” mark. The above mentioned valves series is composed of six different models, going from DN 15 (1/2″) to DN 50 (2″). There are two different Coaxial Pneumatic Valves versions: the double acting ones (DA) and the single acting ones (SR). Fastair Coaxial Pneumatic Valves are equipped with on-off operator and are suitable for group 2 type fluids (not dangerous).
