AlphaDynamic Pumps SA products

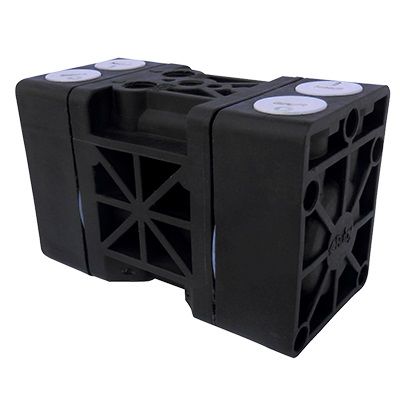

For delivery rates up to 5 l/min. Atex Certification: STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc. CONDUCT: II 2/2 G/D Ex h IIC T4 Gb/Db  – I M2 Ex h Mb. Construction Material: PP , PP+CF. Intake/delivery connections: G 1/4”. Air connection: 1/8”. Max. flow rate: 5 L/min. Max. flow pressure: 7 bar. Operating pressure: Min. 2 bar – Max. 7 bar. Max. suction head: 3 m. Max. size of solids: 0,5 mm. Max. operating Temperature: 60°C. Weight: 0,5 Kg.

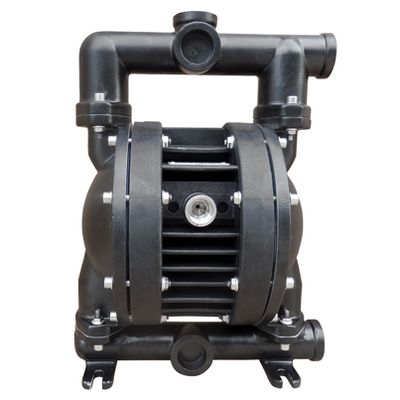

For delivery rates up to 72 L/min. Atex Certification: STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc, CONDUCT: II 2/2 G/D Ex h IIC T4 Gb/Db – I M2 Ex h Mb. Construction Material: PP , PP+CF , PVDF+CF , ALUMINUM , AISI316. Intake/delivery connections: G 1/2” – DN 15 (on request). Air connection : 1/2”. Max. flow rate: 72 L/min. Max. flow pressure: 8 bar. Operating pressure: Min. 2 bar – Max.8 bar. Max. suction head: 3 m. Max. size of solids: 3.0 mm. Max. operating Temperature : PP 60°C , PVDF 95°C , Aluminum 95°C , AISI316 95°C. Weight PP: 4.0 Kg. Weight PVDF+CF: 5.5 Kg. Weight AISI316: 9.0 Kg. Weight Aluminum: 6.0 Kg.

For delivery rates up to 375 L/min. Atex Cerification: STANDARD : II 3G Ex h IIB T4 Gc & II 3D Ex h IIIB 135° C Dc. CONDUCT : II 2G Ex h IIB T4 Gb & II 2D Ex h IIIB 135° C Db. Construction Material :Aluminum – 233. Intake/delivery connections : G 1 ”. Air connection: 1/2”. Max. flow rate : 185 L/min. Max. flow pressure: 8 bar. Operating pressure: Min. 2 bar – Max.8 bar. Max. suction head: 5 m. Max. size of solids: 3.5 mm. Max. operating Temperature: 95°C. Weight: 9 Kg.

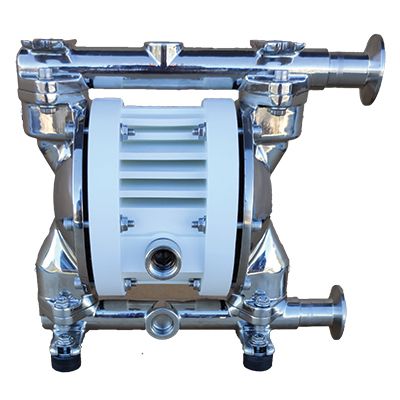

For delivery rates up to 72 L/min. Atex Cerification: STANDARD: II 3/3 G/D Ex h IIB T4 Gc/Dc, CONDUCT: II 2/2 G/D Ex h IIC T4 Gb/Db. Construction Material: Stainless Steel AISI 316 Mirror Polish. Intake/delivery connections: DN 25 – Tri-clamp. Air connection: 1/2”. Max. flow rate: 72 L/min. Max flow pressure: 8 bar. Operating pressure: Min. 2 bar – Max.8 bar. Max. suction head: 3 m. Max. size of solids: 3.0 mm. Max. operating Temperature: 95°C. Weight: 9.0 Kg.

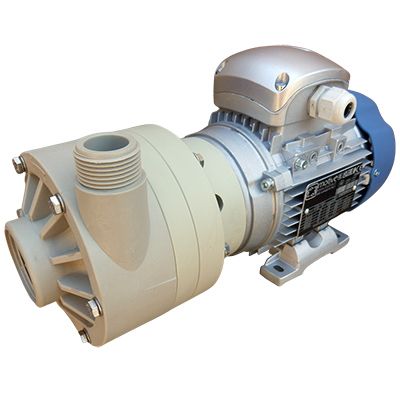

For delivery rates up to 3.5 m3/h. Construction Material: PP , PVDF. Intake/delivery connections: 1 ” (F) x 1/2” (M). Flow rate: 3.5 m3/h. Maximum head: 7m. Max. viscosity: 200 cSt. Max. operating Temperature: PP 60°C , PVDF 90°C. Motor: 0.16HP 380V/3/50Hz 2800 RPM. Weight without motor: PP 1.0 kg, PVDF 1,1 Kg. Weight with motor: 4,3 Kg, PVDF 4,4 Kg.

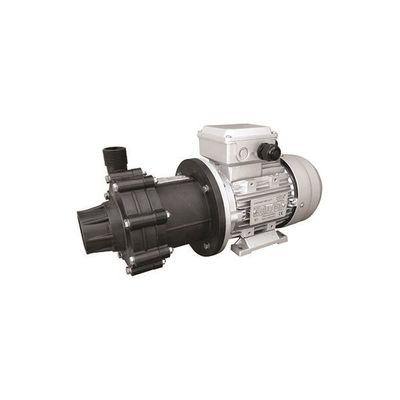

ADH 080 centrifugal pump with mechanical seal are made of plastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids. They are operated by a direct-drive motor (max 3000 rpm). Their special open-impeller design allows pumping even with very dirty liquids having apparent viscosity up to 500 cps (at 20°C) and small suspended solids. There are two versions available with different internal mechanical seal depending on use, A (lip seal) and B (bellows seal.).

The ADV 080 vertical centrifugal pump are high-performance pump for fixed installations with pump immersed directly in the tank and operated by a direct-drive electric motor (max 3000 rpm) for fast fluid drainage.

Volumetric Stainless Flexible Impeller Pumps, are mostly suitable for the transfer of delicate, fragile and viscous medium, also with solid parts in suspension

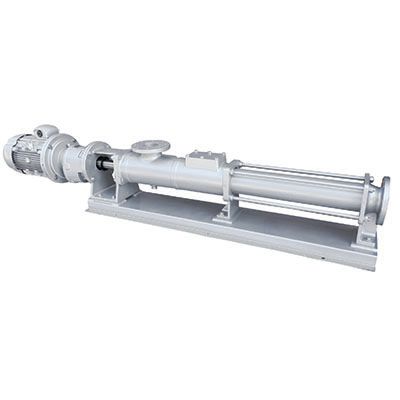

The ATLAS SBM series is the best solution for the industrial sector in pumping a vast range of fluids. They are synonymous with strength, reliability, performance and application flexibility. Suitable for pumping viscous and non-viscous products, with or without solids of any nature, they are an ideal solution for those seeking a standard product with advanced technology with unbeatable cost benefits in the current single screw pumps market.

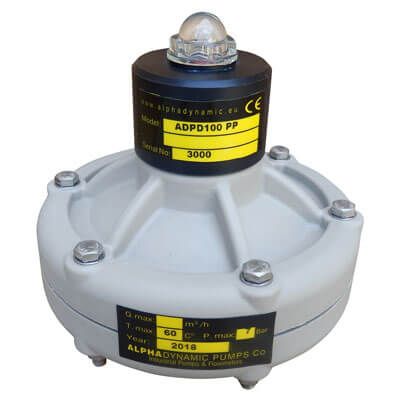

ADPD dampeners can be used with liquids having high apparent viscosity even if containing suspended solids of considerable size and they automatically adapt to system conditions without the need for manual adjustment or calibration. The ability to minimize pulsations, vibrations and water hammer means that this component provides excellent protection and smooth system flow. The huge choice of construction materials allows selection of optimum chemical compatibility with the fluid and/or environment without neglecting the temperature range. Dampeners are also available for use in potentially explosive atmospheres (ATEX certification). Diaphragm pulsation dampeners consist of a pneumatic actuator connected to the diaphragm. The sturdy outer body forms the actuator’s compressed-air chamber for suppressing pressure surges on one side of the diaphragm and the chamber through which the fluid flows on the other.
