Amos Scientific Pty Ltd products

Display monitor a range of functions including Section thickness, trimming, section counter etc. `Separate control panel is easy to operate. Spacious magnetized section waste tray. Light Balance handwheel with ergonomic concept design. Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation. Retraction function effective avoid the specimen come against blade during specimen turn around. Universal specimen holder fit to internal standard cassette. Locking may be activated at any position by handwheel to protect blade or cassette changing safety.

Display monitors a range of functions including section thickness, trimming, section counter. Separated control panel is easy to operate . Spacious magnetized section waste tray. Light balance handwheel with ergonomic concept design . Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation . Retraction function effectively avoid the specimen against the blade when it`s truing around . Universal specimen holder fits international standard cassette. Handwheel locking may be activated at any position to protect specimen and improve safety standard . Automatic specimen feed memory function improves the trimming speed and quality.

The casing of microtome is amde from fire-retsrdant ABS palstic with streamlined design . Spacious and ingenious waste tray. Advanced retraction function makes better sectioning. The retraction value is also adjustable . Universal and fast specimen holders fits international embedding cassettes. Handwheel locking may be activated at any position and improve operation safety standard . The electric coarse feed operates two speeds which is easy to record the feed. Separated control panel is much easier to operate. Three motorized sectioning modes (Cont, Single and Step) are available for user to select. Automatic memorized coarse feed and reload function can significantly improve cutting efficiency.

Freeze chamber minimum temperature : -35°C±2°C.  Freeze shelf minimum temperature : -45°C±5°C.  Lowest temperature of Peltier unit on freeze shelf: -55°C±5°C.  Lowest temperature of Peltier unit on Specimen Clamp : -50°C±5°C(working time of Peltier is 15 minutes.).  Maximum specimen size : 35x35mm.  Specimen vertical stroke : 48+1 mm.  Specimen horizontal stroke : 15±0.2mm.  Coarse feeding speed : 300jim/s (slow) or 900^m/s(rapid).  Section thickness range : Onm -10O^m adjustable;. Ojim ~ 3nm. in 0.5^im increments; 3|im - lO^rn. in l|im increments; 10|im ~ 20jim, in 2^im increments; 20|im~100jim, in 5^im increments;.  "rimming thickness range: 10|im ~ 600nm adjustable;. 10|im ~ 50jim, in 5^im increments; 50jim ~ 1OO^im. in 10fim increments; 100|im - 600jim, in 50^im increments;.  Retraction range: r>80|im adjustable, in 5|im increments.

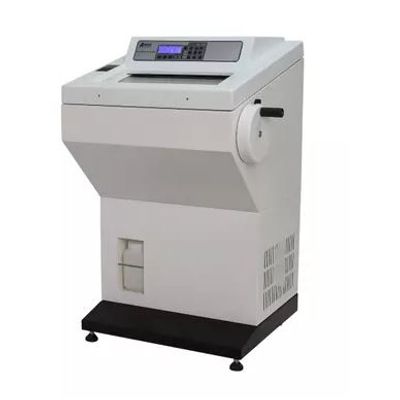

It is designed under overall engineering and ergonomic concept. All the components are processed by computer numerical controlled machine. Retraction function prevents specimen damage from blade . Total thickness calculation. The low temperature refrigeration system with environment friendly refrigerant R404. Adopt UV and 03 sterilize for 30 minutes every time. Peltier specimen clamp refrigeration may be turned on or off manually. Two defrosting methods: manual and automatic. Two running ways: manual and automatic. Emergency stop function : Press the red button to stop running when any emergency happens. The high precision unit is enclosed outside the cryostat chamber to prevent it from thermal expansion and contraction, and keep minimum maintenance requirement.

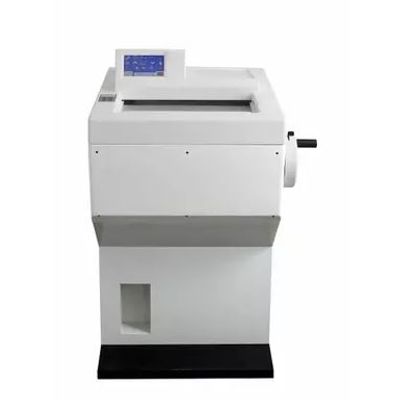

It is designed under overall engineering and ergonomic concept. All the components are processed by computer numerical controlled machine. Retraction function prevents specimen damage from blade. Total thickness calculation. The low temperature refrigeration system with environment friendly refrigerant R404. Adopt UV sterilize for 30 minutes every time. Peltier specimen clamp refrigeration can be turn On or Off manually. Two defrosting methods: manual and automatic. The high prevision unit is enclosed outside the cryostat chamber to prevent it from thermal expansion and contraction, and keeps minimum maintenance requirement. Artificial intelligent interface is easy to learn and operate. Touch Screen and display all information including thickness, thickness sum, controlling time, temperature, time on/off and so on.

The Thermal console is compatible with all types of cassettes, embedding molds and processed tissues specimens, The large capacity: 2.5L (252 cassettes), The temparature range can be set from ambient to 75°C, This thermal console can also be used as a water bath

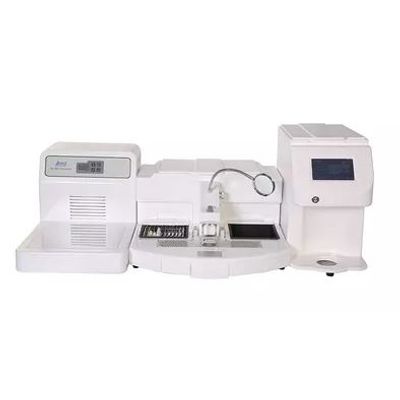

Easy to learn to operate user interface with smart color touch screen. To meet the great demand embedded work, the embedding platform can be arranged at both right and left sides which be controlled performance separately or process embedding work simultaneously. It adopts six heating ways and precise temperature control system. Embedding module, cold spot and paraffin trimmer are integrated. The paraffin flow can be released by manual or foot switch through Electromagnetic valve. Forceps holder with constant temperature support the residual wax be drained automatically ,so it can effectively remove the paraffin adhering in the tip of the forceps. Embedding mold tray with constant temperature be in favor of removing the wax adhering in embedding mold .which facilitate the recycling of embedding mold. The brightness of LED lights can be freely adjusted according to desired needs. The magnifier with metal hose which can be flexibly adjust the position according to the desired needs.
