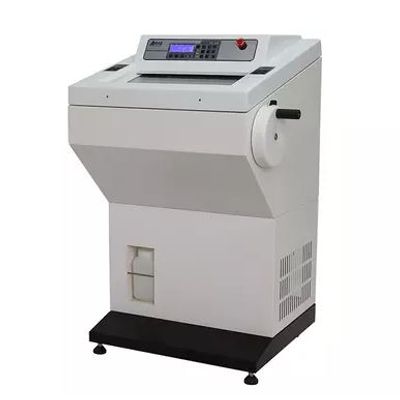

Model AST550 -Fully-automatic Cryostat Microtome
It is designed under overall engineering and ergonomic concept. All the components are processed by computer numerical controlled machine. Retraction function prevents specimen damage from blade . Total thickness calculation. The low temperature refrigeration system with environment friendly refrigerant R404. Adopt UV and 03 sterilize for 30 minutes every time. Peltier specimen clamp refrigeration may be turned on or off manually. Two defrosting methods: manual and automatic. Two running ways: manual and automatic. Emergency stop function : Press the red button to stop running when any emergency happens. The high precision unit is enclosed outside the cryostat chamber to prevent it from thermal expansion and contraction, and keep minimum maintenance requirement.
- Artificial intelligent interface is easy for user to learn and operate.
- LCD screen can display all information including thickness, thickness sum. controlling time, temperature, timed on/off and so on.
- Sleep Function. After activating this function, the temperature in cryostat chamber can be kept between -1BC and -10°C; After stopping this function, the temperature in freeze chamber will arrive to working temperature within 30 minutes.
- Control panel with locking function could avoid wrong operation.
- Handwheel locking function.
- Wide freezing shelf load 8 specimen cassettes simultaneously .and two of them are equipped with peltier to meet different temperature.
- Freeze chamber minimum temperature : -35°C±2°C
- Freeze shelf minimum temperature : -45°C±5°C
- Lowest temperature of Peltier unit on freeze shelf: -55°C±5°C
- Lowest temperature of Peltier unit on Specimen Clamp : -50°C±5°C(working time of Peltier is 15 minutes.)
- Maximum specimen size : 35x35mm
- Specimen vertical stroke : 48+1 mm
- Specimen horizontal stroke : 15±0.2mm
- Coarse feeding speed : 300pm/s (slow) or 900um/s(rapid)
- Section thickness range : Opm ~ 100pm adjustable;
- 0pm - 3pm, in 0.5pm increments;
- 3pm ~ 10pm. in 1 pm increments; 10pm - 20pm. in 2pm increments; 20pm -100pm. in 5pm increments;
- Trimming thickness range: 10pm ~ 600pm adjustable;
- 10pm - 50pm. in 5pm increments; 50pm - 100pm, in 10pm increments; 10Oprn-600pm. in 50pm increments;
- Retraction range: 0^80pm adjustable, in 5pm increments
- Voltage and frequency : 220 V ± 10%. 50 HZ /110 V ± 10%, 60 HZ
- Nominal Power: 1000 W
- Weight: about 130 KG
- Dimensions(WxDxH): 805x715x1195mm
