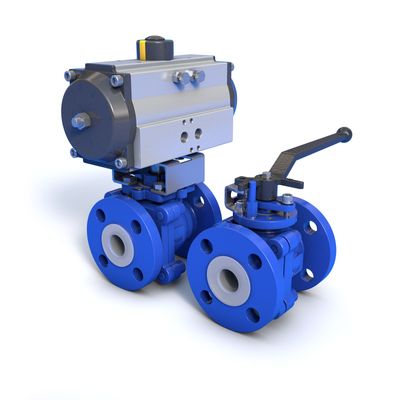

Since 1970, the ACRIS valve has been used in the most aggressive and corrosive applications like hydrofluoric acid, sulfuric acid, 35% hydrochloric acid, nitric acid, chlorine gas (wet or dry), vinyl chloride monomer, ethylene di chloride, chlorinated caustic soda, chlorine dioxide, bleached stock and sodium chlorate among others; as well as ultra-pure applications such as 18 Mega OHM de-ionized water and ultra-pure HF acid.
Specifications; Full Port Design. Available Sizes : ½' to 6'. Pressure Class : ASME 150. Operating Temperature : -22°F to 400°F. Valve Body Design : ASME B16.34. Maximum Operating Pressure : 275psi. Flanges : ASME B16.5 Class 150 RF.

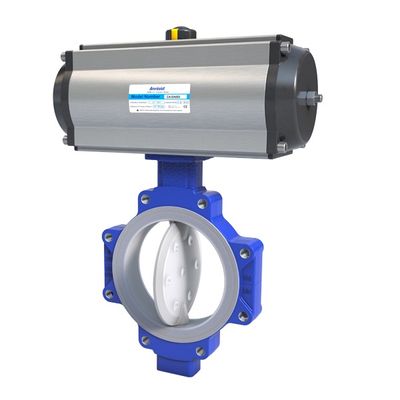

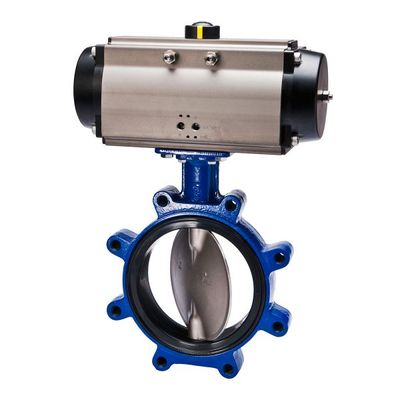

C Series Actuators are designed to automate ¼ turn valves. Mounting is made easier with multiple ISO bolt patterns and a Star insert drive system. Accessories can be easily mounted including Namur mount Solenoids, Limit Switches and Positioners.
