Angstrom Advanced Inc. products

High Performance: Atomic-scale of resolution. Large sample size. DSP(Digital Signal Processing) for great performance. Real time operating system embedded. Fast Ethernet connection with computer.

AA3000 Scanning Probe Microscope is a very popular model. This unit is tailored towards research and industry applications, where the user can perform rapid and simple analysis. The detector is built directly into the base, eliminating the chance of damaging it through handling. AA3000 Scanning Probe Microscope is capable of performing contact mode, tapping mode, lateral force microscopy and scanning tunneling microscopy. The standard unit is equipped to view sample areas up to 10 micron by 10 micron. The system can be customized to measure larger areas. With a Digital Signal Processor (DSP) TMS320C642 inside the systems, AA3000 can handle complicated multi-functional tasks efficiently. A real-time operating system of SPM/DNA is embedded in AA3000 SPM system.

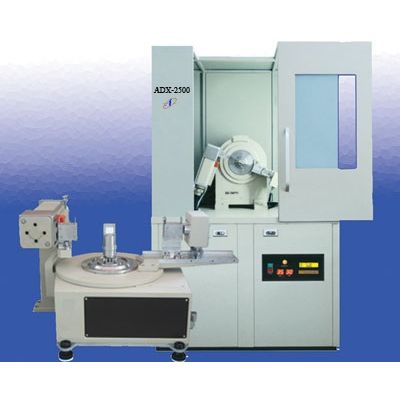

ADX-2500 X-ray Diffraction (XRD) is designed for application in the microstructure measurement, testing and in-depth research investigations. With different accessories and the corresponding control and calculating software, ADX-2500 XRD is a diffraction system according to the practical requirements in many fields.

ADX-2700 θ-θ Powder X-ray Diffraction Instrument(XRD) is multi-function X ray diffractometer with exceptional analysis speed, reliability and reproducibility. The ADX2700 XRD is a diffraction instrument designed for the challenges of modern materials research. ADX2700 X Ray Diffractometer can analyze powders, liquids, thin films, nanomaterials and many other different materials. The ADX2700 X-Ray Diffraction can be used for many different applications: Academic, Pharmaceuticals, Chemical & Petrochemical, Material Research, Thin Film Metrology, Nano technology, Food & Cosmetics, Forensics, Mining & Minerals, Metals, Plastics & Polymers, etc.The ADX2700 X-ray Diffraction(XRD) has function of both θ-θ (theta-theta) and θ-2θ (theta-2theta) X-ray Powder Diffraction.

Angstrom Advanced sets the standard in Ellipsometry-bringing the best in ellipsometry technology at the most affordable prices.Angstrom Advanced offers full range of ellipsometers for thin film thickness measurements, optical characterization for refractive index and extinction coefficient analysis (n & k). Angstrom Advanced Inc ellipsometry can be used for many different applications and are used in some of the most prestigious laboratories such as MIT, NASA, UC Berkeley, Yale University, Duke University, NIST and many more.

Angstrom Advanced sets the standard in Ellipsometry-bringing the best in ellipsometry technology at the most affordable prices.Angstrom Advanced offers full range of ellipsometers for thin film thickness measurements, optical characterization for refractive index and extinction coefficient analysis (n & k). Our ellipsometers can be used for many different applications and are used in some of the most prestigious laboratories such as MIT, NASA, UC Berkeley, Yale University, Duke University, NIST and many more.

HGH-300 and HGH-500 high purity hydrogen generators are based on the technology of astronautic fuel cells, in which hydrogen is produced by the electrolysis of water, and the produced oxygen is released into the atmosphere. The hydrogen generator consists of electrolyzing/separating pool, power supply, pressure control, desiccation& purification, flow display etc. The core part -- electrolyzing & separating pool, uses a tube shaped positive pole and a plate shaped negative pole. Both poles are made of stainless steel. The electrolyzing & separating pools store electrolytes, produce hydrogen as well as release hydrogen at the same time. The HGH series hydrogen generators have the advantages of large electrolyzing area, low temperature of the pool, better performance, high production and high purity of hydrogen. The HGH300/500 Hydorgen Generator has been specially designed to prevent liquid from back-flowing.

The HGH3000 and HGH5000 have been designed to supply the highest purified hydrogen and it meets high levels of expectations in the demanding markets. The internal mechanisms that run this generator are integrated with the latest electrolytic cell technology, using stainless steel alloy as its hard body. The new ergonomic design and user-friendly interface have been modified for comfort and reliability for the consumer.

HGN-300 & HGN-500 nitrogen gas generators utilize theories of physical adsorption and electrochemical seperation and use rare metal as catalytic agent. The HGN300/500 Nitrogen Generator can directly extract highly pure (as high as 99.999%) nitrogen from the air. There is no need of deoxidation. The HGN300/500 nitrogen generators are compact and advanced in technology. The HGN300/500 Nitrogen Generator are very suitable for gas chromatographs and micro coulomb meters.
