Anhui FLT Filtering System Co., Ltd products

Design inlet pressure: 0.2-0.4MPa. Working pressure: ≤0.6Mpa. Inlet water quality: SS = 15-30mg / l.  Outlet water quality: SS≤5mg / l. Pressure loss: ≤0.1Mpa. The Backwash water flow: 35-55m³ / h Backwash water consumption:

DS series electric brush filter is a fully automatic cleaning filter. A set of brushes is installed in the filter screen. The brush is rotated by the motor. An electromagnetic diaphragm drain valve is installed on the filter end cover. During cleaning, the signals from the time and differential pressure switch on the electric control box are transmitted to the control panel. The control panel opens the drain valve and starts the motor at the same time, driving the brush to rotate to remove the dirt impurities. Under the action of hydraulic power, the filter is discharged through the drain valve . There is no need to interrupt the cleaning.

Single flow  The 25 ~ 1200t / h, more flow can be paralleled by multiple single machines.

FDZ series of multi-media filters are used to improve water quality and process organic and inorganic substances under 5μm in water. It is a pressure filter filled with quartz sand and high-quality anthracite filter material. Using the unique porous adsorption of anthracite filter material, it has both the lower layer special effect filtration and the upper layer high efficiency adsorption and other functions. Compared with the single filter material, the filter material`s dirt holding capacity is enhanced. The structure is simple, the technology is mature, the cost performance is high, and the application field is wide.

FSD series hydraulic drive filter is a self-driving hydraulic filter without energy consumption. It is suitable for other water treatment projects such as agricultural irrigation, metallurgical industry, petrochemical industry, municipal engineering, etc. It cleverly uses the physical characteristics of water pressure, which does not require electrical control, and completes the suction and removal of impurities; it reduces energy consumption, simplifies the filtering method, and is more suitable for occasions where power is not easy; it has a simple structure and easy maintenance , Long service life, is an ideal energy-saving and environmentally friendly water treatment equipment.

The GSL series high-speed filter can ensure the high quality of the effluent quality when there are many suspended substances in the raw water. It has the advantages of high filtration speed, large amount of treated water, and small footprint. Its operation mode is manual operation and single (or multiple) program control automatic operation. It is selected by the unit. GSL series high-speed filter is not only suitable for filtering raw water with more suspended matter, but also in circulating water supply system. It can improve water quality, increase water recycling rate, and save water. It is a necessary equipment in current industrial water treatment facilities.

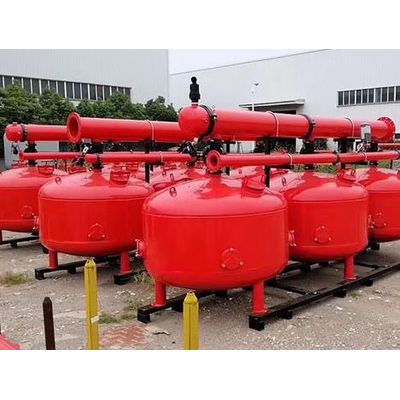

The FSL series sand filter uses a certain thickness of sand filter bed to filter out organic and inorganic solid suspended solids in raw water; the structure is simple, the technology is mature, the cost performance is high, and the application field is wide.

The FDP series laminated filter core is composed of a set of discs with grooves on both sides. The intersection formed by the edges of the grooves can trap water suspension and solid objects. Improved filtering effect.

Function 2 Normally closed. Interface size 3/4 ", 1", 1-1 / 2 ", 2" British & American.
