Apollo Goßnitz GmbH products

Foot-mounted, single-stage overhung pumps in radial-split design. The pump meets all requirements of API 610 and ISO 5199. The back-pull-out version in connection with demountable coupling (volute casing and motor remain in initial position) allows simple maintenance. Exchangeable wear and guide rings enable easy maintenance and cost reduction.

The single-stage, horizontal, heavy version is designed acc. to the requirements of API 610 and ISO 5199. The robust design of the pumps, as well as the reliable hydraulic version, enable to fulfillment of all requirements of the application in many fields.

Horizontally or vertically mounted, single-stage, axially split process pump according to API 610 and ISO 5199. The heavy-duty process design of the ZMK pump ensures maximum reliability. The pumps are available as units with a base plate or base frame and protection against accidental contact according to DIN 31001. They ensure process-reliable sealing under a wide range of operating conditions.

Single-stage, double suction volute casing pump according to API 610 or ISO 5199. The ZPR process pump is especially suitable for high pressures and high temperatures and can be designed with a variable casing design according to customer requirements.

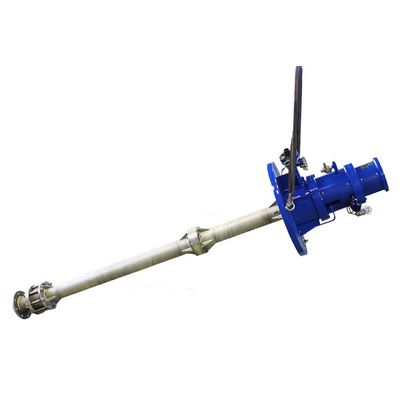

A vertical, multistage high-pressure submersible pump according to API 610 / ISO 5199. The vertical process pumps are characterized by high reliability in operation and very good NPSH values. The first impeller of the HPVX pump type is suspended.

The horizontal centrifugal pumps of the GL series are multi-stage pumps with closed impellers. These horizontal centrifugal pumps can be supplied as complete units with baseplate or base frame and motor acc. to ISO 5199.

Horizontal multi-stage high-pressure centrifugal pump with closed impellers. The series includes several nominal diameters with different hydraulics that can be combined according to a modular system.

Multi-stage, horizontal high-pressure centrifugal pump. The series includes several nominal diameters with different hydraulics that can be combined according to a modular system.

Horizontal, multistage ring-section high-pressure pump, between bearings design, as in-line version. The process pump has excellent hydraulic characteristics, a perfectly optimized performance field, and a modern structural design.

Single-stage, single-flow, volute casing pump of normal suction. The design fulfills the requirements of DIN 5199. For special application purposes, the pump of type KRCO is provided as version with open impeller.
