Apollo - Model BB2 - ZPR / ZPRA -Single-Stage, Double Suction Volute Casing Pump
Single-stage, double suction volute casing pump according to API 610 or ISO 5199. The ZPR process pump is especially suitable for high pressures and high temperatures and can be designed with a variable casing design according to customer requirements.
Most popular related searches
volute casing pump
double suction pump
process pump
wear plate
split case pump
suction pump
split case volute
split case
high-pressure pump
chromium
Based on solid design, between-bearings version, low NPSH values, and the suitability for high pressure and temperature this pump series have various applications:
- refineries
- petrochemical plants
- special applications
- offshore engineering
- power plants
- system areas - oil and gas tanks

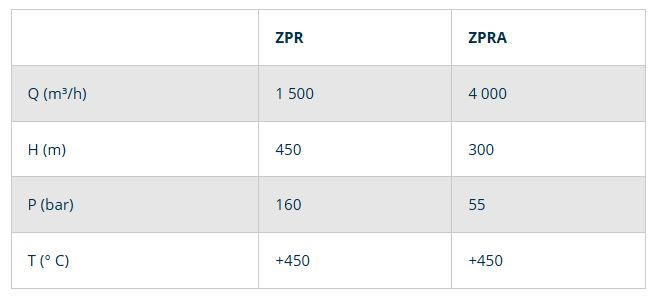

- Q= 1500 m³/h
- H= 450 m
- P= 160 bar
- T= + 450°C
- single-stage, radial-split, volute casing pump of double-volute design
- double-flow impeller
- with bearings on both sides BB2
- centerline-supported
- variable nozzle arrangement possible
- internal and external sealing by means of helical wound metal/graphite seal
- a design with wear plate is possible
- ZPRV as vertical version
- grey cast iron
- ductile cast iron, ADI materials
- cast steel
- 12 % chromium steel
- austenitic steel
- special alloys
- Inducer is an additional upstream impeller of screw type which provides very low NPSH values
- Design of the inducers is selected according to specific application range of Customer.
- In case of double-flow impeller upstream inducers are applied on both sides.
- Suction and discharge nozzles have inline arrangement
- optimum casing design for specific design of piping depending on project requirements
