22 products found
products
-
Automatic Grease Traps
-
Point of Source Big Dippers
Big Dipper point of source units efficiently servce fixtures such as 1 to 3 compartment sink, pre-rinse station, combi ovens or wok stations. Available in a range fo sizes from 1.26 litres per second up to 3.15 litres ...
-
Model AST - Central Location Big Dippers
Big Dipper central location units can treat kitchen drain flows between 4.73 & 7.89 litres per second , they are designed to treat flows from multiple fixtures in a central location like a basement or plant ...
-

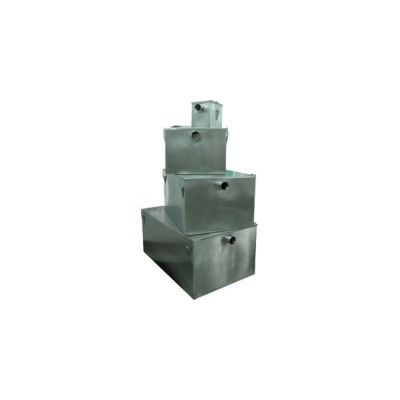

Stainless Steel Grease Traps
-
Model BSGT - Budget Grease Traps (5 Year Warranty)
Fats, Oils and Grease are lighter than water and as such float on the surface. A Typical conventional trap is a rectangular tank with an internal baffle wall, the baffle divides the system into two chambers. The BSGT also have an internal strainer basket on the inlet to trap solid waste before entering the baffle chamber of the ...
-
Model SSGT - Premium Grease Trap (10 Year Warranty)
SSGT stainless steel grease traps: 10 Year Warranty, FreshMesh® filtration system, High Grade 304 Stainless Steel, Made in Great ...
-
Food Filter Traps
-

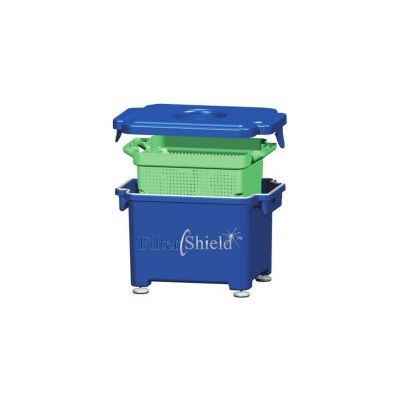

Filter Shield
'Not all drain blockages are caused by fat, oil and grease’. The unique and patented designed FilterShield protects commercial kitchen waste pipes by removing food sediment, coffee waste grounds, rice, potato peelings including starch from entering the drainage lines. Located either internally or externally with the units corrosion resistant durable polypropylene construction, the system is installed in line and connects to the outlet drainage of ...
-
Food Sediment Solids Strainers
'Food' sediment waste can cause drainage problems as much as fats, oils and greases. Food waste collects around fat deposits in drains, making it much more difficult to degrade. It also increases the likelihood of blockages, floods and foul odours. Removal of food waste at source is an often neglected form of wastewater treatment, yet with the simple installation of a effective Food Solids Strainer in a commercial kitchen can effortlessly prevent the ...
-
Biological Grease Treatment
-

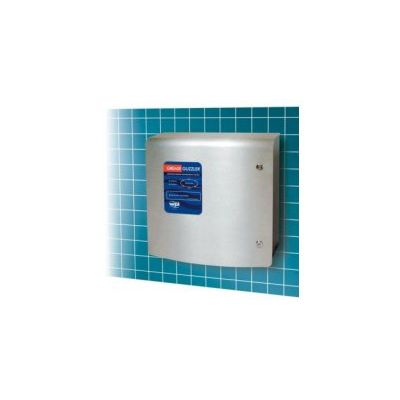

Grease Guzzler Medium to Large Kitchens
The Grease Guzzler is an innovative, self contained solution to grease management. Designed for any environment where Fat, Oil & Grease (FOG) can cause blockages in waste pipes or drain runs. The system utilises patented bio-technology, ensuring efficient and effective drain cleansing with minimal impact on the ...
-
Aqua Bio-Pro - Drain Treatment System
The Aqua Bio-Pro is an automatic drain maintenance dosing system protecting commercial kitchens from fat oil and grease build-up within the drainage ...
-
Above Ground Grease Traps
-

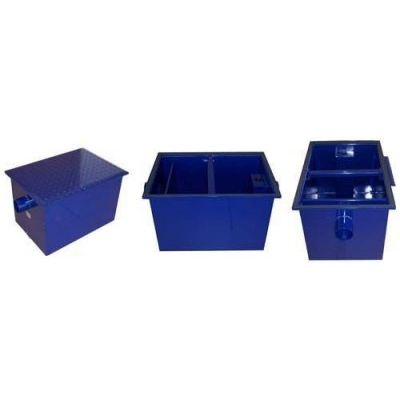

Epoxy Coated Mild Steel Grease Traps
Our MSGT range of value epoxy coated mild steel grease traps offer flexibility with the units installation either internal or external and can be located as floor standing trap or recessed within the ...
-
Eco-Mobile Domestic Grease Trap
Fit-&-Trap Eco-Mobile - Effective Grease Management System: Made from polyethylene, material LLDPE. Compact and very effective grease management system. Easy installation and maintenance procedure. The Fit-&-Trap Eco-Mobile is one of the markets simplest form of grease management systems suitable for dishwasher or single sink ...
-
Super Capacity Grease Interceptor
The Trapzilla Super Capacity Grease Trap collects free-floating Fats, Oils and Grease (FOG) contained in kitchen drain water flows. As most food service facility managers already know, FOG buildup inside a building’s grease containment system is a major cause of problems due to exterior drain line blockages. These problems jeopardise normal operations as well as causing health and safety hazards within the facility itself. The installation of a ...
-
High Capacity Polyethylene Grease Seperators
Both systems are designed to the building regulations BS EN 1825 and constructed of lightweight impact and corrosion resistant polyethylene for easy handling and transport (316 stainless steel available to special ...
Products by Big Dipper—Thermaco
-
Big Dipper Internal Strainer Series
-
Big Dipper - Model W-200-IS - Automatic Grease Removal Device
The Big Dipper W-200-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 20 GPM (1.26 l/s) flow while holding more than 40 lbs. (18.14 kg) of grease. The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy ...
-
Big Dipper - Model W-250-IS - Automatic Grease Removal Device
The Big Dipper W-250-IS Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 25 GPM (1.58 l/s) flow while holding more than 50 lbs. (22.68 kg) of grease. The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy ...
-
Big Dipper Automatic Solids Transfer Series
-
Big Dipper - Model W-250-AST - Automatic Grease Removal Device
The Big Dipper W-250-AST Automatic Grease Removal Device is capable of accepting up to a 25 GPM (1.58 l/s) flow. The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy disposal. The Automatic Solids Transfer feature automatically empties incidental solids out of the solids chamber and down the sewer ...
-
Solids Strainers
-
External Strainer Unit, 2 Inlet/Outlet
The Big Dipper ESU-1 External Solids Strainer is designed for locations that require a separate external solids strainer be installed in front of a grease interceptor. The ESU-1 separates and collects coarse solids such as rice, cole slaw, and other familiar food particles larger than 0.125' (3.175 mm) in diameter. The removable strainer basket allows the customer to empty the collected solids directly into a trash receptable. The ESU-1 External ...
-
Sealed-Stainless Models
-
Big Dipper - Model W-250-IS-SS - Sealed-Stainless Automatic Grease Removal Device
The Big Dipper W-250-IS-SS Sealed-Stainless Automatic Grease Removal Device is rated to the PDI-G 101, and ASME A112.14.3 and A112.14.4 standards and is capable of accepting up to a 25 GPM (1.58 l/s) flow while holding more than 56.4 Pounds (25.6 Kg) of grease. The center module which comes with digital time control, heater assembly, and mechanized skimming assemble, automatically isolates trapped grease into grease collector for easy ...
-
Trapzilla Gease Traps
-
Trapzilla - Model TZ-160 - Supercapacity Grease Trap System
Thermaco Trapzilla TZ-160 Grease Trap System, rotationally molded polyethylene grease and oil separator for below or above-ground installation, rated at 35 gallons (2.21 l/s) per minute peak flow, 160+ pounds (72.57+ kg) of grease storage capacity, flat grease separation curve, integral portal for access by grease pump truck for grease removal, integral portal for vacuum access for removal of solids, and including as an integral part of the unit a vessel ...
-
Trapzilla - Model TZ-400 - Supercapacity Grease Trap System
Thermaco Trapzilla TZ-400 Grease Trap System, rotationally molded polyethylene grease and oil separator for below or above-ground installation, rated at 75 gallons per minute peak flow, 400+ pounds of grease storage capacity, flat grease separation curve, integral portal for access by grease pump truck for grease removal, integral portal for vacuum access for removal of solids, and including as an integral part of the unit a vessel vent, an integral gas ...
-
Evaluwell Sample Ports
-
Evaluwell - Model EW-40 - Sampling Port
A Better Means for Sampling: The Evaluwell Sample Port provides a convenient, easy method to sample a grease interceptor, process point or other effluent source. Evaluwell’s unique design makes it easy to install in almost any location, be it inside or outside the facility. It also lends itself to many wastewater sites including commercial, industrial, medical and ...
-
Solid Strainers
-
Big Dipper - Model FS-1 - Flat Strainer
The Big Dipper FS-1 Flat Strainer is designed to eliminate the garbage disposal and reduce clogged drains due to coarse solids buildup. The Flat Strainer separates & collects coarse solids such as rice, cole slaw and other food scraps larger than 0.125” / 3.175 mm in diameter. The removable tray allows the customer to empty the collected coarse solids directly into a trash receptacle. The FS-1 is constructed of durable stainless steel and offers ...
-
Big Dipper - Model ILS-1 - In-Line Strainer
The ILS-1 In-Line Strainer separates and collects coarse solids larger than 1” (25 mm) in diameter found in typical institutional-type kitchen flows. This option is designed to couple with large Big Dipper Grease Removal Units (50 GPM and higher). How does the ILS-1 In-line strainer work? As kitchen effluent flows into the ILS-1In-line strainer from the top, it passes over a grate. This grate has openings that are 1” wide. This strains out any ...
