The Aquatel S207E is our entry level LED wireless tank fluid level monitor. It is the most cost effective way to wirelessly monitor the fluid level in your tank up to 300m (984 feet) away (or using the AQ433 Antenna kit up to 1km, 3280 feet away). Because Aquatel only manufactures quality products we have become global leaders in Fully Wireless Tank Level Indicators & Controllers. The S207E auto updates to a small and stylish desktop indicator placed in your home and can detect the fluid level in all tank types from 1 meter (3.3 foot) in depth to 4 meters (13 foot) in depth. The S207E can be used on all surface and underground tanks.

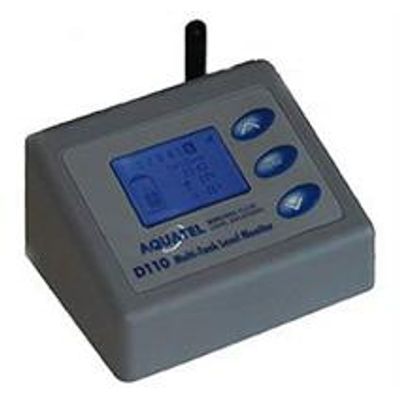

Aquatel D110 is a Multi-Tank capable wireless fluid level monitor that can be used in just about any shape or size tank/cistern. The D110 system comes complete with everything needed to remotely monitor one tank or cistern up to 300m/984 feet away, or using Aquatel`s AQ920-7 Booster Antenna kit (both ends), up to 10km/6 miles away. Should you wish to monitor more than one tank or cistern (up to 6 maximum) simply purchase additional T110 Tank Sender Units and pair to your Aquatel D110 Display Unit. Aquatel`s proven tank sender technology, provides more than 100,000 level updates from a single set of Energiser Ultimate Lithium AA Batteries, thats up to 5 years (when set on a 30minute update interval), interval can be set anything from 1 to 30 minutes.

Aquatel`s D110-S Multi-Tank capable wireless fluid level monitor can be used in just about any shape or size tank/cistern. With the added feature of a RS232 Serial Port installed on the rear of the display, this unit can be quickly interfaced with most PC`s. The D110-S system comes complete with everything needed to remotely monitor one tank or cistern up to 300m/984 feet away or using Aquatel`s AQ920-7 Booster Antenna kit (both ends), up to 10km/6 miles away. Should you wish to monitor more than one tank or cistern (up to 6 maximum) simply purchase additional T110 Tank Sender Units and pair to your Aquatel D110-S Display Unit within minutes.

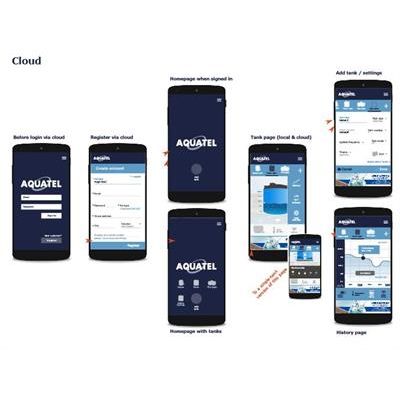

Pre-order the D110-C today and we will dispatch the standard D110 system to your door within 48 hours from order placement. As soon as the connected solution is available, we will courier at no additional charge a new web connected Display, with a self addressed envelope for returning the original Display. Aquatel`s D110-C Web connected Multi-Tank capable fluid level monitor can be used in just about any shape or size tank/cistern. With added web integration, powered by Aquatel`s Global Fluid Management Platform, you will soon be able to view tank level information and other critical data from almost anywhere in the world.  Aquatel`s easy cloud interface, provides the information you need in the palm of your hand, reducing risk and protecting your fluid resources.

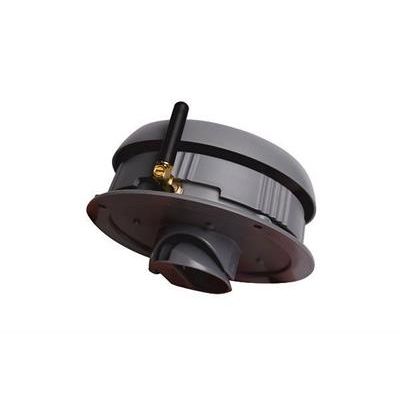

The T110 Tank sender unit easily pairs with any Aquatel D110 Multi-tank capable system, see D110. You can pair up to six Aquatel T110 Tank Senders to any one D110 display. These have a standard working range of up to 300m (1000 feet) line of sight or when used with our Aquatel AQ920-7 custom booster antenna systems, you can achieve up to 6 miles (10 km) line of sight. You can have trees, buildings, concrete walls, floors etc between the Tank and Display units, however every obstruction will shorten the working radio range. See Booster Antennas.

Aquatel M107-BT Wireless Pump Control system with remote fluid level monitor is a very effective wireless system to automatically or manually control fluid levels in just about any shape or size tank/cistern. The M107-BT system comes complete with everything needed to remotely fill or drain your tank or cistern up to 300m/984 feet away or using Aquatel`s AQ920-7 Booster Antenna kit (both ends), up to 10km/6 miles away.

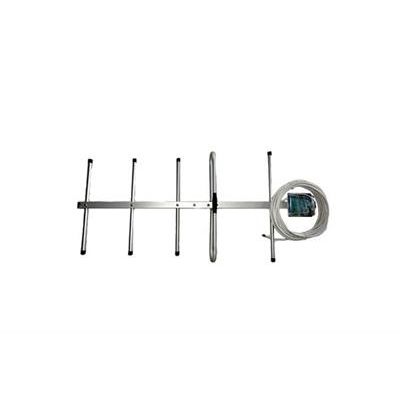

Aquatel`s custom made 5 Element Yagi Antenna complete with 6m (18foot) cable and RP-SMA connector, guarantees to give you the best performance possible when used with our S207e. The Antenna gives up to 8 dbi gain and should always be mounted on a mast or roof at least 1.5m (5 foot) above the ground. This Antenna will increase your effective range up to 10km (6miles) if used at both ends. The AQ433-5 Antenna is tuned to the S207e 433mhz frequency. Please note we do not ship this item outside New Zealand at this time - Suitable only for the S207e (Licence may be required).

The two-way Control4 driver allows alerts to be received via email or the Control4 UI — and triggers automated events – based on fluid levels or changes in temperature or status. The driver also allows you to switch between Fahrenheit and Celsius, and more easily access data from the system.
