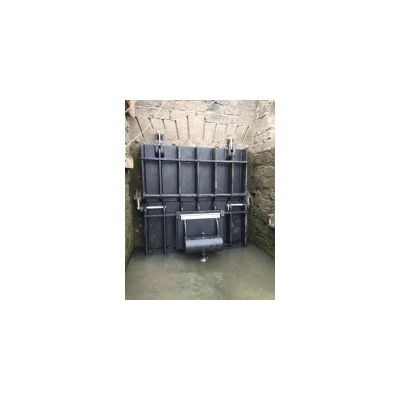

A penstock or sluice gate is a type of valve for controlling water or sewerage. A Penstock valve is, in essence, a sliding door which can be operated by hand or by means of an actuator. A penstock door raises to open and allow the passage of water and lowers to isolate the flow. A penstock is controlled by a mechanically operated spindle. The spindle can be operated automatically through the use of an actuator. This could be activated once specific set levels are reached. Therefore, removing the need for any human interaction. Penstocks also seal a pipe on all 4 sides, this is something that stoplogs are unable to do.

ACE KOAS Weir Penstocks are available in a number of forms, tailored to your requirements. The penstocks are manufactured in Stainless Steel 316L, making them lightweight for ease of handling and installation, without compromising strength.

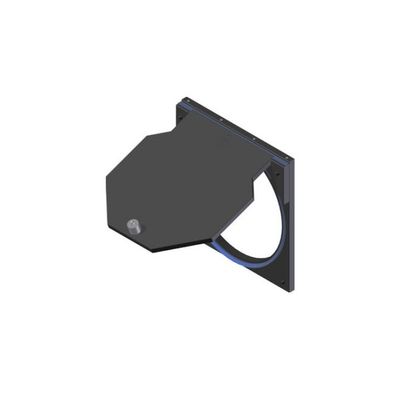

A flap valve is a type of non-return device for water or sewerage. The purpose of a flap valve is to ensure water can pass through the valve in one direction only. Flap valves operate by water flowing through a pipe or culvert and pushing the swinging door open. When the water level on the downstream side of the flap valve is higher than in the pipe or culvert it presses the swinging, door shut and prevents the water traveling back through the system.

Since the introduction of HDPE flap valves by ACE in 1997 the material has become synonymous with high quality, reliable flood defences. Offering extremely good value for money over its life- it’s not just any “plastic” valve it’s an ACE valve! We stock a wide variety flap valve sizes for quick dispatch (100-1000mm) however if our standard range does not meet your requirements our products can be customised to meet your needs (higher pressures, special sizes or pumped valves for example). All our standard flaps are made from the tried and tested UV stable black HDPE, stainless steel 316 and EPDM sealing systems. They come complete with fixing’s and seals required for installation (we can offer the valves without fixings on request).

Since the introduction of HDPE penstocks by ACE over 20 years ago the material has become synonymous with high quality, reliable flood defences. Offering extremely good value for money over its life- it’s not just any “plastic” valve it’s an ACE valve! We stock a wide variety of penstocks sizes for quick dispatch (100-1000mm) however if our standard range does not meet your requirements our penstocks can be customised to meet your needs. All our standard penstocks are made from the tried and tested UV stable black HDPE, stainless steel 316L and EPDM sealing systems. Our penstocks come complete with fixings and seals required for installation.
