Armtec products

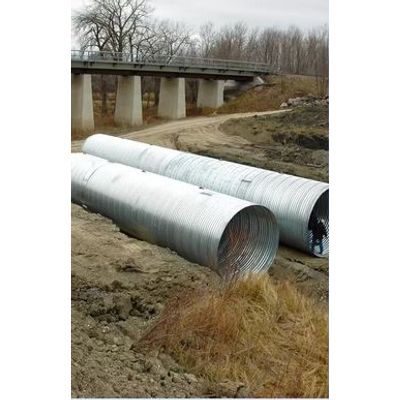

Corrugated Steel Pipe (CSP) has been successfully used in infrastructure across North America since the late 1890s. CSP is a trusted material that combines strength, lightweight, flexibility, and adaptability. With a multitude of sizes, corrugation profiles, and material options, Armtec’s SteelCor offers unparalleled versatility and flexibility in the design of culverts, storm sewers, caissons, and more.

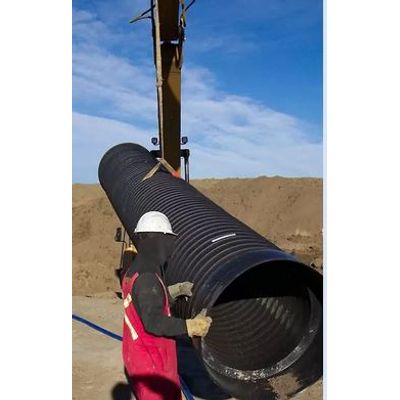

BOSS 2000 is a corrugated dual wall High Density Polyethylene (HDPE) pipe. It combines the strength of a corrugated outer shell with a smooth inner wall to optimize hydraulics. Available in 100 to 900 mm diameters with a 320 kPa pipe stiffness, it is perfect for storm sewer pipe and drainage applications where certification to CSA Group standard B182.8 and Bureau de Normalisation du Quebec (BNQ) BNQ 3624-120 is required. This durable pipe delivers a 75-year design service life. Diameters up to 1,500 mm are available upon request.

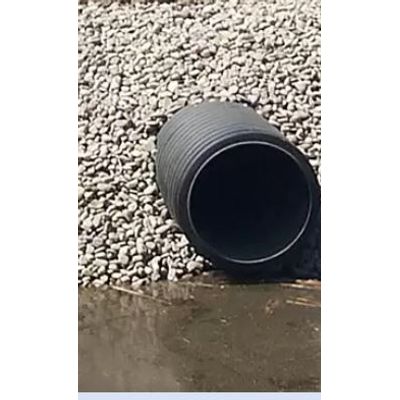

BOSS Poly-tite is factory tested and certified to CSA Group standard B182.6 with a CSA 100 kPa (15 psi) certified joint (for 100 mm to 750 mm). This durable and highly resistant product delivers a 75 year design service life.

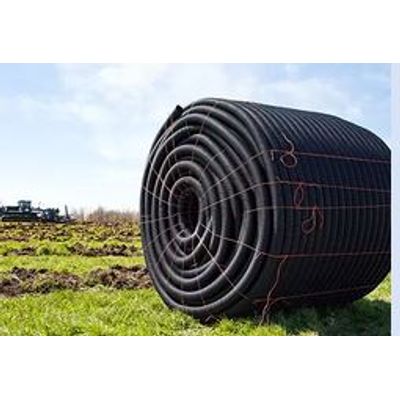

Big ‘O’® High Density Polyethylene (HDPE) tubing provides superior performance and durability in the agricultural, residential building and highway sectors. Using state-of-the-art manufacturing equipment, Armtec produces a full product line of both solid and perforated tubing.

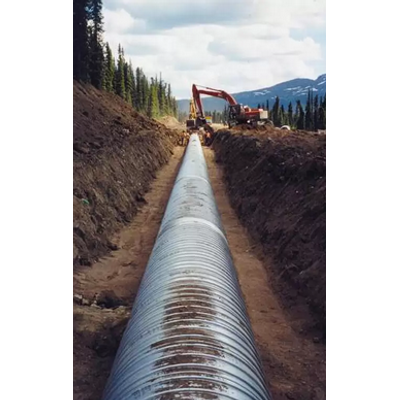

Armtec UltraFlo is an innovative, flexible corrugated steel pipe (CSP) storm sewer pipe with a unique external box-shaped spiral rib corrugation and smooth pipe interior. It delivers superior hydraulic performance at an economical price.

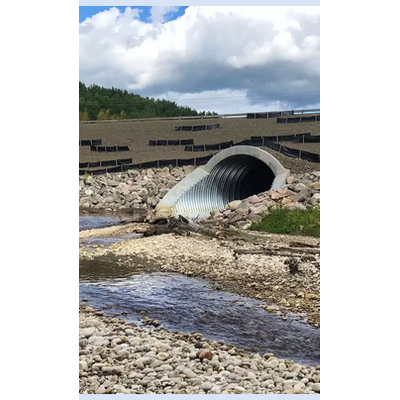

BRIDGE-PLATE Deep Corrugated Structural Plate (DCSP) is one of the strongest structural plate products on the market today with the deepest corrugation profile possible. It allows an economical construction of long span soil-steel structures in arch, ellipse, round and box-culvert shapes. Configurations are pre-engineered to make the selection process quick and easy. Standard spans range from 4m to 18m, with longer custom designs available. BRIDGE-PLATE is available with the Strata-CAT polymer coating system for added corrosion and abrasion protection.

Multi Plate is a versatile and economical bridge and culvert product that can be custom designed for almost any application. It is most commonly used as the steel element of a buried soil-steel structure, but it can also be part of free-standing structures such as rock fall protection, conveyer tunnels, caissons and more. Strata-CAT polymer coating is available for added protection in corrosive or acidic environments.

Tunnel Liner Plate is one of the most versatile segmental corrugated steel plate systems on the market today. Designed specifically for lining soft ground tunnels and relining existing conduits under highways and railroads, its applications extend to caissons, vertical shafts, mine entries and much more.

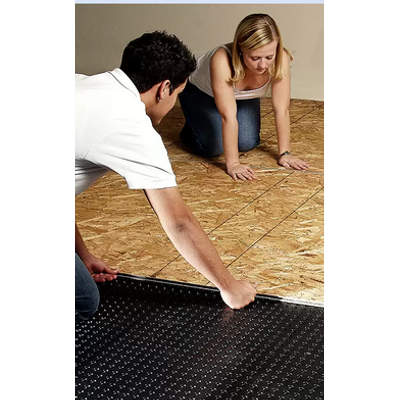

Platon® flooring protector isolates flooring from cold, damp concrete. When used beneath a wooden sub-floor and over concrete in a basement, it makes floors comfortable, odour-free, healthy and dry.

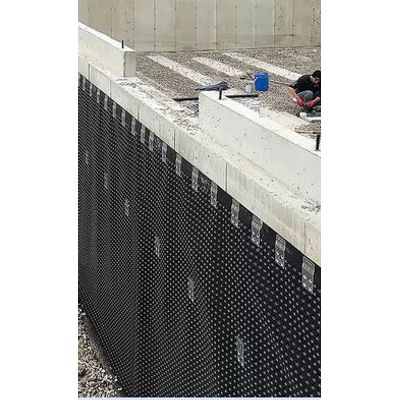

Platon is a rugged, dimpled High Density Polyethylene (HDPE) membrane that keeps wet soil away from the foundation wall. Any moisture that may find its way past the membrane is carried to the foundation drain by the air gap drainage path. Platon is commonly used to waterproof block walls, poured concrete walls, permanent wood, existing foundations and Insulated Concrete Forms (ICF).
