Ascon Tecnologic S.r.l. products

Industrial Automation and Refrigeration - Analogue Controller

Ascon Tecnologic - Analogue Controller

This analogue controller, in 48×48 mm size, is available in different measurement scales: 0 … 100 ° C; 0 … 200 ° C; 0 … 250 ° C; 0… 350 ° C; 0 … 600 ° C; 0 … 1000 ° C; 0… 1200 ° C It has 1 input for temperature probes: TC J or K or RTD Pt 100 and 1 relay or voltage output for SSR driving. The power supply is 24 … 240 VAC.

Industrial Automation and Refrigeration - Controllers and Indicators

Ascon Tecnologic - Controller with Independent Timer

KUBE series: the evolution that has something more! Pocket size, energy saving and advanced functions: evoGreen – for Energy Saving. evoTune – for “trouble-free” adjustment. evoTools – code-based configuration for fast commissioning and programming key for instant parameterization. User calibration for sensor position compensation. Independent timer function with 5 operating modes. Hour meter/working days with 2 functions and programmable alarm. Calculation of power and energy consumption (Wattmeter). Freely customizable parameter sequence.

Data Acquisition - I/O Modules

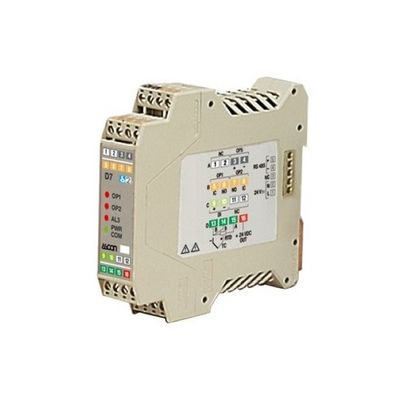

Ascon Tecnologic - Acquisition, Isolator, Transmitter with Alarms

Acquisition, isolator, transmitter with alarms; Installation on the machine or within a panel. It can be used individually or interconnected, with internal bus for power supply and RS 485 – Modbus serial communication. I/O module for data acquisition systems (DAS), PC-based control systems, supervision systems, analog I / O for PLC etc. Universal analog transmitter with alarms. Special functions for analog and digital inputs. Configurable from PC Can be interfaced via DX module to Profibus and CAN networks

Sensors and Actuators - Sensors and Transmitters

Ascon Tecnologic - Relative Humidity And Humidity & Temperature Transmitters

Relative humidity + temperature probe, 4… 20 mA output. Humidity sensor + Temperature sensor. Wall installation. Connections with terminal block with screw terminals. Case protection degree IP 67.
