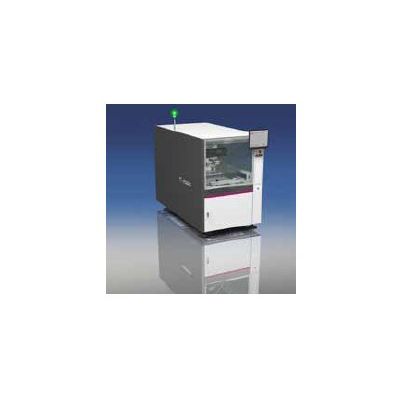

The DIVISIO 5000 Flexible is top of its class in flexible, highspeed depaneling systems. The machine is only 1200mm long and has a working area of 460 mm x 460 mm. The modular frame construction leaves enough room for installation of for example a carrier circulating system or an underfloor conveyor with integrated lift device. The machine consists of 2 lanes which can be configured according to the customer’s demands. The PCB panel enters the machine on lane 1 where it is routed and the routed PCBs are subsequently transferred via a gripper to lane 2. The handling gripper axis is made of carbon reinforced plastic, ensuring high stiffness and accuracy.
