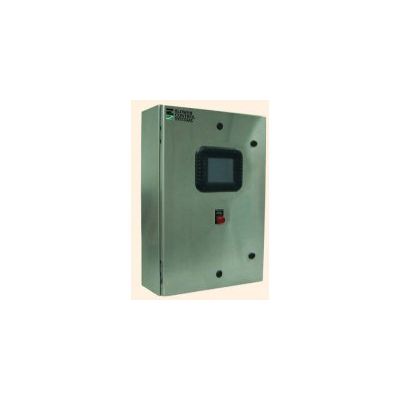

The HSI CP 4100 control panel sequences operation of multiple blowers on a common header. The sequencer automatically starts and stops the blowers and adjusts the flow rate to satisfy the input variable demand. CP 4100 is fully plug and play compatible with HSI Local Control Panels of MC Series (Multistage) and HT Series (Turbo) type controllers. HSI can also customize to control other types of centrifugal blowers.

The HSI CP 2100 PLC controller enhances operation of HSI MC Series (Multistage Centrifugal) type of blowers by incorporating modulating inlet valve flow control for pressure applications and bleed valve control for vacuum.

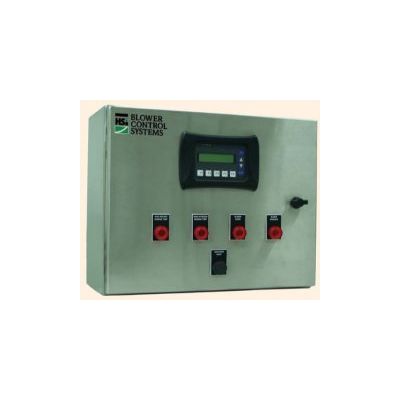

The HSI CP 1100 PLC controller was developed to operate HSI MC Series (Multistage Centrifugal) type blowers as a cost effective control system which offers protection and simple flow control capability. It has a built-in two line text display for viewing monitored points and changing parameters.

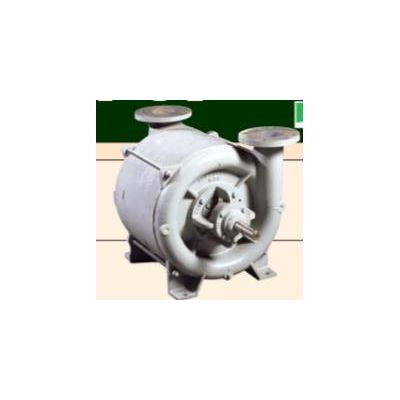

 HSI offers a full range of multistage centrifugal products with 13 models to choose from. We have the right blower for your application today and our Research and Development department is developing new models to meet your needs tomorrow. Product performance ranges up to 25 PSI (1.7 Bar) pressure or to 18 inHg (457 mmHg) vacuum and flows from 100 to 40,000 CFM (170 to 70,000 m3/hr). HSI manufactures blower and process control systems as well as provides complete blower packages with accessories to meet a wide variety of applications.

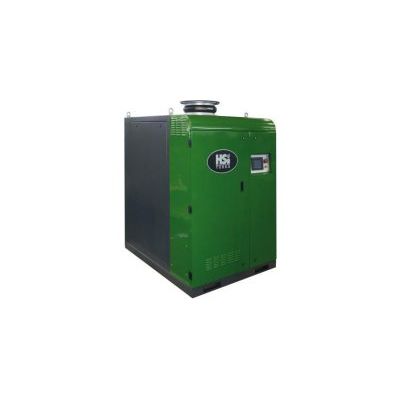

HSI offers a full range of High Speed Turbo Blowers with over 10 models to choose from. We have the right blower for your application today and our Research and Development department is developing new models to meet your needs tomorrow. These revolutionary air bearing designs are supported on a single shaft with integrated variable frequency drive and motor that offers high efficiencies, lower sound, and virtually no maintenance. Flow ranges from 10 to 10,000 SCFM ( 15 to 15,000 m3/hr). and pressures to 25 psi (1.7 bar) through the entire range of operation.

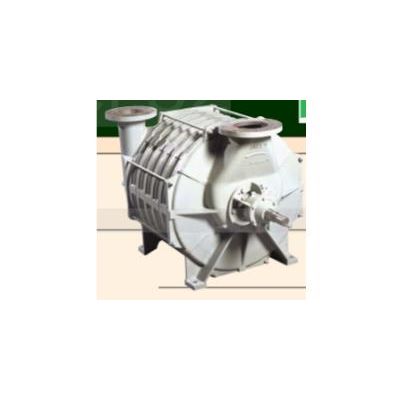

Number of Stages  1 through 10. Inlet Connection  6 (1524 mm) flange, ASA 125# / ANSI 150# drilling. Outlet Connection  5 (1270 mm) flange, ASA 125# / ANSI 150# drilling. Operating Speed  3550 RPM (60 Hz), 2960 RPM (50 Hz). Casing Pressure 20 PSIG (141 kg/cm2). Seals (air)  Labyrinth type. Seals (gas)  Stuffing box type/custom available. Bearings  Ball, 10-year minimum life per AFBMA L10 standard. Lubrication  Grease (oil available). Impeller Diameter  2200 in (5588 mm). Impeller Tip Speed  341 ft/s (104 m/s) @ 3550 RPM. First Critical Speed  4505 RPM (10-stage). Drive Type  Direct coupled or Belt driven, Inlet driven (standard) or Outlet driven. Shaft End  1625 in (4128 mm) diameter at coupling. Vibration Tolerence  25 in/s (64 mm/s) ISO overall specification, 125 mils (003 mm) peak to peak. Rotor Balance  Military standard 167-1 Individual impellers and rotating assembly dynamically balanced.

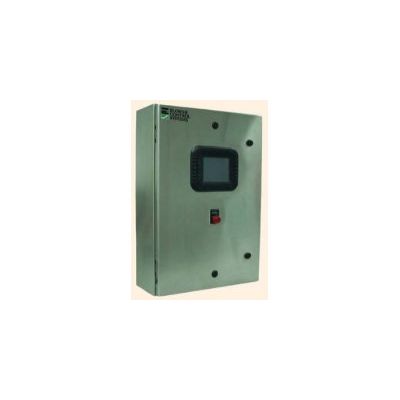

The HSI CP 3100 PLC controller enhances operation of Multistage Centrifugal type blowers by controlling blower output through a variable frequency drive without the need for a flow meter.Using HSFs proprietary multi-algorithm program, this controller can calculate flow more accurately than traditional insertion type flow meters while achieving better reliability with more stable input devices. This controller incorporates a VFD to improve efficiency at reduced flow and increases flow ranges from 100% to as low as 30% of maximum flow.

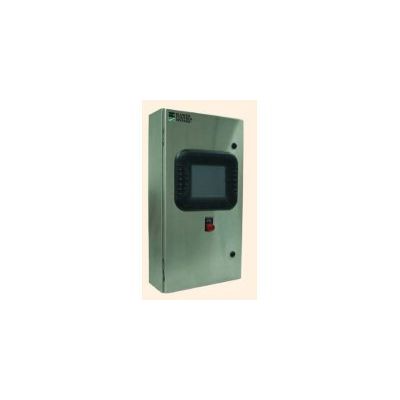

The HSI CP 5100 is a controller that combines the full functions of the HSI CP 4100 Sequencing Panel and adds the ability to control most wastewater process systems. The CP 5100 is fully plug and play compatible with HSI Local Control Panels of MC Series (Multistage) and HT Series (Turbo) type of controllers. HSI can also customize to control other types of centrifugal blowers.

The LFx compact oil-free piston industrial compressor range offers small-capacity piston compressors for reliable and oil-free solutions. Ideal for your low air demands.

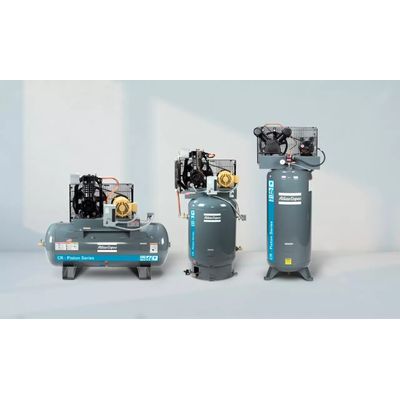

Explore our complete range of piston air compressors for every application and benefit from our team's knowledge in setting up your compressor installation.
