Avantes BV products

Meet the NEXOS, the next-generation photonics backbone spectrometer designed to empower a wide range of applications in various industries. This device is manufactured with Avantes’ newest automation techniques to ensure superior inter-instrument reproducibility. Discover how this innovative spectroscopy instrument will empower your application! lower than 0.17% and weighs only 174 grams. Easy to take anywhere you like.

Meet the AvaSpec-Mini; a compact, versatile, USB-powered spectrometer, available in several versions. These compact units only have the size of a deck of cards, with excellent temperature and wavelength stability. These instruments are easy to take anywhere you like and are very well-suited for handheld applications.

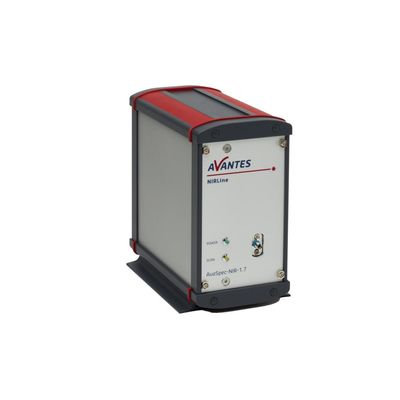

For measurements in the near-infrared range up to 1.7 µm, Avantes offers a new series of uncooled spectrometer configurations. The AvaSpec-NIR256-1.7-EVO and the AvaSpec-NIR512-1.7-EVO offer the same high-sensitivity optical bench, but with the next generation of electronics. Both instruments deliver the same exceptional performance specifications, such as a sample speed of only 0.53 ms/scan and integration times as fast as 10 µs, as the Avantes instruments you have come to trust.

For measurements in the near-infrared range up to 1.7 µm, Avantes offers a series of cooled spectrometer configurations. The AvaSpec-NIR256-1.7-HSC-EVO and the AvaSpec-NIR512-1.7-HSC-EVO offer the high-sensitivity 100mm optical bench (HSC) with the next generation of electronics (EVO). e single USB 2.0-cable.

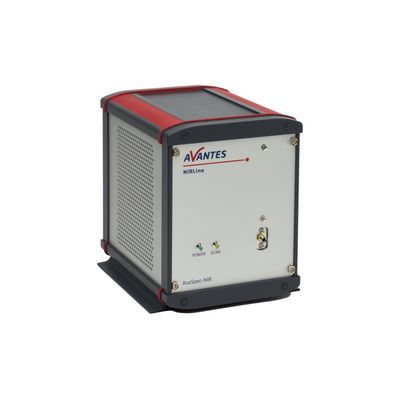

The new and improved versions of our NIR spectrometers offer higher sensitivity, lower weight, and a smaller size. They are based on a 100mm optical bench with an NA of 0.13, offering optimum balance between resolution and sensitivity.

The AvaSpec-HERO is the answer for those who are in need of high-resolution and high sensitivity! This spectrometer combines the best of both worlds, so no compromise is needed.

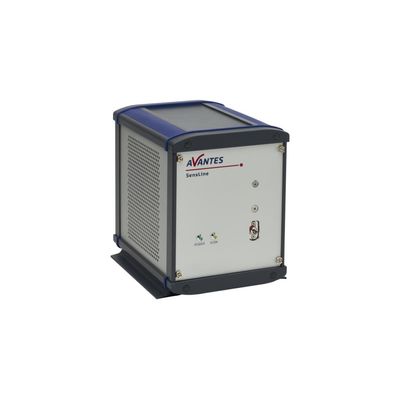

The AvaSpec-ULS2048x64TEC-EVO is an updated version of our AvaSpec-ULS2048x64TEC spectrometer with improved electronics and cooling. This instrument enhances the SensLine series with its cooled, back-thinned detector. The back-thinned detector has a high level of sensitivity in the UV and IR regions. The 64-pixel height (0.89 mm) enables catching as many photons as possible, while the cooling allows for long integration times of up to 120 seconds with low noise levels.

For high-sensitivity applications where high resolution is not of paramount concern, the AvaSpec-HS2048XL-EVO is an exceptional instrument. Featuring Avantes’ HS optical bench, which has a full 0.22 numerical aperture for superior throughput, the AvaSpec-HS2048XL has a back-thinned CCD detector with 2048 pixels measuring 14×500 microns.

With its versatile and flexible design, the VARIUS allows for analyzing a wide range of samples and measurements, allowing you to gain insights into your research or application quickly. The VARIUS spectrometer is available in standard and industrial (OEM) variations. It comes with a choice of a 2048 or 4096-pixel detector and features USB3 and Gigabit Ethernet high-speed data transfer. The OEM variation has a sturdy steel housing with electromagnetic shielding, specifically designed for seamless integration into your device or system.

The VARIUS OEM spectrometer represents the pinnacle of integration-friendly design, offering unparalleled adaptability for embedding into both existing and new (OEM)systems. Tailored for a wide range of applications, the OEM variant of the VARIUS™ stands out with its robust and efficient features.
