AWT Global LLC products

AWT’s S1L Series PIM analyzers are fully conform to PIM standard IEC62037. These PIM testers have a very low noise floor, are very sensitive and  come with a wealth of other features. PS1L analyzers are the ideal PIM test equipment choice for laboratory and QA.

AWT’s PIM S1L TETRA and UHF analyzers are important for analyzing telecommunication infrastructure like antennas, cables and components.  These very accurate PIM analyzers come with a wealth of standard features and measurement capabilities.

Production testing requires fast and highly reliable PIM analyzers. As the spectrum of manufactured products widens, PIM analysis may have to be performed on additional frequencies. Our Expandable PIM Analyzer is can be equipped with one to four different RF Units.Expandable PIM Analyzer for Manufacturing and Laboratory.

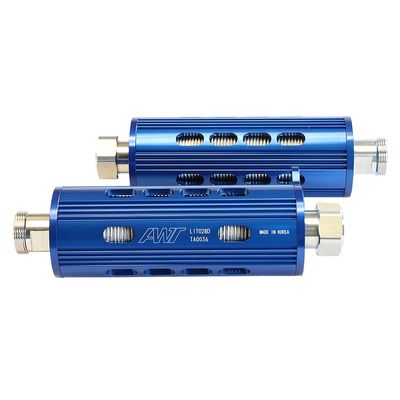

AWT Global’s PLOAD50 series of low PIM loads / terminations have been designed with demanding test and measurement (T&M) applications in mind. These low PIM loads are well trusted by customers and are used in the field and the laboratory. Our  50W loads offer PIM ratings better than -165dBc @ 2x43dBm (PLOAD50 / -38). They come also with two connectors, DIN 7/16 (m) and DIN 7/16 (f), a very convenient feature. It does not require adapters when testing mating with components of different connector genders has to be conducted. The load has an ear for carabine or lanyard.

AWT’s PLOAD100 low PIM loads / terminations have been designed with demanding test and measurement (T&M) applications in mind. These ultra low PIM loads are well trusted by customers worldwide, who use them in their laboratories and manufacturing lines. Our 100W loads offer excellent PIM ratings better than -165dBc @ 2x43dBm (PLOAD100 / PLOAD100-38). They come with DIN 7/16 (m) connector and offer a carrying handle for convenience.
