Controller Area Network (CAN) is widespread in automation technology. CAN topology is based on a line structure and uses twisted wire pairs for data transfer. CANopen is a higher-layer protocol based on CAN. The standardized protocol offers very flexible configuration options. This bus controller makes it possible to connect up to 253 X2X Link I/O modules to CANopen. A transition between IP20 and IP67 protection is possible by directly connecting X20, X67 or XV modules to one another at distances of up to 100 m each across control cabinet boundaries as required. All CANopen operating modes such as synchronous, event and polling are supported as well as PDO linking, life/node guarding, heartbeat, emergency objects and much more.

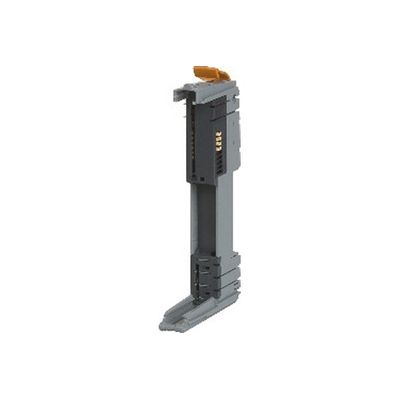

Basis for all power supply modules; For creating potential groups. The internal I/O power supply is interrupted to the left. The bus module is the base for all power supply modules.

Remote valve terminal connection, 8 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pins 22, 23, 24, 25, X2X Link, electrically isolated, IP20 protection, order 1x terminal block 0TB1111 separately!

The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free. The X20CP0410 is equipped with an ARM Cortex-A9 166 MHz compatible processor, 128 MB RAM and 256 MB built-in flash drive. The FRAM for storing remanent variables has 8 kB available. With Ethernet, USB and RS232, the controller offers plenty of communication options. An optional RS485 or CAN interface is available.
