Baofeng Roller products

BAOFENG is specialized in the sales of hollow rolls. Hollow rolls are perfectly suited for use in Mixing Mills in the rubber industry. The wear resistance increases the economic efficiency of the process. Additional advantages of these high-quality rollers are longer maintenance intervals, lower repair costs, and lower energy consumption.

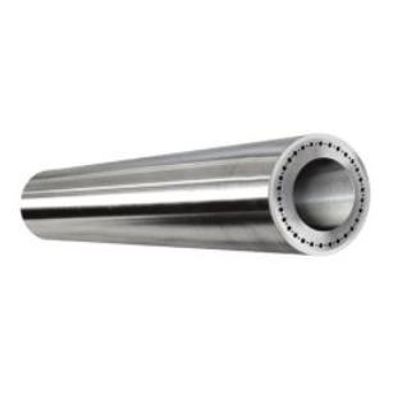

BAOFENG is specialized in the sales of drilled rolls. Drilled rolls are perfectly suited for use in Mixing Mills, Internal Mixer, and Refiner Mills in the rubber industry. One of the biggest advantages of Drilled Rolls is the cooling ability, it has 1-3 holes inside of the roll body. The users can adjust the temperature through the holes easily.

Item: Centrifugal Alloy Roll. Diameter: φ360 - 860 mm. Surface hardness: HS70-75. Roughness: 1.6 - 0.02. Roll Width: 1000 - 8000 mm.

Item: Centrifugal Alloy Roll. Diameter: φ360 - 860 mm. Roll Surface Hardness: HS70-75. Tooth Rotation Angle: 0-10°. Roller Surface Width: 1000-8000 mm.

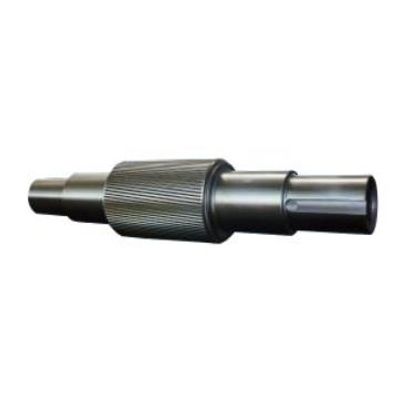

BAOFENG is specialized in the sales of cracking rolls. Cracking rolls are used for breaking the product. These rollers are mainly used in crushing mills for the rubber reclaim industry. The wear resistance increases the economic efficiency of the machining process and the breaking performance is the best.

Calender rolls are used to produce paper. The calendering process of smoothing and compressing a sheet of material by passing it through a number of pairs of heated rolls is widely used in producing paper and plastic sheeting to provide it with the demanded surface finish.

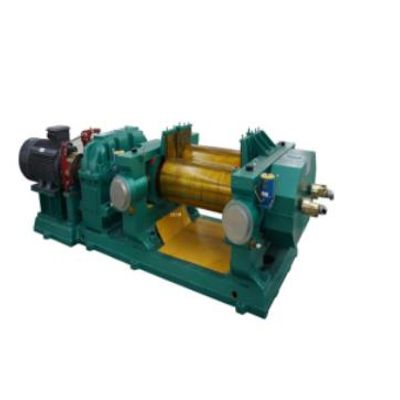

Model: XKJ - 480 x 870. Roll: Centrifugal composite casting. Roll surface layer: High NiCrMo alloy.

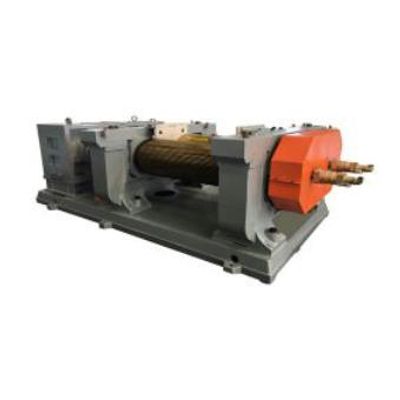

Refiner Mill XKJ 480 x 1200. Model: XKJ - 480 x 1200. Roll: Centrifugal composite casting. Roll surface layer: High NiCrMo alloy. Cooling down method: Surrounding hole water circulation cooling.

Roller adopts composite technique structure, the 50mm under the roller surface is cooling water groove, the cooling effect of the roller is very remarkable. Roller body is made of steel, surfacing welding wear-resistant alloy. Good welding performance, convenient surfacing repair. High level of automation. The machine adopts an electric nip regulating device and electric refuelling which operates easily. The whole machine adopts the modular structure, which is convenient for repairing and maintenance.

Motor: 6-220Kw. Reducer: ZSY500-31.5-. Main Roller Diameter(Groove): 660mm. Assist Roller Diameter: 610mm. Roller Length: 1100mm.
