BASI Instrument AB products

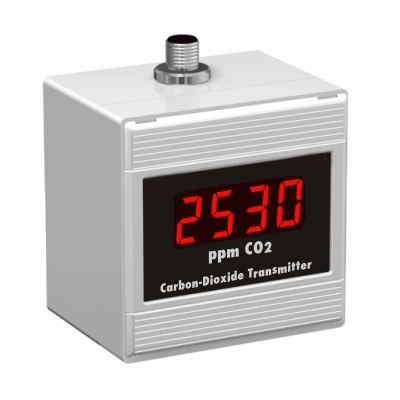

The BPHG100 CO2 Transmitter is engineered to measure carbon dioxide concentrations in indoor environments, converting the data into standard current or voltage outputs. Featuring a dual non-dispersive infrared (NDIR) sensor, it offers enhanced accuracy, sensitivity, and resistance to temperature and humidity variations. It is designed with flexibility in mind, offering optional 4-digit LED displays and RS232 serial interface. The BPHG100 can be installed via free or duct mounting with either top or bottom connectors. Its application spectrum includes indoor air quality control, ventilation, air conditioning systems, and industrial processes like mushroom cultivation. This makes it an essential tool for efficient monitoring and controlling of atmospheric conditions in various scenarios.

The BLC101 is an electronic level controller designed for cost-effective liquid level management, compatible with DIN-rail and panel mounting systems. It functions by measuring the electrical conductivity between electrodes or between an electrode and a metal vessel, ideally serving industries such as chemical, paper, food, wine, and biotechnology where liquids with high conductivity are prevalent. The BLC101 can be programmed to monitor up to three fixed liquid levels, utilizing corresponding relays for drainage or supply control. It also offers the possibility of configuring as a drainage or supply level controller with an alarm relay. A high-tech microprocessor ensures the device's accuracy and stability, while preventing potential electrolytic polarization. Users can easily adjust the output activation threshold, and the integrated LED indication provides clear status reporting. This versatile controller addresses a wide range of level-related applications.

The BFC210/211 from BASI is a programmable flow controller engineered for managing low-viscosity, clear, or translucent liquids that allow infrared light transmission. It incorporates a rotor for volume measurement, an infrared sensor, and advanced electronics to facilitate precise flow measurement and control. The device is constructed with materials like PVDF, Vectra®, Viton®, and EPDM, providing significant thermal resistance up to 90°C. The controller is particularly versatile due to a special variant that ensures enhanced chemical resistance, broadening its application range. Additionally, the BFC210/211 features a user-friendly local 3-digit LED display and a hidden key for programming ease and monitoring. It supports TTL pulse output and offers PNP or NPN alarm functions, activating when set alarm thresholds are exceeded. Suitable for water treatment and diverse industrial processes, it can serve as a flow meter, transmitter, or alarm unit.

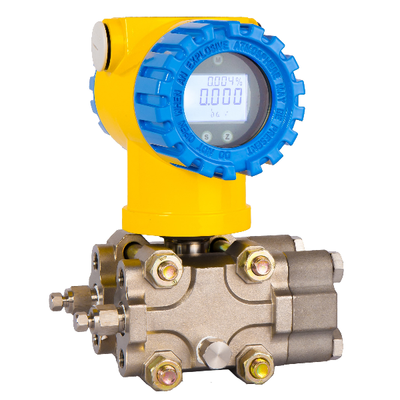

The BASI BPT363D Differential Pressure Transmitter is a technologically advanced, two-wire instrument designed for precision measurement applications. Featuring two external seals, this smart transmitter provides exceptional accuracy and integrity of signals, making it an essential tool for applications requiring a reliable interface between field measurements and control room monitoring. The digital technology embedded within the BPT363D ensures precise data transmission and seamless interaction with existing control systems. This transmitter is tailored for differential pressure applications, offering a robust solution for environments necessitating high fidelity in pressure differential readings. Whether used in industrial, environmental, or experimental settings, its design supports versatile applications in pressure, pressure level, and differential pressure measurement, making it a critical component in maintaining operational reliability and efficiency.
