BASi Research Products products

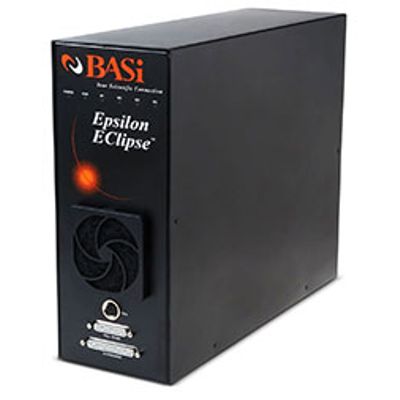

The Epsilon EClipse is the latest electrochemical analyzer manufactured by BASi. It is a potentiostat/galvanostat with a second working electrode for bipotentiostat measurements. Software with the most popular electrochemistry techniques is included with the instrument.

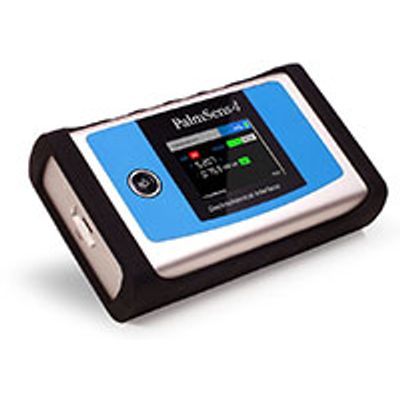

The PalmSens4 is a potentiostat and galvanostat with optional electrochemical impedance spectroscopy (EIS). It has low noise, high current resolution, and a large potential range. It is a complete laboratory instrument with a rugged design that is ideal for field work. This portable instrument has 4 GB of internal data storage and built-in Bluetooth communication which enables the device to be controlled with PSTrace PC software or an Android app called PSTouch. PSTrace is included with the instrument and PSTouch is available for free download in the Google Play store.

The MF-SPEC-ECKIT is a customized kit made for our pre-existing or new PalmSens customers wanting to expand their electrochemical research with UV-Vis spectroscopy. This kit will allow users to conduct fully synchronous and in-situ analysis for electrochemistry along with UV-Vis Spectroscopy in the wavelength range of 200-1100 nm. The PSTrace software from PalmSens will show the hybridized curve for both measurements. The kit is fully equipped with deuterium-halogen light source, optical bench, set of fiber optics cables, a cuvette holder (10 mm path) for dark light subtraction, and more.

The C-3 Cell Stand is a Faraday cage with integrated magnetic stir plate and purge lines. It firmly holds BASi electrochemical cell components and enables remote stir and purge control via the software. The C-3 cell stand package is perfect for setting up a new lab for electrochemistry experiments because it comes with all the necessary accessories.

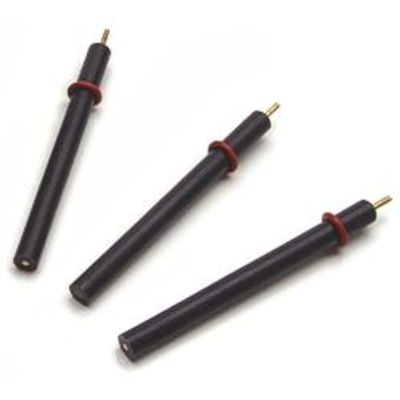

These disk electrodes are small and easy to use. All are manufactured in a solvent-resistant PCTFE plastic body (7.5 cm length x 6.35 mm OD) which is embedded with highly polished disks of various electrode materials (glassy carbon, gold, platinum, palladium, nickel, or silver). There is also an electrode body designed for use with carbon paste (also available from BASi) or new composite materials of your own design and an electrode body designed as a working electrode holder with an alligator clip. A brass rod (1/16”) mounted in the plastic body of the electrode is used to connect these electrodes to an appropriate instrument using either an alligator clip or a 0.060" gold-plated female connector (MF-2004). Each electrode comes with a silicon O-ring which fits snugly on the plastic body. By rolling the O-ring to different positions, you can change the depth of the electrode mounted in an electrochemical cell. Surfaces are polished to a mirror finish and easily maintained with the BASi® PK-4 polishing kit, which is sold separately.
