Submersible motor mixer with 400V/50Hz submersible motor, 1450 min-1. Two-wing thrust propeller - stainless steel. Mounting bracket with grade adjustment - in stainless steel. Planetary gears, mechanical seal in oil bath, safe from running dry. Thermal winding protection (PTC / PTC resistor). Temperature class H, media temperature 65°C. Sealing sensor for planetary gear. 12 m cable 12x2,5 in especially durable design with traction relief and 6m cable protective tube - without plug. Motor protection is guaranteed only with original BAUER control unit (accessory) with built-in thermal tripping relay for PTC thermistor detectors and overcurrent relay.

Bauers pump series impresses with outstanding performance, many fields of application and longevity.

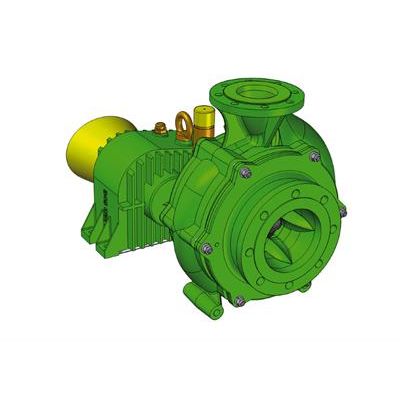

Tractor gear pump with adjustable cutter flange. Spiral housing of grey cast iron. Suction flange with ribbed inlet. Thick matter impeller of spheroidal graphite iron with hardened cutting edges. Cutting plate and wear plate of spheroidal graphite iron. Spur gearing with case-hardened helical angular teeth. Case-hardened pump shaft w. Helical angular teeth and with angular contact ball bearings and cylindrical roller bearings. Mechanical seal (silicium carbide) with oil reservoir. Rinsing connection with geka coupling. Suction/delivery connection dn 150/100.

Tractor gear pump with adjustable cutter flange . Spiral housing of gg25 . Suction flange with ribbed inlet and irrotational function . High consistency impeller with blades - 2600min-1. Thick matter impeller of spheroidal graphite iron with hardened cutting edges. Cutting flange made of chromium steel casting. Compact spur gear box with hardened helical angular teeth. Mechanical seal (silicium carbide) with oil reservoir. Rinsing connection with geka coupling. Suction connection dn 150. Delivery connection din 100. Drive shaft 1 3/4" with profile to din 6911 (iso 500). Attention: Use only PTO shafts with shear pin coupling!
