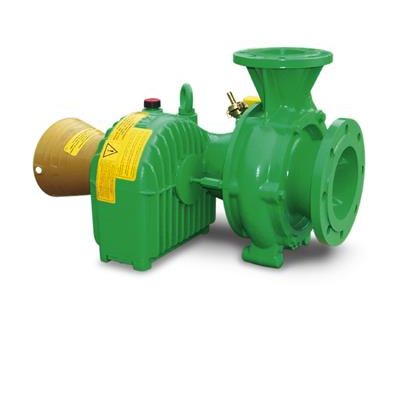

Magnum - Model SM 540 -Surface Pumps

Tractor gear pump with adjustable cutter flange. Spiral housing of grey cast iron. Suction flange with ribbed inlet. Thick matter impeller of spheroidal graphite iron with hardened cutting edges. Cutting plate and wear plate of spheroidal graphite iron. Spur gearing with case-hardened helical angular teeth. Case-hardened pump shaft w. Helical angular teeth and with angular contact ball bearings and cylindrical roller bearings. Mechanical seal (silicium carbide) with oil reservoir. Rinsing connection with geka coupling. Suction/delivery connection dn 150/100.
