Bea Technologies Spa products

Single bag filter housings suitable for filtration of non-hazardous fluids. BAC-11/12 housings are designed to install BEAFELT, BEAFINE or BEA-MESH sizes 1 and 2 filter bag which are available in wide range of materials and filtration grades. V-clamp housing closure allows easy and quick operation for filter bag replacement.

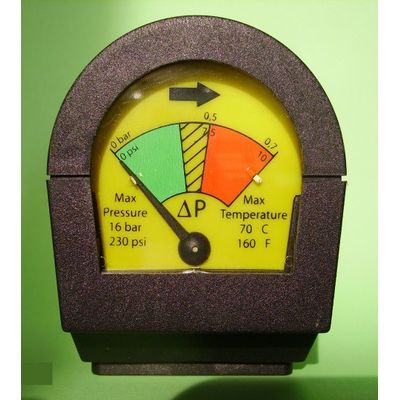

XAM-200 is designed to measure the differential pressure between inlet and outlet of AIR-VIP and VACUUM VIP filters. No pressure behind the window. Potential-free contact for model XAM 200 EC. The fluid doesn’t enter in contact with the window. Easy readable from both sides. Indoor installation.

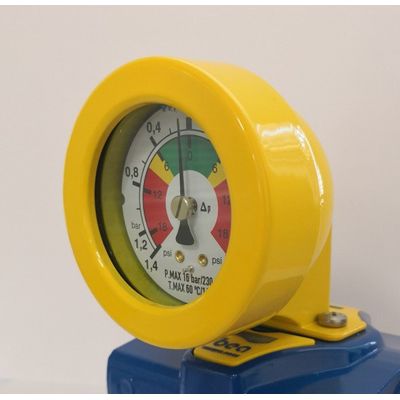

XAM-100-Evo differential gauge measures the differential pressure between the inlet and the outlet for the AIR VIP and AIR VIP Evo series. With the scale centrally set at “ 0 “ the gauge can be mounted with a rotation of 180°. The gauge can be mounted without taking into account the flow direction. Suitable for outdoor installation, see the below limits.

BEA Technologies designs and manufactures fully automated AMINE filtration packages for the removal of solid contaminants, cook fines, acid condensates from the amine solution circulating in gas sweetening plants. The filtration of amine solution serve to protect internal critical parts of re-boilers and injectors from corrosion damages. The filter packages are manufactured in carbon steel or S.S.316L according to specifications and provided of actuated valves for an easy operation of package which is controlled by PLC. The system is using gas assisted technology for the regeneration of the filter elements from retained contamination.

ARS-RB /RA filtering elements are manufactured to remove aerosol oil and solid particles from compressed air and gas. High separation efficiency. Low pressure drops, Energy saving. Stainless steel metal parts. O ring for radial sealing.

Micron ratings from 1 to 200. 7 industry standard sizes. Good chemical compatibility. High flow- low pressure media. Sewn or welded construction. Handles on all bags. Special features & materials available|. Choice of metal ring tops or molded tops.

Micron ratings from 1.0 to 25.0. 7 industry standard sizes. High flow – low pressure drop media. Wide chimica compatibility. Excellent oil absorbing capabilities. Optional extended life feature. Handles on all bags. Choice of metal ring or molded tops.

In pharmaceuticals and aseptic packaging environment the filtration  devices have to be tested before and after use to verify the performances of the filtration process. Beamatic 3.0 is the new innovative integrity test instrument available on the market, designed to work in protected areas , labs and controlled environment, to determine the integrity of a filter element. The main benefits are: wide test capability and results storing, accuracy of results and time saving.

Micron ratings from 5 to 1000. 7 industry standard sizes. High flow - low pressure drop media. Choice of metal ring tops or molded tops. Non-fiber releasing media. Sewn construction. Handles on all bags.

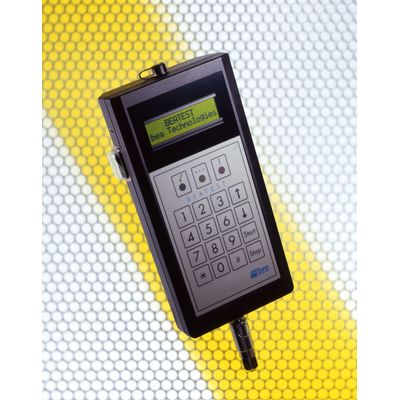

BeaTest is a portable device designed in a reliable and economical way to check the integrity of the membrane filter systems, using decay pressure test. The stored data can be loaded and printed when linked to any PC.
