Bermad , Inc. products

The BERMAD Hydraulic Control Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to a local or remote pressure command.

The BERMAD Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure.

The BERMAD Model IR-123-54-X is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure and reduces downstream pressure to a constant preset maximum. It is a Normally Closed valve, which opens in response to a remote pressure rise command and shuts in the absence of that command.

The Bermad Model 700-2S Hydraulic Control Valve with Independent Lift Check is a hydraulically operated, diaphragm actuated control valve with an integral, lift type, spring loaded non return valve that opens to allow flow in the required direction and smoothly closes drip tight to prevent back flow.

The Model 720 Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure.

The Model 820 High Pressure PN 40, Pressure Reducing Valve is a hydraulically operated, piston actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure.

The Model 730 Pressure Relief/Sustaining Valve is a hydraulically operated, diaphragm actuated control valve that can fulfill either of two separate functions. When installed in-line, it sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a circulation valve, it relieves excessive line pressure when above maximum pre-set.

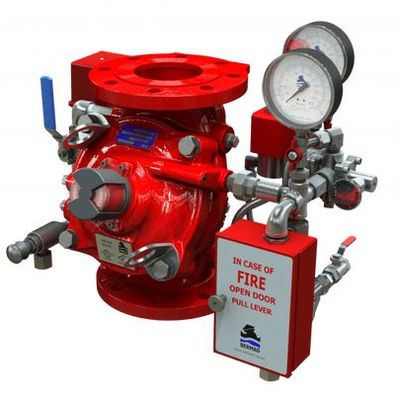

The BERMAD model 400Y-3UM is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards. The 400Y-3UM is activated by a 3-way solenoid valve, which actuates a latching relay valve, to open the main valve. Once open, the main valve will not close until locally reset. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems. The 400Y-3UM is ideal for systems with open nozzles for water or foam discharge, available with electric components to suit any hazardous location.

The BERMAD model 400Y-6M is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-6M is activated by a 3-way solenoid valve which in turn activates a pneumatic relay valve that latches the main valve open until locally reset. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems. The 400Y-6M is ideal in systems with open nozzles for water or foam discharge, and is available with electric components to suit any hazardous location.

The BERMAD Model FP 400E-1M Classic Deluge Valve includes a Manual EsayLock Reset for latching the valve open in response to an electric, hydraulic, pneumatic, or electro-pneumatic signal.  The Deluge Valve resets to the closed position only upon local manual reset activation.
