Bhoomi Process Management Pvt. Ltd. products

Combustion - Portable Flue Gas Analyzers

Agasthya - Model 2017 Series- BI 100 (O2) - Portable Flue Gas Analyzer

Agasthya 2017 Series Portable Flue Gas Analyzer BI 100 is single gas analyzer which measure O2 gas. Easy to maintain and service from user point of view, the analyzer is customizable to specific measurements and process stream conditions. A resilient stainless steel probe with thermocouple and condensate trap extracts the gas sample from stack / duct. Agasthya 2017 Series Portable Flue Gas Analyser has long-life, eight-hour battery charge. It can be started up and ready to measure within minutes. It is supported by automatic zero calibration and continuous system diagnostics to maintain excellent analytical performance throughout its operation. Robust and lightweight, is easy to transport and use.

Combustion - Insitu Zirconia Oxygen Analyzer

Agasthya - Model 2013 Series - BI 2100-S - Insitu Zirconia Oxygen Analyzer

The Agasthya 2013 Series Insitu Zirconia Oxygen Analyzer BI 2100-S is designed for Combustion Process & Emission Monitoring where flue gas temperature is upto 700 deg C. It provides accurate measurement of excess oxygen in flue gas of combustion processes. Optimal combustion efficiency is achieved by maintaining the ideal level of oxygen in the flue gas.

Emission - Emission Monitoring System

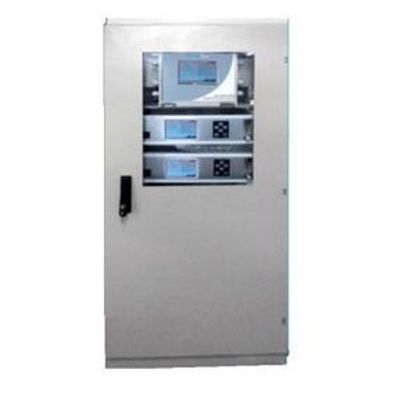

Agasthya - Model 2013 Series -BI 7000 - Integrated Continuous Emission Monitoring System with SCU & Heated Probe & Sample Tubing

The Agasthya 2013 Series Continuous Emission Monitoring System BI 7000 is designed in compliance to emission norms to measure gases pollutants emitted by various process industries and to meet the needs of organizations requiring cost effective and reliable multiple gas analyzer solutions.

Emission - Dust Monitors

Agasthya - Model 2013 Series -BI 7000 - Dual Pass Transmissometer Dust Monitor

Agasthya 2013 Series Dual Pass Transmissometer Dust Monitor BI 7000 is an optical instrument designed to measure the concentration of dust or particulate matter suspended in exhaust gas passing through a duct or stack of industrial process.

Emission - Stack Flowmeter

Agasthya - Model 2013 Series-BI 7300 - Stack Flowmeter

BI 7300 Stack Flowmeter is used for continuous measurement of Velocity in stack using Multiport Pitot Tube. It is based of differential pressure – flow measurement principle and compensated for pressure and temperature. In addition to velocity; temperature, static pressure and flow rate of emission gases can also be measured.

Emission - Ambient Air Quality Monitoring

Agasthya - Model 2013 Series- BI 9000 - Continuous Ambient Air Quality Monitoring System

The Agasthya 2013 Series Continuous Ambient Air Quality Monitoring System BI 9000 delivers accurate measurement data in real time for a wide range of air quality criteria in a compact and modular package.

Agasthya - Model 2013 Series - BI 9100 - Portable Ambient Air Quality Monitoring Analyzer

The Agasthya 2013 Series Portable Ambient Air Quality Monitoring Analyzer BI 9100 delivers accurate intermittent measurement data in real time for a wide range of air quality criteria in a compact and modular package. Measurable parameters include Ozone (O3), Nitrogen Dioxide (NO2), Nitric Oxide (NO), Carbon Monoxide (CO), Carbon Dioxide (CO2), Sulphur Dioxide (SO2), Hydrogen Sulphide (H2S) and other toxic gases.

Process - Trace Oxygen Analyzer

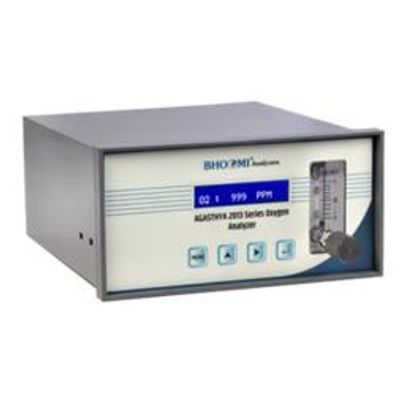

Agasthya - Model 2013 Series- BI 300 - Trace Oxygen Analyzer

Agasthya 2013 Series Trace Oxygen Analyzer BI 300 measures Traces of Oxygen in ppm level in process gas. For O2 measurement Electrochemical technology is used. Easy to maintain and service from user point of view. LCD, LED & Touchscreen display available. Analog 4-20 mA output with 2 nos. relay contact. It has 4 different mounting configurations, Wall, Panel, Rack & Tabletop.

Process - Purity Oxygen Analyzers

Agasthya - Model 2013 Series - BI 400 - Oxygen Purity Analyzer

Agasthya 2013 Series BI 400 Purity Oxygen Analyzer measures Oxygen in percent level in process gas. For O2 measurement Electrochemical technology is used. Easy to maintain and service from user point of view. LCD & LED touchscreen display available. Analog 4-20 mA output with 2 nos. potential free relay contact. It has 4 different mounting configurations, Wall, Panel, Rack & Tabletop.

Process - Head Space Gas Analyzer

Agasthya - Model 2017 Series - BI 4000 - Handheld Headspace Analyzer

Agasthya 2013 Series Handheld O2 Headspace Analyzer BI 4000 is specifically designed to test for the presence of oxygen in food packaged under modified and controlled atmospheres.
