Bieler Lang GmbH products

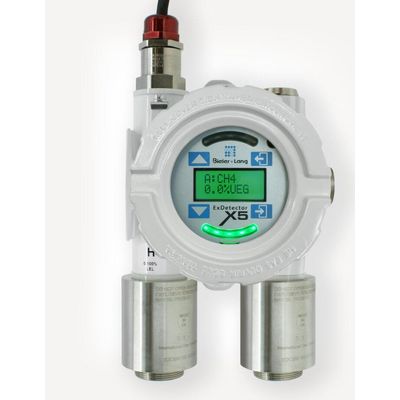

The ExDetector X5 is a gas detector approved for use in explosive environments of ATEX Zones 1 and 2, as well as dust environments of Zones 21 and 22. It measures and displays the current concentrations of explosive or toxic gases and vapors. If required, it can be equipped with two sensor heads simultaneously. This allows the X5 to detect different gases using different measurement principles and sensor technologies at the same time.

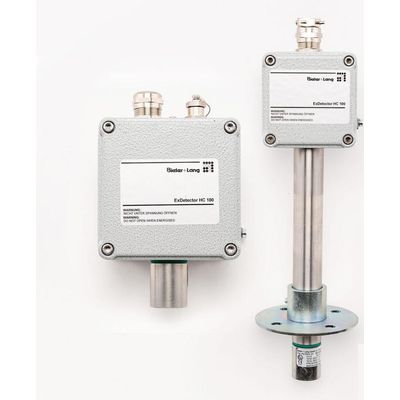

The ExDetector HC 100 sensor measures the current concentration of explosive gases and vapors. The ExDetector HC 100 is used to detect combustible gases and vapors in the measuring range from 0 to 100 % LEL. The measuring principle is based on catalytic combustion (pellistor). With this measuring principle, a large number of gases can be monitored, e.g. hydrogen and hydrocarbons (other gases on request).

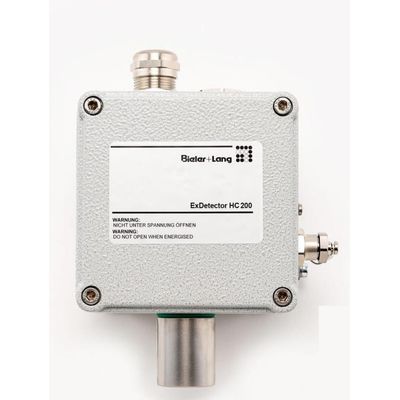

The ExDetector HC 200 probe is used to measure the current concentration of explosive gases and vapors. With the ExDetector HC 200, combustible gases and vapors can be detected in the measuring range from 0 to 100 % LEL. The measuring principle is based on catalytic combustion (pellistor).

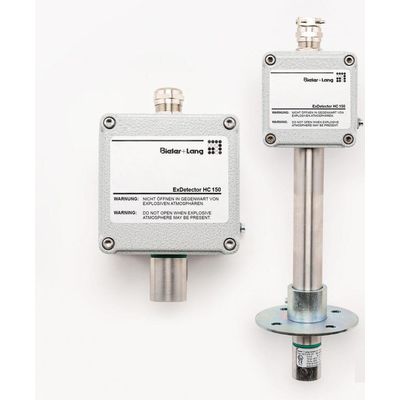

The ExDetector HC 150 is used to measure the current concentration of explosive gases and vapors. The ExDetector HC 150 can be used to detect explosive gases and vapors in the measuring range from 0 to 100 % LEL. The measuring principle is based on catalytic combustion (pellistor). This measuring principle can be used to monitor a large number of gases, e.g. hydrogen and hydrocarbons. It additionally meets all criteria for use in Ex zone 2 and in areas of functional safety according to SIL-1.

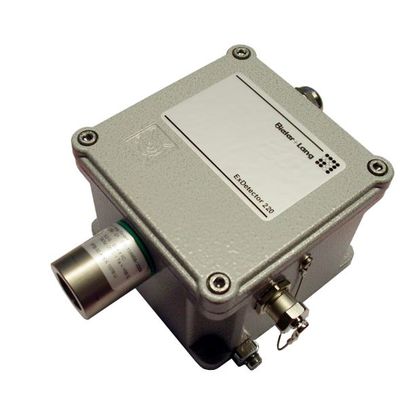

With the ExDetector SC 220, combustible gases and vapors can be detected in the measuring range from 0 to 50 % LEL. A semiconductor gas sensor is used for the measurement, which is very robust. It is often a useful alternative to sensors that cannot be used due to the presence of catalyst poisons in the atmosphere.

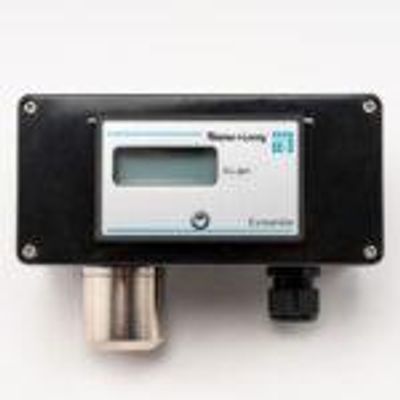

The GasDetector IR 220 is used for the detection of CO² and refrigerants. An infrared gas sensor is used for the measurement.

The GMC 8364 controller is a gas measuring computer mounted in the assembly housing for installation in a control cabinet. Combined with up to 64 detectors with an output of 4-20 mA, the GMC 8364 displays the gas concentration and triggers safety responses if the gas concentration is too high. Up to 48 outputs can be connected to this flexible system with the aid of extension cards.
