Binsack Reedtechnik GmbH products

The VK 1216 plastic float switch is a versatile level detection device suitable for various liquids. Its slim design is ideal for use in tight spaces, making it adaptable for installation in narrow containers. The switch features a screw cap M32x1.5 for rapid and secure mounting. Constructed from durable materials like PA and PP, it ensures reliable performance in temperatures ranging from -20°C to +105°C. The switch is complemented by a robust gasket and offers a user-friendly cabling system. It is part of a broader range of related products, including float switches like the VK1175 and VK 1002, showing a commitment to providing comprehensive liquid level solutions. As a part of a medium-sized, family-run business in the Rhine-Main area with three decades of expertise in reed sensors, the company specializes in creating customized sensor solutions.

The EKA 2070 is a compact, angular reed sensor designed for accurate position detection across varied applications such as machines, doors, and gates. Featuring a small rectangular form of 22 x 13 x 4.5 mm, it ensures flexible installation via two elongated holes, maximizing its adaptability in diverse setups. Constructed from durable ABS material, the sensor is noted for its robust performance in temperature ranges from -20 to 80 °C. The extra flat design makes it an impeccable choice for integration in space-constrained environments. This model aligns with our 30-year heritage in providing tailored sensor solutions, making it a suitable choice for engineers seeking reliable and customizable sensor technologies. As a medium-sized, family-run enterprise located in the Rhine-Main area, we specialize in producing reed sensors for a variety of requirements, ensuring technical excellence and precision.

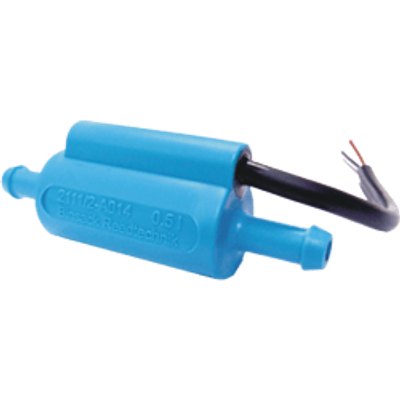

The Flow Switch DFW 4001 is a compact and lightweight flow monitor designed for the efficient detection of liquid flow in piping systems. It operates without the need for a permanent current, making it energy efficient. Featuring a simple switching contact, this device provides a reliable indication of whether liquid flow is occurring, with a threshold of 0.5 liters per minute. It is particularly effective for identifying blockages in pipelines or pump failures, ensuring the safe operation of fluid transport systems. Constructed with durable POM material, the flow switch measures 62 x 22 mm and connects with 6 mm fittings. This makes it an ideal choice for environments where space is limited, yet reliable flow monitoring is crucial. The flow switch forms part of a comprehensive range of sensor products developed by a family-run, medium-sized company based in the Rhine-Main area, known for their expertise in tailored reed sensor solutions over the past 30 years.

The PE Suction Pipe with Float Switch SL 1202 is engineered for applications requiring high flow rates and efficient fluid management. It features integrated level switches strategically positioned to utilize the entire cross-section of the support tube for medium passage, thereby achieving substantial flow rates. Compatible with standard containers through DIN 51-71 screw caps, the lance is versatile and can be customized in length to meet specific customer needs. It can include optional components like a coarse filter and a backflow preventer. With its strong chemical resistance, the suction pipe is suitable for acidic environments, operating efficiently at temperatures ranging from -10 to 80 °C. This product supports 2 to 3 switching points, enhancing its adaptability across various industrial applications. The device, designed using PE and PP materials, offers reliable performance in demanding environments, making it a valuable addition to fluid handling systems.

The NBR foamed plastic float, model KGN 13S-21, is engineered to provide robust performance in various fluid environments. With dimensions of 19 by 22 mm and an inner diameter of 10 mm, this float is designed for compatibility with oil and water applications, operating efficiently at temperatures up to 100°C for oil and 60°C for water. Manufactured from NBR foam, it offers excellent resistance to oils and fuels, making it suitable for usage in environments with exposure to such substances. The product is part of a broader range of tailored sensor solutions from a family-run company established in the Rhine-Main area, which has been specializing in reed sensors and related products for three decades. Known for their customizable and precise sensor offerings, the company has developed a reputation for addressing specific client requirements in various industrial applications, enhancing both reliability and performance.
