Biogest International GmbH products

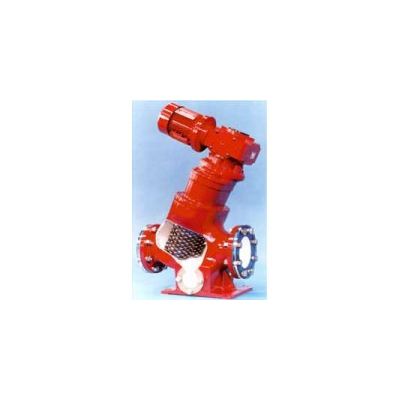

Cutting of coarse solids, which are e.g. parts of hotel waste water. As experience shows, baby diapers, hygiene binding, textiles etc. are here disposed by toilet. These materials would clog the pumps, that is why they must be cut up.

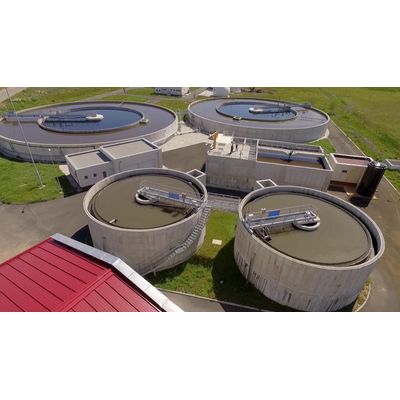

General Features of the SBR Technology for WWTP`s are Extremely effective biological treatment concept. Perfectly useable for domestic and industrial wastewater.

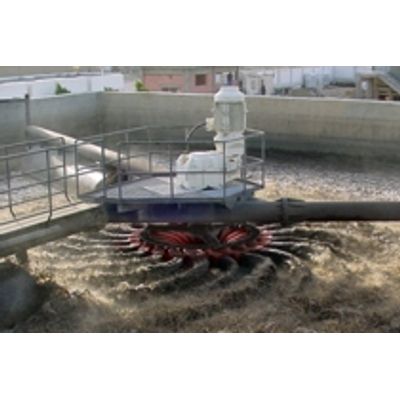

The perfect hydraulic design allows intensive mixing and high oxygen input. Oxygen efficiency up to 2.5 kgO2/kWh in domestic sewage (Alpha (α)-value = 0.9). Oxygen input capacity ranges up to 250 kgO2/h.

Ideal mixing and aeration system for small-sized wastewater treatment plants.No additional air blower required - self suction of air
Completely made of stainless steel (AISI 304 or better). No danger of blockage or plaiting of fibre-solids. Gear-drive requires a minimum of maintenance (only one oil-change every two years). Low speed for “Mixing” (denitrification). High speed for “Aeration” (nitrification). Outstanding high service life of the gear-box bearings (> 150,000 h)..Perfect installation for buffer tanks and sludge storage tanks (mixing and homogenisation). No submerged wear parts.

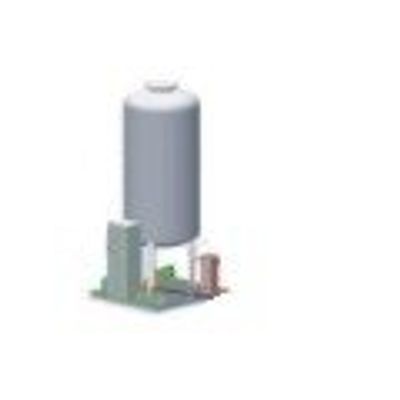

Compact high-performance reactor for the treatment of toxical and COD-polluted wastewater. Patented process for a special wet-oxidation at an extremly low pressure of only 3 bar. CSB reduction and change of toxical components into biologically treatable substances.

Our BSK-decanters also can be used as sludge water discharge systems, to simply remove the turbid water which results from static sludge thickening in sludge storage tanks.

For easy and economic concentration of excess sludge (resulting from activated sludge systems). Completely constructed out of stainless steel (AISI 304 or better).

Own planning, manufacturing and assembly of the control cabinets and local control boxes for the completion of our wastewater treatment plants in accordance with the usual VDE guidelines.The used components of considerable manufacturers, e.g. Siemens, Kraus & Naimer, Moeller, Endress + Hauser etc. are purposefully selected according to the case of application and guarantee a high availability and working reliability. Desires of the customer and requirements of the client for the control, measuring and automatic control are naturally considered. Our switchgear cabinets can be equipped for example with mimic diagrams.We complete our purification plants with our own control panel manufacturing. It is coordinated to the respective tasks and equipped with PC control and control system and connections to remote telecontrol systems if desired.
