Biomass Systems Supply products
Briquetters
Hydraulic Briquetter
Briquetting Capacity: Up to 140 lbs (Up to 63 kg) / Hour.

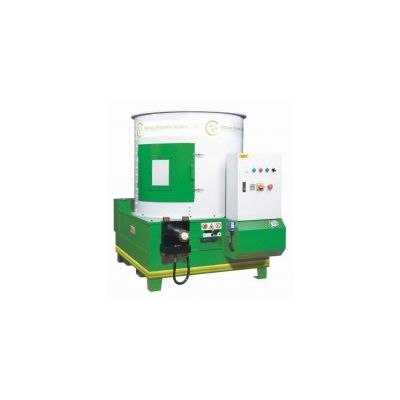

Hydraulic Briquette Press
Biomass Briquette Systems BP-250 is a single 2" diameter hydraulic briquette press. The BP-250 comes complete as shown in the picture to the left, with the main control panel and cooling fan. A PLC controls the operation of the machine, starting with the speed and timing of the feed augers. The hydraulic pack uses one (1) 20-HP motor. Being able to control auger speeds gives the machine flexibility to run different feed stocks and produce different length briquettes. The BP-500 is a dual 2" diameter hydraulic briquette press. The remaining features are the sample as noted for the BP-250 with the exception of the BP-500 hydraulic pack uses two (2) 20-HP motors.
Hydraulic Briquette Presses
Biomass Briquette Systems BP-400 is a single 3" diameter hydraulic briquette press. The BP-400 comes complete as shown in the picture to the left, with the main control panel and cooling fan. A PLC controls the operation of the machine, starting with the speed and timing of the feed augers. The hydraulic pack uses one (1) 20-HP motor. Being able to control auger speeds gives the machine flexibility to run different feed stocks and produce different length briquettes. The BP-800 is a dual 3" diameter hydraulic briquette press. The remaining features are the sample as noted for the BP-400 with the exception of the BP-800 hydraulic pack uses two (2) 20-HP motors.

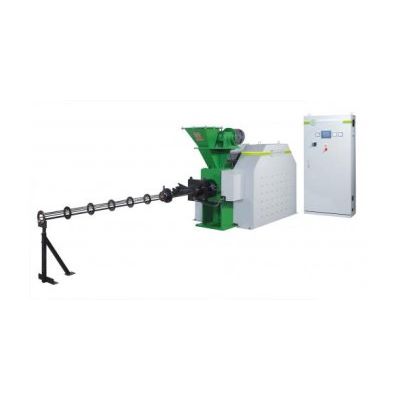

Mechanical Briquetter
Bp-1500 mechanical briquetter; Briquetting Capacity: 1200lbs - 1500lbs (544kg - 680kg) / Hour. Maximum Moisture Rating: 15%.
Grinders

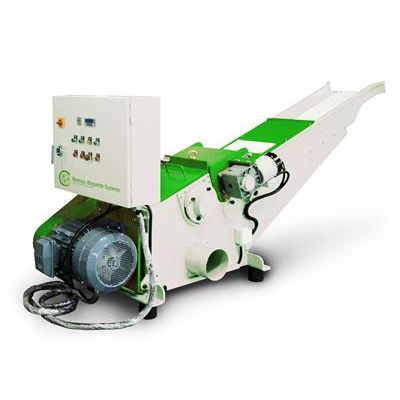

Grinder
Features: * Powerful wood grinder. * The rigid cutterhead allows for heavy-duty crushing and maximum durability. * Ideal for waste wood, MDF and particle board crushing. * One-piece machined cutterhead without welding. * Increased accuracy for knife fastening. * Protection from overload.
Model S400E - Grinder
Features: * Powerful wood crusher. * Available in 30, 50 or 75 HP. * The rigid cutterhead allows for heavy-duty crushing and maximum durability. * Ideal for waste wood, MDF and particle board crushing. * One-piece machined cutterhead without welding. * Increased accuracy for knife fastening. * Protection from overload. * Teeth-back Blade is easy to change without the need of recalibration. * Capable of crushing wood into planned chip shape.
Model S400T - Grinder
Features: * Powerful wood crusher. * Available in 25 or 50 HP. * The rigid cutterhead allows for heavy-duty crushing and maximum durability. * Ideal for waste wood, MDF and particle board crushing. * One-piece machined cutterhead without welding. * Increased accuracy for knife fastening. * Protection from overload. * Suitable for short pieces. * Economic type.
Model S400W - Grinder
Features: * Powerful wood crusher. * Available in 25 or 50 HP. * The rigid cutterhead allows for heavy-duty crushing and maximum durability. * Ideal for waste wood, MDF and particle board crushing. * One-piece machined cutterhead without welding. * Increased accuracy for knife fastening. * Protection from overload. * Feeding by roller and belt.
Model S635 - Grinder
Features: * Powerful wood crusher. * The rigid cutterhead allows for heavy-duty crushing and maximum durability. * Ideal for waste wood, MDF and particle board crushing. * One-piece machined cutterhead without welding. * Increased accuracy for knife fastening. * Protection from overload.
