Model BP-400/BP-800 -Hydraulic Briquette Presses

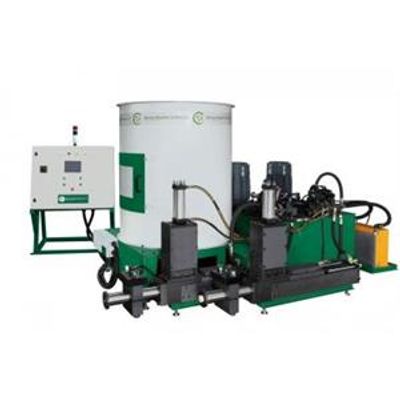

Biomass Briquette Systems BP-400 is a single 3" diameter hydraulic briquette press. The BP-400 comes complete as shown in the picture to the left, with the main control panel and cooling fan. A PLC controls the operation of the machine, starting with the speed and timing of the feed augers. The hydraulic pack uses one (1) 20-HP motor. Being able to control auger speeds gives the machine flexibility to run different feed stocks and produce different length briquettes. The BP-800 is a dual 3" diameter hydraulic briquette press. The remaining features are the sample as noted for the BP-400 with the exception of the BP-800 hydraulic pack uses two (2) 20-HP motors.
BP-400 Specifications:
|
Tank Capacity |
45” (1143mm) Diameter x 53” (1346mm) Height |
|
Maximum Volume of Material (Tank) |
51.3 Cubic Feet—1.45 Cubic Meters |
|
Briquette Size |
3” (76.2mm) Diameter— 3/4”–5” (19.2mm–127mm) Length |
|
Hydraulic Pump Motors |
(1) - 20 HP |
|
Feed Augers |
(2) – ½ HP |
|
Machine Size |
66” (1676mm) L x 44” (1117mm) W x 59” (1499mm) H |
|
Net Weight |
4500 lbs.—680kg |
|
Output Volume |
Up to 400 lbs. (Up to 181 kg) / Hour |
BP-800 Specifications:
|
Tank Capacity |
45” (1143mm) Diameter x 53” (1346mm) Height |
|
Maximum Volume of Material (Tank) |
51.3 Cubic Feet—1.45 Cubic Meters |
|
Briquette Size |
3” (76.2mm) Diameter— 3/4”–5” (19.2mm–127mm) Length |
|
Hydraulic Pump Motors |
(2) - 20 HP |
|
Feed Augers |
(2) – ½ HP |
|
Machine Size |
66” (1676mm) L x 44” (1117mm) W x 59” (1499mm) H |
|
Net Weight |
4500 lbs.—680kg |
|
Output Volume |
Up to 800 lbs. (Up to 362 kg) / Hour |
