Bombas Trief S.L. products

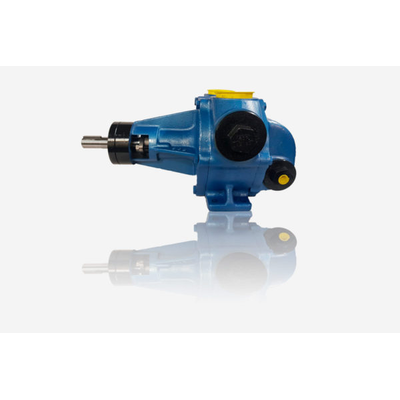

Volumetric self-priming positive displacement vane pump. Robust, silent, with constant flow and high throughput, made from iron and stainless steel. Especially suited to storing of all types of non-abrasive liquids that do not contain particles in suspension. It has two mechanical seals and two bearings

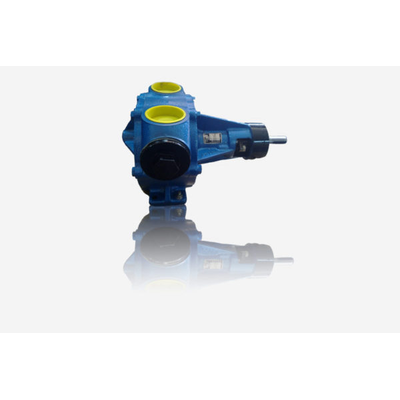

Volumetric self-priming positive displacement vane pump. Robust, silent, with constant flow and high throughput, made from iron and stainless steel. It has two mechanical seals and two bearings. It is coupled to a hydraulic orbit motor. Especially suited to transferring of all types of non-abrasive liquids that do not contain particles in suspension (hydrocarbons, adblue, etc.) into tankers.

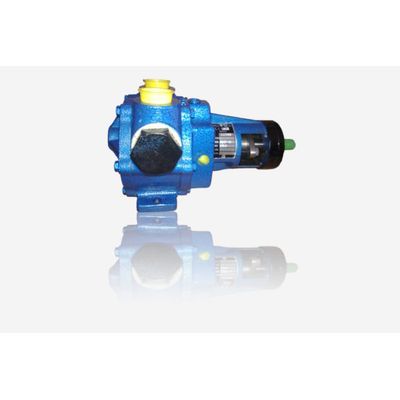

Positive displacement vane pump with built-in heat pump, very useful for when the product being transferred is highly viscous and at high temperatures (up to 250°C). The chamber can be used with hot water, oil or steam. This model can come with gasket or mechanical seal.

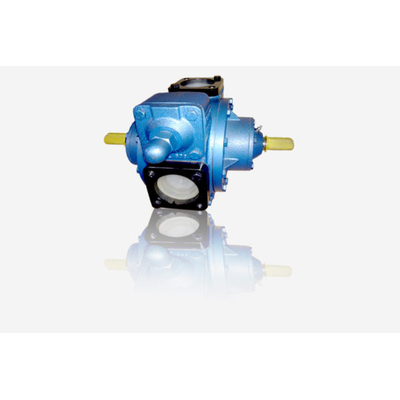

Positive displacement vane pump designed especially to transfer liquid fuels into tanker lorries. Its double axle outlet makes it very versatile. It can be made reversible simply by changing the power take-off (turns clockwise and anti-clockwise). The watertightness of the liquid being transferred is ensured by two mechanical seals.

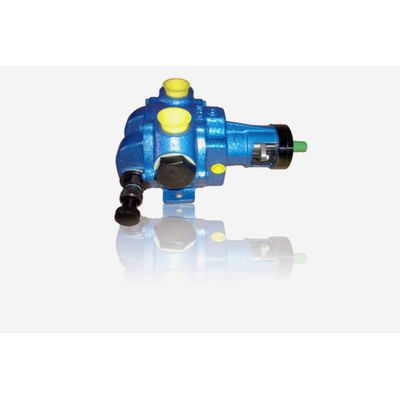

Self-priming, reversible volumetric positive displacement pumps, with strong suction power and a high volumetric efficiency. The AX model is used when the discharge of liquid is free and neither the flow nor the pressure need to be regulated.

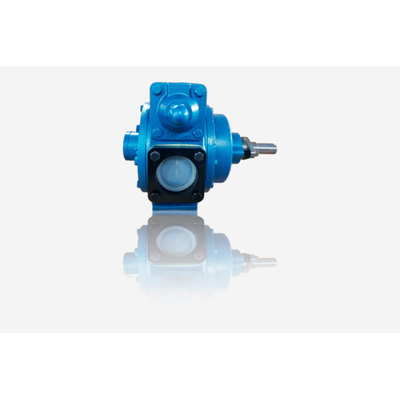

Self-priming, reversible volumetric positive displacement pumps, with strong suction power and a high volumetric efficiency. The ACC model has a built-in safety valve to regulate the flow and pressure.

Self-priming, reversible volumetric positive displacement pumps, with strong suction power and a high volumetric efficiency. The ACP model has a built-in heat chamber which is useful for heating and cooling the product. The chamber is situated on the opposite side from the action.

Self-priming, reversible volumetric positive displacement pumps, with strong suction power and a high volumetric efficiency. The AXP model has a built-in heat chamber which is useful for heating and cooling the product. The chamber is situated on the action side. The placement of the pump facilitates disassembly.

Self-priming, reversible volumetric positive displacement pumps, with strong suction power and a high volumetric efficiency. The ACCP model has a built-in safety valve to regulate the flow and pressure. It also has a heat chamber situated on the action side.
