Bryan Boilers Div. - Bryan Steam LLC products

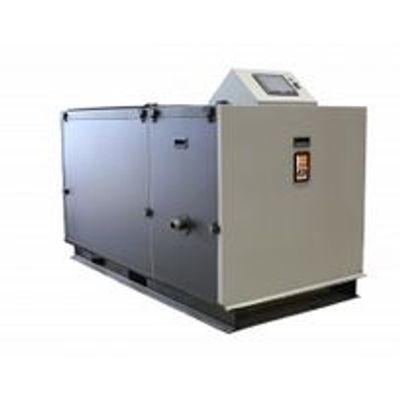

The BFIT Condensing Water Heater Series (BFITW) from Bryan Boilers delivers efficiency with unprecedented space saving innovation in a service friendly design. Available in 1000,1250, 1500,2000,2500,3000,3500 and 4000 MBH input levels, all models are 98% Thermal Efficiency. The 316L stainless steel heat exchanger features cavernous internal circuits with commercially sized tubes that minimize pressure drop and proactivery reduce pump sizing, saving on install and electrical operations.

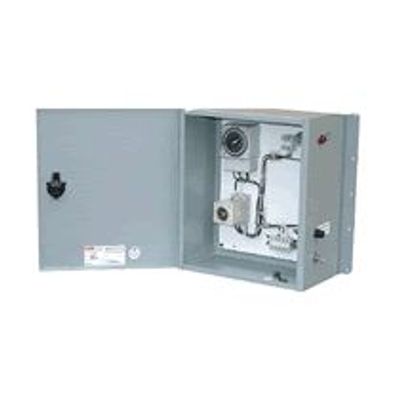

Bryan automatic blowdown system; assure that your boiler has regular blowdown on a preset schedule with these industrial boiler control products. the time and duration of the blowdown period is selectable. multiple sequences during a 24-hour period can be achieved if necessary. bryan can provide the boiler blowdown system in either manual or automatic designs.

The bryan `low profile` tray type deaerator is the industry leader in compact, space saving design. this series packs all of the same high performance design features as other bryan tray type deaerators. the combination of the bryan tray type deaerator and the industry`s first true 1` npsh pump has resulted in a true space saving unit. the overall height saved is unparalleled.

Bryan spray-scrubber type deaerators offer a competitive alternative for feedwater deaeration. the initial investment is lower, yet they offer comparable results, particularly where wide or rapid fluctuations in load are not anticipated. the spray type deaerator may also be advantageous in situations where headroom in the boiler room is restricted.

The Bryan tray type deaerator is unsurpassed in performance and reliability. These units are ASME Code pressurized units, and are guaranteed to deliver deaerated water at a maximum oxygen content of .005cc/l (7PPB) and zero measurable CO2. All internal surfaces that come in contact with undeaerated water are constructed of type 304L stainless steel for long life and low maintenance. Their long residence time makes them readily adaptable to all systems, even where wide load swings occur.

The Bryan tray type deaerator is unsurpassed in performance and reliability. These units are ASME Code pressurized units, and are guaranteed to deliver deaerated water at a maximum oxygen content of .005cc/l (7 PPB) and zero measurable CO2. All internal surfaces that come in contact with undeaerated water are constructed of type 304L stainless steel for long life and low maintenance.

The Bryan compact boiler feed system requires a minimal amount of boiler room space while providing many of the same rugged features as competitive stand-mounted feed systems.

The Bryan horizontal boiler feed systems are conventional stand-mounted feed systems that are completely packaged, but are also flexible to meet each customer’s specific needs.

Bryan hot water and steam boilers in dr, ab, rv and rw series are available as “lx” type with nox level of sub 30 ppm gas and reduced oil nox as standard. models to meet stricter emission levels down to 9 ppm are also available. sizes range from 350 mbh to 21,000 mbh (8 bhp to 500 bhp).
