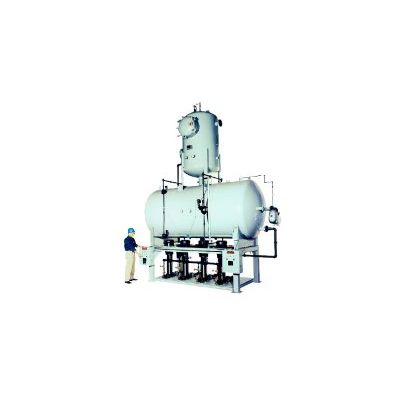

Bryan - Model DTA Series -Separable Tray Type Feedwater Deaerators
The Bryan tray type deaerator is unsurpassed in performance and reliability. These units are ASME Code pressurized units, and are guaranteed to deliver deaerated water at a maximum oxygen content of .005cc/l (7PPB) and zero measurable CO2. All internal surfaces that come in contact with undeaerated water are constructed of type 304L stainless steel for long life and low maintenance. Their long residence time makes them readily adaptable to all systems, even where wide load swings occur.
Most popular related searches
feed water deaerator
boiler feed water deaerator
boiler feed water
feed water
pump platform
pump control panel
carbon dioxide removal
water storage
water deaeration
boiler deaerator
A complete line of boiler feedpump and control packages is available making the Bryan tray deaerator a completely packaged unit ready for installation with the minimum amount of field assembly.
- Oxygen removal to .005 cc/l (7 PPB)
- CO2 removal to 0% measurable
- Reduce chemical costs
- Reduce boiler and system corrosion
- Pre-heat boiler feedwater
- Improve boiler efficiency
- Quick equipment payback, compared to chemical oxygen removal
- Constructed to ASME Section VIII, Division I for 50 PSIG
- Hinged tray access door
- Standard 10 minutes deaerated water storage
- Easily accessible manway in storage tank
- All internal surfaces that contact undeaerated water are constructed of type 304L stainless steel
- Internal direct contact vent condenser for minimum steam loss
- Structural steel stand/pump platform
- 2-stage deaeration
- Available as completely packaged unit including pumps and control panel
